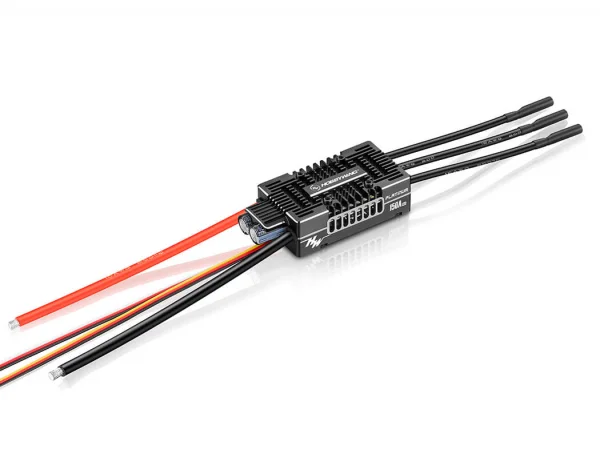

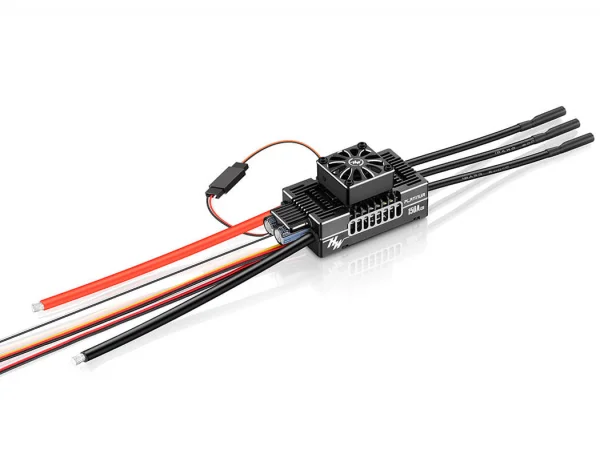

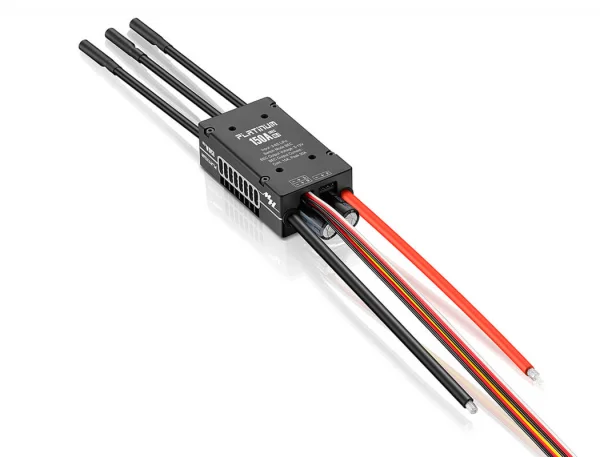

Hobbywing Platinum 150A V5.1 Speed Control

The Hobbywing Platinum 150A V5.1 Speed Control delivers high current handling and robust power management for demanding brushless applications. Designed for 3–8S LiPo systems, it pairs a 150A continuous (180A peak) power stage with a switch-mode BEC offering 5–12V output at 10A continuous (30A peak). Telemetry support and flexible programming options make it a capable choice for advanced helicopter and fixed-wing setups. Part number: HW30203501.

Key Specifications

• Type: Brushless, regular voltage
• Continuous/Peak Current: 150A / 180A
• Input Voltage: 3–8S LiPo
• BEC Output: Switch-mode 5–12V, 10A continuous (30A peak)
• Input Wires: Red 10AWG 150mm; Black 10AWG 150mm
• Output Wires: Black 12AWG 100mm ×3
• Input Connectors: None
• Motor Connectors: 4.0mm female gold connectors
• Programming: LCD Program Box supported; OTA Programmer supported; separate program port
• Not Supported: Programming via transmitter; LED Program Card; LED Program Box
• Firmware Upgrade: Supported
• Telemetry: Mikado VBar; Futaba S.Bus2; etc.
• Size: 83.2 × 37.1 × 22.5 mm (without fan)
• Weight: 150.4 g (with wires, no fan)

Programming & Telemetry

Configuration is available via a compatible LCD Program Box or OTA Programmer using the separate program port. Firmware upgrades are supported. Telemetry capability includes Mikado VBar and Futaba S.Bus2 (etc.), helping monitor key parameters with supported radio ecosystems.

Suggested Compatibility

• 520–580 class electric helicopters (main blade length 520–580 mm)
• Fixed-wing aircraft operating within the stated 3–8S and current limits

With high-current wiring (10AWG battery leads, 12AWG motor phase wires), 4.0mm female motor connectors and no factory-fitted input connector, the Platinum 150A V5.1 offers a solid foundation for powerful brushless builds where dependable control and a capable BEC are essential.
