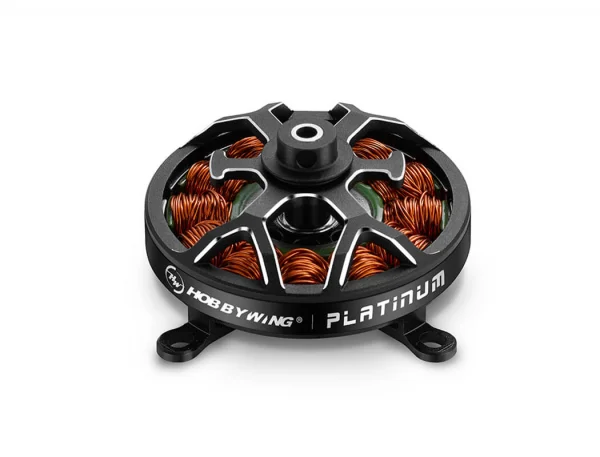

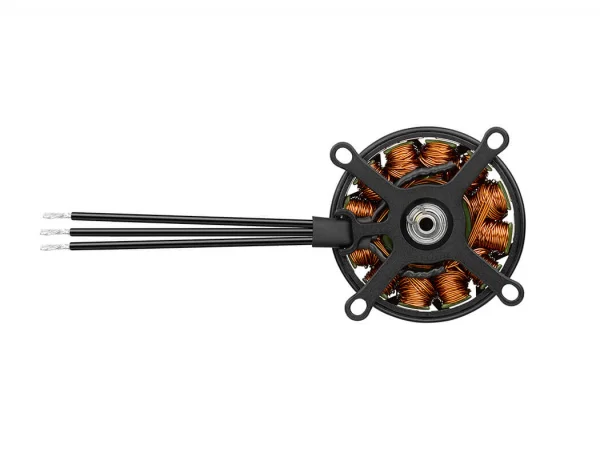

Hobbywing Platinum 2604SL 1500KV Motor (F3P)

The Hobbywing Platinum 2604SL 1500KV motor (HW30416252) is a compact, precision-balanced power unit designed for F3P indoor aerobatic models. Weighing just 21.5 g with wires and suited to 3S LiPo use, it delivers responsive performance with short-burst outputs up to 229 W and a maximum thrust of 877 g.

Engineered with a titanium alloy shaft, 630ZZ bearing and high-standard silicon steel stator, the 2604SL focuses on efficiency, smoothness and durability. Its fine dynamic balance (≤ 5 mg) supports precise throttle control for lightweight airframes where every gram matters.

Key Specifications

• KV: 1500
• Battery: 3S LiPo
• Motor size: Φ30 × H17.2 mm
• Stator size: Φ26 × H3.6 mm
• Stator process: High standard silicon steel sheet
• Slot & pole: 12N14P
• No-load current: 0.6 A at 12 V
• Maximum current: 19 A for 10 s
• Max power: 229 W for 10 s
• Max thrust: 877 g
• Resistance: 132 mΩ
• Dynamic balance: ≤ 5 mg
• Bearing: 630ZZ
• Shaft material: Titanium alloy
• Motor mounting dimensions: 4 × Φ2.1 @ D33
• Propeller: TP8038
• Wire size: Enamelled wire outlet
• Wire length: 45 mm
• Weight (with wire): 21.5 g
• Isolation test: 500 V AC high voltage resistance test

Suggested Compatibility

• Props: UP8338, TP8038
• ESC: Platinum 18A V5 F3P
• Battery: 3S LiPo
