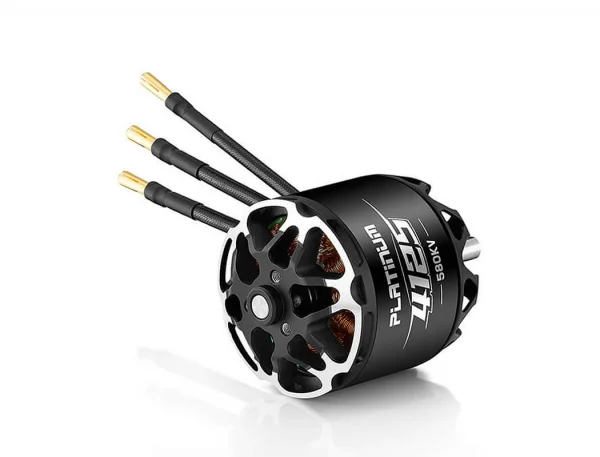

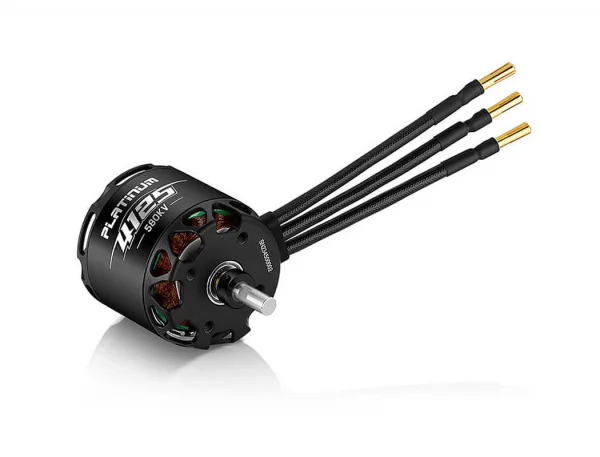

Hobbywing Platinum 4125Sl 580Kv Fixed Wing Motor

The Hobbywing Platinum 4125SL 580KV Fixed Wing Motor (HW30416052) delivers strong performance for fixed‑wing aircraft, pairing a 580KV rating with a 6S LiPo setup. Rated up to 2289W for 1 minute 17 seconds and a maximum thrust of 7.35kg, it offers substantial power within a compact, robust form factor.

Engineered with high‑standard silicon steel and high‑temperature resistant materials, the 4125SL is dynamically balanced to ≤10mg and uses 696ZZ bearings for smooth operation. Practical mounting dimensions and a 6mm axle make installation straightforward, while a 500V AC isolation test supports durability.

Specifications

• KV: 580
• Battery: LiPo 6S
• No‑load current: 3.9A @ 22.2V
• Maximum current (non‑hermetic ambient ≤ 25°): 119.7A for 1min 17s
• Max power: 2289W for 1min 17s
• Max thrust: 7.35kg
• Resistance: 9.5mΩ
• Motor size: Φ49.5 × 77.3mm
• Stator size: Φ40.6 × 25mm
• Stator process: High‑standard silicon steel; 180° high‑temperature resistance paint
• Enamelled wire: 200°
• Slot & pole: 12N14P
• Dynamic balance: ≤10mg
• Bearing: 696ZZ
• Motor axle diameter: Φ6mm
• Props mounting dimensions: Φ15mm, 3 × M3
• Motor mounting dimensions: Φ30mm, 4 × M4
• Wire type: Enamelled wire output
• Wire length: 90mm
• Weight (with wire): 370g
• Isolation test: 500V AC high‑voltage resistance test
• Part number: HW30416052

Recommended ESCs

• Platinum 120A V4
• Platinum 150A V5

Recommended Propellers

• 5S: 15x8E, 16x8E
• 6S: 14x6E, 14x7E, 15x6E
