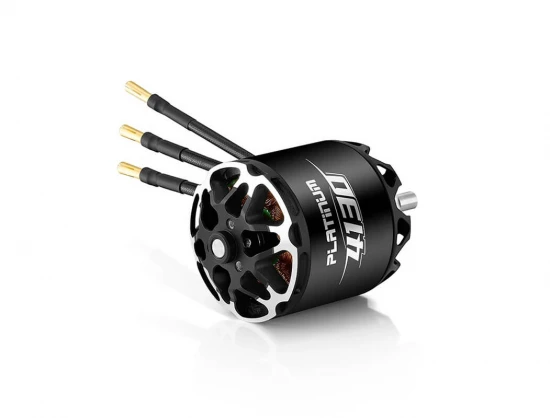

Hobbywing Platinum 4130SL 230Kv Fixed Wing Motor

Engineered for large electric fixed‑wing applications, the Hobbywing Platinum 4130SL 230Kv (HW30416100) couples 12S capability with robust construction and precise dynamic balancing for smooth, efficient running. Short‑burst output reaches 2678W with up to 9.06kg of thrust, providing ample performance headroom for demanding setups.

A high‑standard silicon steel stator and 200°C‑rated enamelled windings are paired with 696ZZ bearings and a 500V AC isolation test regime, reflecting attention to durability and reliability. Practical mounting patterns and prop choices simplify installation on suitably matched airframes.

Key Specifications

• KV: 230
• Battery: LiPo 12S
• No‑load current: 1.4A @ 44.4V
• Maximum current: 60.4A for 1 min 2 s (≤25°C ambient)
• Max power: 2678W for 1 min 2 s
• Max thrust: 9.06kg
• Resistance: 43mΩ
• Dynamic balance: ≤10mg

Construction & Dimensions

• Motor size: Φ49.5 × 82.3mm
• Stator size: Φ40.6 × 30mm
• Stator process: High‑standard silicon steel sheet, 180°C high‑temperature paint‑coat
• Enamelled wire: 200°C rated
• Slot & pole: 12N14P
• Bearing: 696ZZ
• Motor axle diameter: Φ6mm
• Wire: enamelled wire output, length 90mm
• Weight (with wire): 412g
• Isolation test: 500V AC high‑voltage resistance test

Mounting

• Propeller mounting: Φ15mm, 3 × M3
• Motor mounting: Φ30mm, 4 × M4

Recommended Pairings

• Recommended ESC: Platinum 130A V4, Platinum 180A V5
• Recommended propellers (12S): 16x6E, 16x8E, 17x6E, 17x8E

With its carefully balanced rotor, high‑temperature materials and verified insulation, the Platinum 4130SL is built for consistent performance and smooth operation in high‑demand fixed‑wing power systems.
