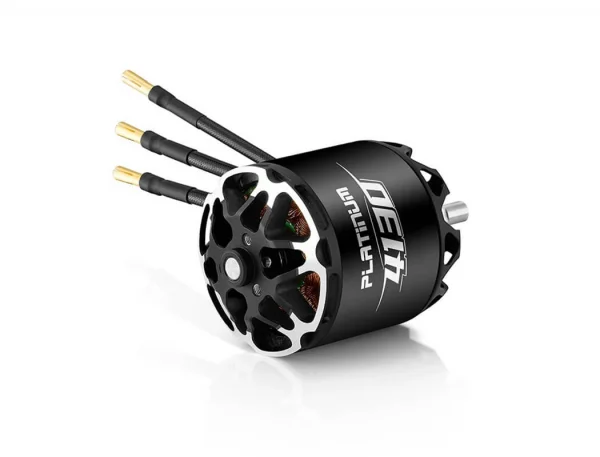

Hobbywing Platinum 4130SL 420Kv Fixed Wing Motor

The Hobbywing Platinum 4130SL 420KV is a robust, high-quality brushless motor designed for fixed-wing aircraft. Built to Hobbywing’s exacting standards, it combines smooth running with strong performance on 6S LiPo, making it suitable for demanding sport and scale applications. Precision balancing (≤10 mg) and shielded 696ZZ bearings support efficient, reliable operation, while a 6 mm motor axle and solid mounting options ensure straightforward installation.

Specifications

• KV: 420
• Battery: LiPo 6S
• No-load current: 2.4 A @ 22.2 V
• Maximum current (non-hermetic ambient temperature ≤ 25): 107.6 A for 1 min 4 s
• Maximum power: 2384 W for 1 min 4 s
• Maximum thrust: 8.73 kg
• Resistance: 14 mΩ
• Slot & pole: 12N14P
• Dynamic balance: ≤ 10 mg
• Bearing: 696ZZ
• Motor axle (shaft) diameter: Φ6 mm
• Isolation test: 500 V AC high-voltage resistance
• Wire: enamelled wire output, length 90 mm
• Weight (with wire): 420 g
• Motor size: Φ49.5 × 82.3 mm
• Stator size: Φ40.6 × 30 mm

Mounting Dimensions

• Propeller mounting: Φ15 mm – 3 × M3
• Motor mounting: Φ30 mm – 4 × M4

Recommended ESC and Propellers

• Recommended ESC: Platinum 120A V4, Platinum 150A V5
• Recommended propellers (6S): 16×8E, 16×10E, 17×8E, 18×8E

Engineered with high-standard silicon steel laminations and high-temperature enamelled windings, the Platinum 4130SL delivers dependable performance for fixed-wing models seeking a strong 6S power setup. Part number HW30416101.
