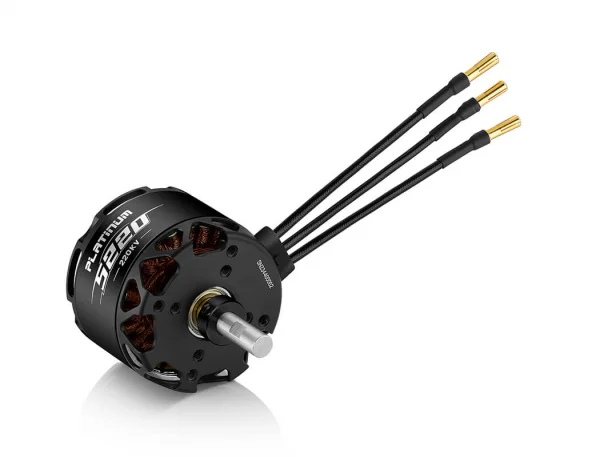

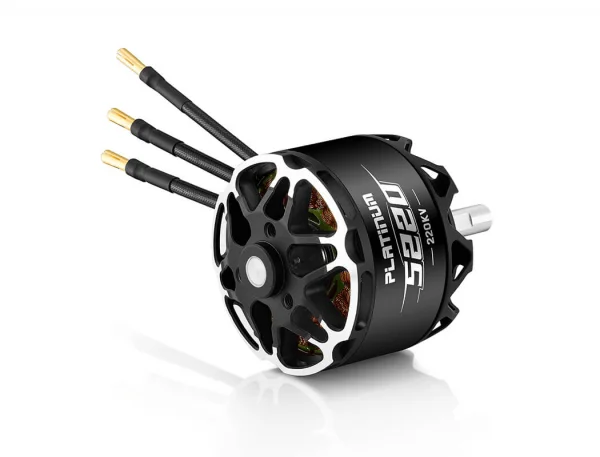

Hobbywing Platinum 5220SL 220Kv Fixed Wing Motor

The Hobbywing Platinum 5220SL 220Kv Fixed Wing Motor (HW30416150) delivers strong performance for large fixed‑wing applications, with smooth running thanks to precise dynamic balancing and quality bearings. Running on 10–12S LiPo, it offers a powerful output and robust construction to suit demanding flight profiles.

Key Specifications

• KV: 220
• Battery: LiPo 10–12S
• No‑load current: 3.5A @ 44.4V
• Maximum current: 86A
• Maximum power: 3828W
• Maximum thrust: 10.05kg
• Resistance: 27.5mΩ
• Slot & pole: 24N28P
• Dynamic balance: ≤10mg
• Bearings: 1560ZZ, 698ZZ
• Wire length: 100mm
• Motor weight (with wire): 430g
• Isolation test: 500V AC high‑voltage resistance

Dimensions & Mounting

• Motor size: Φ60.2 × 83.5mm
• Stator size: Φ51.7 × t20
• Motor axle (shaft) diameter: Φ8mm
• Propeller mounting: Φ22mm — 3 × M4
• Motor mounting: Φ30mm — 4 × M4; Φ44mm — 4 × M4

Construction

• High‑standard silicon steel stator with high‑temperature paint‑coat
• Enamelled wire output leads

Recommended ESC and Propellers

• Recommended ESC: Platinum 130A V4, Platinum 180A V5
• Recommended propellers (10S): 20×8E, 20×10E
• Recommended propellers (12S): 17×8E, 18×8E, 18×10E

With its 8mm shaft, careful balancing and solid component selection, the Hobbywing Platinum 5220SL provides reliable, efficient power delivery in fixed‑wing setups, with suggested compatibility for the recommended Hobbywing Platinum ESCs and propeller sizes above.
