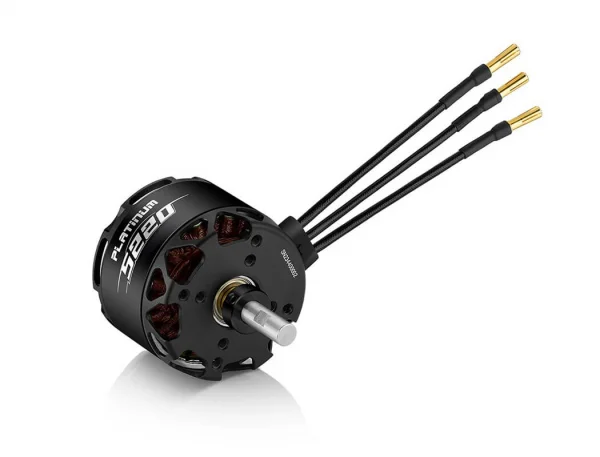

Hobbywing Platinum 5220SL 380Kv Fixed Wing Motor

The Hobbywing Platinum 5220SL 380Kv Fixed Wing Motor (part number HW30416151) is engineered for strong, consistent power delivery in electric fixed‑wing aircraft running 6–8S LiPo setups. With a rated maximum output of 4028W for 47 seconds and a maximum current of 136.3A for 47 seconds (in non‑hermetic ambient conditions ≤25°C), it provides substantial thrust up to 10.14kg while maintaining smooth operation and precise balance.

A carefully manufactured stator, tight dynamic balance (≤10mg), and robust bearings support efficient, reliable running. Practical mounting dimensions and propeller interface options make installation straightforward on suitably sized airframes.

Specifications

• KV: 380
• Battery: LiPo 6–8S
• No‑load current: 3.7A @ 22.2V
• Maximum current (non‑hermetic ambient ≤25°C): 136.3A / 47s
• Maximum power: 4028W / 47s
• Maximum thrust: 10.14kg
• Resistance: 11.3mΩ
• Motor size: Φ60.2 × 83.5mm
• Stator size: Φ51.7 × t20
• Stator process: High‑standard silicon steel sheet, 180°C high‑temperature resistant paint‑coat
• Enamelled wire rating: 200°C
• Slot & pole: 24N28P
• Dynamic balance: ≤10mg
• Bearings: 1560ZZ, 698ZZ
• Motor axle diameter: Φ8mm
• Isolation test: 500V AC high‑voltage resistance
• Wire type/length: Enamelled wire output, 100mm
• Weight (with wire): 435g
• Motor mounting dimensions: Φ30mm – 4 × M4; Φ44mm – 4 × M4
• Propeller mounting dimensions: Φ22mm – 3 × M4

Recommended ESC & Propellers

• Recommended ESC: Platinum 120A V4; Platinum 150A V5
• Recommended propellers (electric):
  • 6S: 18×10E, 19×10E, 20×10E
  • 8S: 16×10E, 17×10E, 18×10E

This Platinum 5220SL 380Kv motor by Hobbywing combines precise balance, durable construction, and high output for fixed‑wing applications where dependable performance and clear installation dimensions are essential.
