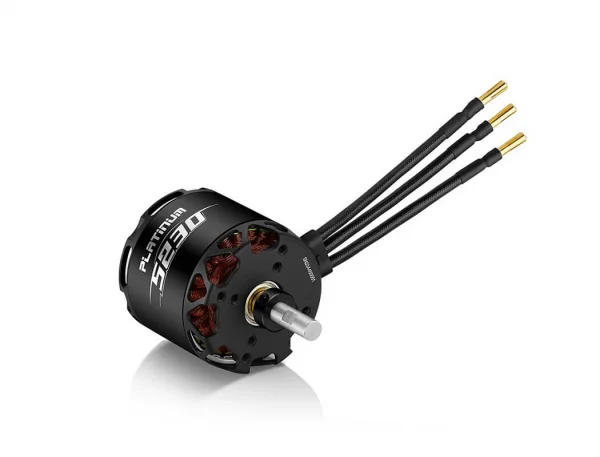

Hobbywing Platinum 5230SL 190Kv Fixed Wing Motor

The Hobbywing Platinum 5230SL 190Kv Fixed Wing Motor (HW30416200) delivers high torque and smooth power for large electric fixed‑wing aircraft running 10–12S LiPo setups. Built to Hobbywing's exacting standards, it combines precise dynamic balance with robust construction and an 8mm shaft for confident propulsion in demanding applications.

Specifications

• KV: 190
• Battery (LiPo): 10–12S
• No‑load Current: 3.0A @ 44.4V
• Maximum Current (non‑hermetic ambient ≤ 25): 112.5A/42s
• Max Power: 4985W/42s
• Max Thrust: 14.99kg
• Resistance: 22mΩ
• Motor Size: Φ60.2 × 93.5mm
• Stator Size: Φ51.7 × 30
• Slot & Pole: 24N28P
• Dynamic Balance: ≤ 10mg
• Bearings: 1560ZZ, 698ZZ
• Motor Axle (Shaft) Diameter: Φ8mm
• Propeller Mounting Dimensions: Φ22mm – 3 × M4
• Motor Mounting Dimensions: Φ30mm – 4 × M4; Φ44mm – 4 × M4
• Isolation Test: 500V AC high‑voltage resistance test
• Wire Type: Enamelled wire output
• Wire Length: 100mm
• Weight (with wire): 582g

Suggested Compatibility

• ESCs: Hobbywing Platinum 130A V4 or Platinum 180A V5 (manufacturer recommended; suggested compatibility)

Suggested Propellers

• 10S: 20×10E, 22×10E, 22×12E
• 12S: 20×8E, 20×10E, 22×10E

With precise balancing (≤ 10mg) and quality bearings, the Platinum 5230SL is engineered for smooth, efficient running. The multiple mounting patterns (Φ30mm and Φ44mm, both 4 × M4) and 8mm shaft offer versatile installation options in suitable airframes. Pair with the suggested Hobbywing Platinum series ESCs and appropriate propellers for a strong and reliable power system on 10–12S.
