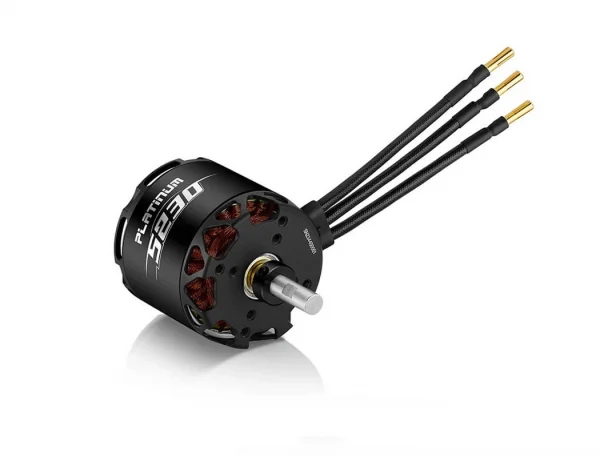

Hobbywing Platinum 5230SL 220Kv Fixed Wing Motor

The Hobbywing Platinum 5230SL 220Kv Fixed Wing Motor (part number HW30416201) delivers efficient, high-torque performance for advanced fixed‑wing applications on 10–12S LiPo power. With a peak output of 5423W for 45 seconds and up to 14.34kg of thrust, it provides strong, controllable power for large airframes while maintaining excellent balance and durability.

Engineered with a high‑standard silicon steel stator using a 180°C paint coat and 200°C enamelled wire, the 5230SL is built for thermal resilience and reliability. Precision dynamic balancing (≤10mg), quality bearings (1560ZZ, 698ZZ) and a 500V AC isolation test underline its refined construction. The motor features a robust φ8mm axle, versatile mounting patterns, and a practical 100mm wire length, all in a 579g package to simplify installation in larger models.

Practical mounting options include φ30mm and φ44mm patterns (both 4 × M4), with a prop hub at φ22mm (3 × M4). Hobbywing recommends pairing with Platinum 130A V4 or Platinum 180A V5 ESCs and using the specified electric propellers for 10S and 12S setups to match performance expectations.

Specifications

• KV rating: 220Kv


• Battery: LiPo 10–12S


• Max current (non-hermetic, ambient ≤ 25°C): 122.3A for 45s


• Max power: 5423W for 45s


• Max thrust: 14.34kg


• No-load current: 3.7A @ 44.4V


• Resistance: 17.2mΩ


• Motor size: φ60.2 × 93.5mm


• Stator size: φ51.7 × t30


• Slot & pole: 24N28P


• Dynamic balance: ≤ 10mg


• Bearings: 1560ZZ, 698ZZ


• Motor axle diameter: φ8mm


• Isolation test: 500V AC high voltage resistance test


• Stator process: High-standard silicon steel sheet; 180°C high-temperature paint coat


• Enamelled wire: 200°C


• Wire output: Enamelled wire, length 100mm


• Weight (with wire): 579g


• Motor mounting dimensions: φ30mm – 4 × M4; φ44mm – 4 × M4


• Prop mounting dimensions: φ22mm – 3 × M4

Recommended Pairings

• Recommended ESC: Hobbywing Platinum 130A V4; Hobbywing Platinum 180A V5


• Recommended propellers:
  10S: 20x10E, 22x10E
  12S: 18x10E, 19x10E, 20x10E
