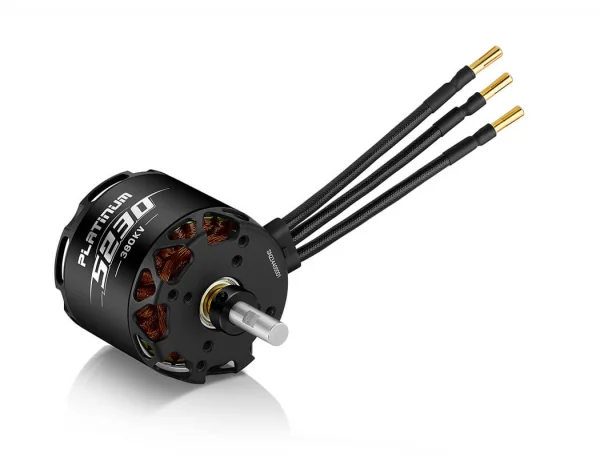

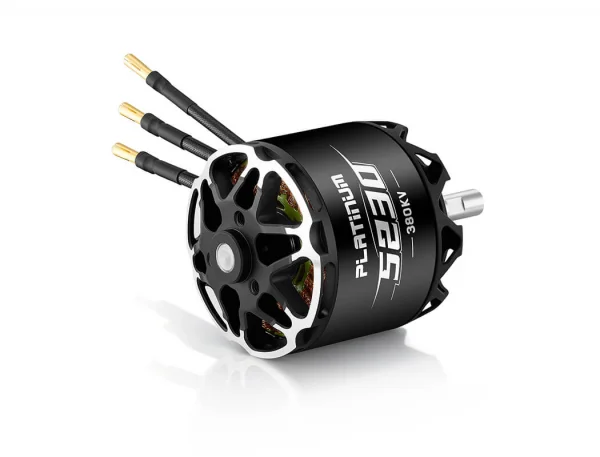

Hobbywing Platinum 5230Sl 380Kv Fixed Wing Motor

The Hobbywing Platinum 5230Sl 380Kv Fixed Wing Motor (HW30416202) is engineered for powerful fixed-wing applications on 6–8S LiPo setups. Built around a high-standard silicon steel stator with a 180°C paint coating and 200°C enamelled windings, it combines robust construction with precise dynamic balancing (≤10 mg). Delivering up to 4790 W for 1 min 22 s and a maximum thrust of 11.49 kg, this motor offers strong performance headroom along with dependable hardware such as an 8 mm shaft and dual bearings. Each unit undergoes a 500 V AC isolation test for added assurance.

Key Specifications

• KV: 380
• Battery: LiPo 6–8S
• No-load current: 4.0 A @ 22.2 V
• Maximum current (non-hermetic ambient ≤25°C): 162 A for 1 min 22 s
• Maximum power: 4790 W for 1 min 22 s
• Maximum thrust: 11.49 kg
• Resistance: 7.8 mΩ
• Slot & pole: 24N28P
• Dynamic balance: ≤10 mg
• Bearings: 1560ZZ, 698ZZ
• Motor axle diameter: Φ8 mm
• Wire: enamelled wire output; length 100 mm
• Isolation test: 500 V AC high-voltage resistance
• Weight (with wire): 590 g

Dimensions & Mounting

• Motor size: Φ60.2 × 93.5 mm
• Stator size: Φ51.7 × 30 mm
• Stator process: high-standard silicon steel sheet, 180°C paint coating
• Propeller mounting dimensions: Φ22 mm, 3 × M4
• Motor mounting dimensions: Φ30 mm, 4 × M4; Φ44 mm, 4 × M4

Recommended Setup

• Recommended ESC: Hobbywing Platinum 120A V4; Hobbywing Platinum 150A V5
• Recommended propellers:
  • 6S: 19x10E, 20x10E, 22x10E
  • 8S: 17x10E, 18x10E, 18x12E
