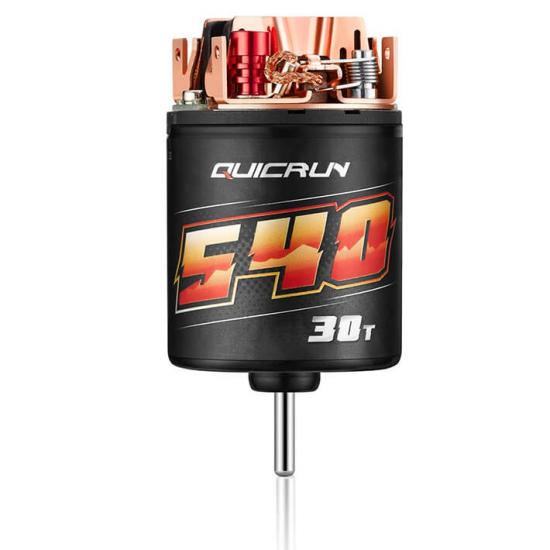

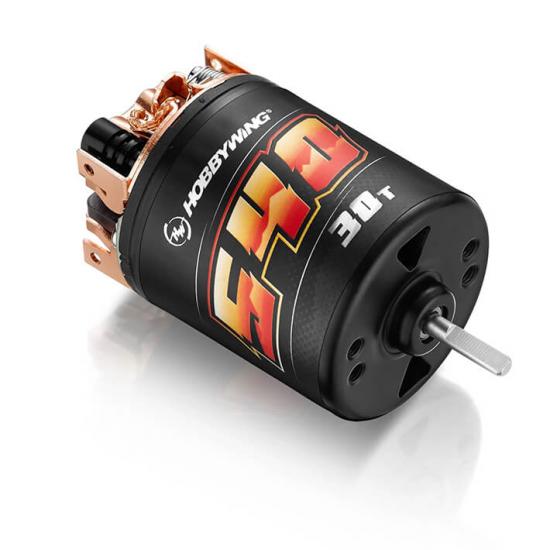

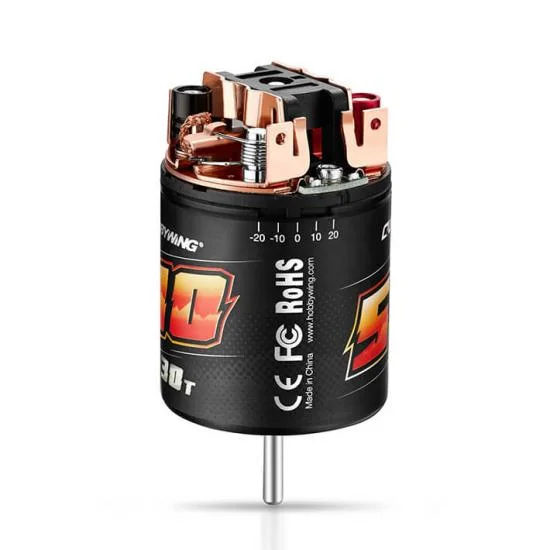

Hobbywing Quicrun Brushed 540 30T Motor

The Hobbywing Quicrun Brushed 540 30T Motor (HW30404313) is a dependable 3-slot, 30-turn brushed motor for 1/10 scale RC use. Built with specialised carbon brushes and a zero-cogging torque design, it offers smooth throttle response, excellent efficiency and precise control. Adjustable mechanical timing and a modular construction make tuning, servicing and cleaning straightforward.

Features

• Specialised carbon brushes for extended life
• Zero-cogging torque design
• Excellent efficiency
• Outstanding response and control
• Adjustable mechanical timing
• Modular design for easy service and cleaning

Specifications

• Model: Quicrun Brushed 540
• Part Number: HW30404313
• Slots: 3
• Turns: 30T
• RPM @ 7.4V: 14,000
• Input Voltage: 12.6V
• Motor Size (Diameter x Length): 36mm x 53mm (1.42in x 2.09in)
• Shaft Diameter x Length: 3.175mm x 16.5mm (0.125in x 0.65in)
• Weight: 168g

Suggested Compatibility

• 1/10 on-road
• 1/10 buggy
• 1/10 crawler
• 1/10 2WD truck
