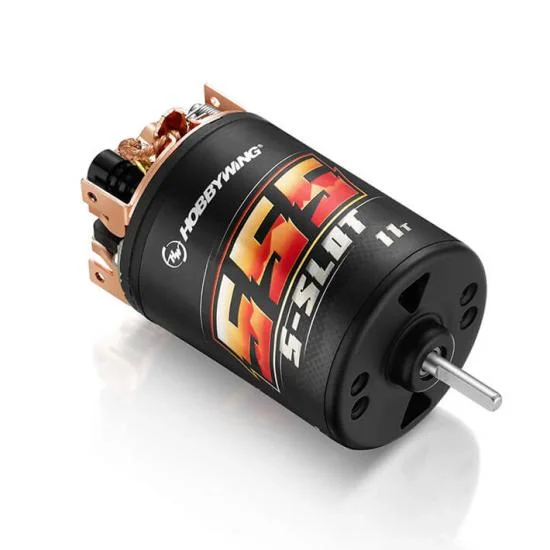

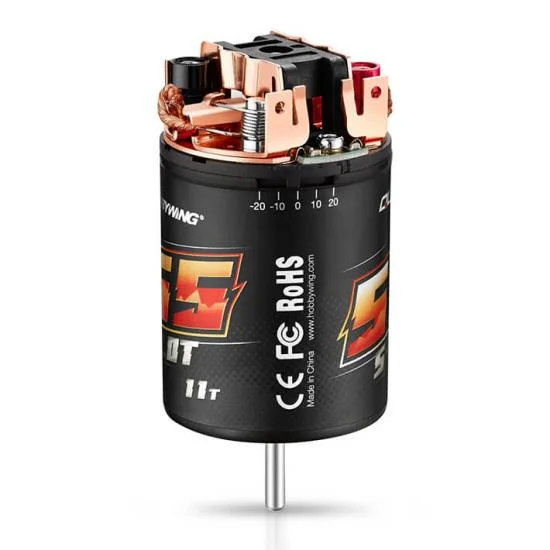

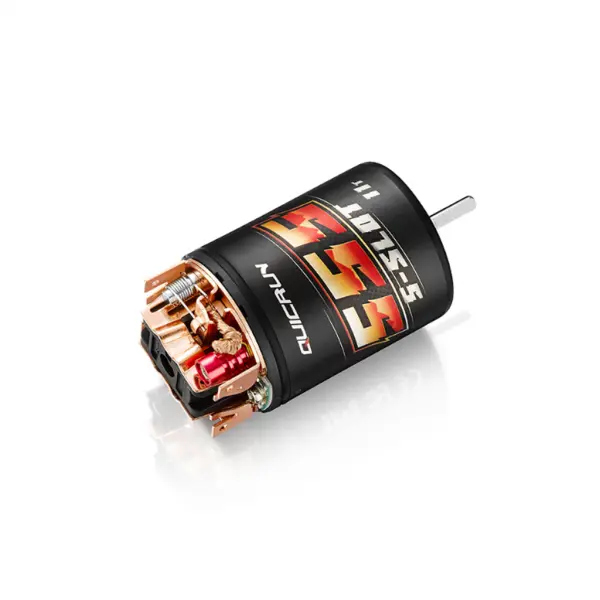

Hobbywing Quicrun Brushed 555 11T Motor

The Hobbywing Quicrun Brushed 555 11T Motor (HW30404315) delivers smooth, controllable power for 1/10-scale applications. Featuring specialised carbon brushes for extended life, a zero-cogging torque design and adjustable mechanical timing, it offers excellent efficiency, response and feel. Its modular construction makes routine service and cleaning straightforward.

Features

• Specialised carbon brushes for extended life
• Zero-cogging torque design
• Excellent efficiency
• Outstanding response and control
• Adjustable mechanical timing
• Modular design for easy service and cleaning

Specifications

• Model: Quicrun Brushed 555
• Part number: HW30404315
• Slot: 5
• Turns: 11T
• RPM @ 7.4V: 17,000
• Input voltage: 10 V
• Diameter: 36 mm (1.42 in)
• Length: 58.5 mm (2.30 in)
• Shaft diameter: 3.175 mm (0.125 in)
• Shaft length: 16.5 mm (0.65 in)
• Weight: 193 g

Suggested Compatibility

• 1/10 crawler
• 1/10 short course truck
• 1/10 monster truck
