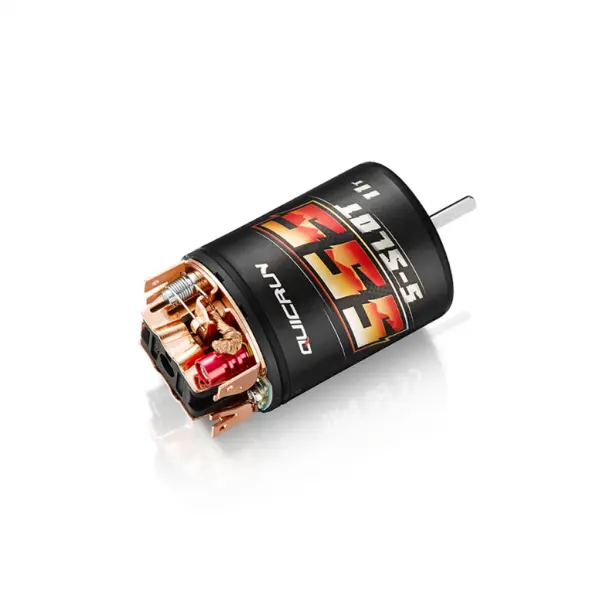

Hobbywing Quicrun Brushed 555 13T Motor

The Hobbywing Quicrun Brushed 555 13T Motor (HW30404316) is a robust 5-slot brushed motor designed for smooth, controlled power delivery. Its zero-cogging torque design, excellent efficiency and responsive control make it a strong choice for a wide range of 1/10 applications. Adjustable mechanical timing and a modular construction simplify fine-tuning, servicing and cleaning. Rated at 14,000 RPM on 7.4V with a 12.6V input voltage limit, it features a 36 mm diameter can, 58.5 mm length and a 3.175 mm shaft.

Features

• Specialized carbon brushed for extended life
• Zero-cogging torque design
• Excellent efficiency
• Outstanding response and control
• Adjustable mechanical timing of the motor
• Modular design for easy service and cleaning

Specifications

• Model: QUICRUN Brushed 555
• Part Number: HW30404316
• Slot: 5
• Turns: 13T
• RPM @ 7.4V: 14,000
• Input Voltage (max): 12.6V
• Diameter x Length: 36 mm x 58.5 mm
• Shaft Diameter x Length: 3.175 mm x 16.5 mm
• Weight: 193 g

Suggested Compatibility

• 1/10 crawler
• 1/10 short course truck
• 1/10 monster truck
