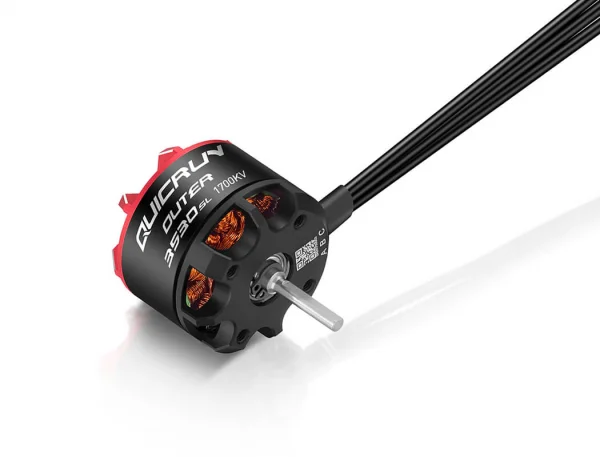

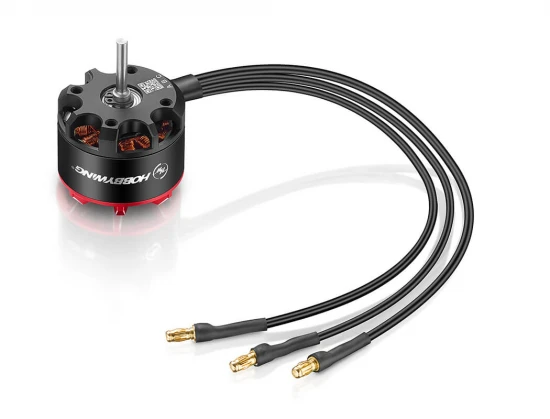

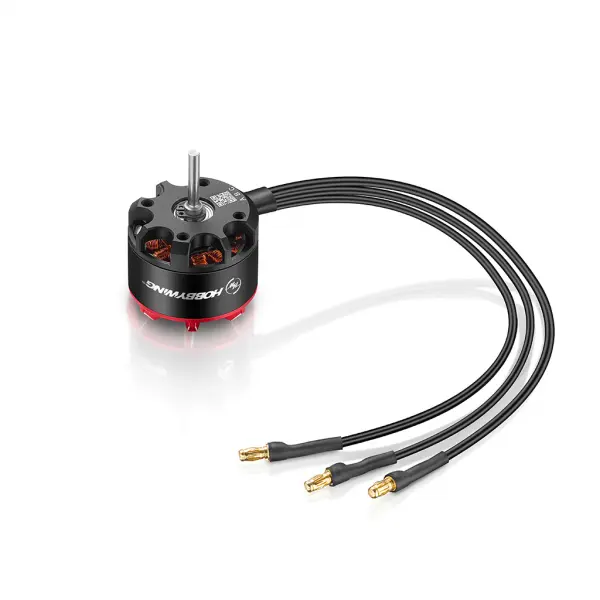

Hobbywing Quicrun Outer 3530SL 1700Kv Black

The Hobbywing QuicRun Outer 3530SL 1700KV Black (HW30404851) is a compact, sensorless brushless motor focused on efficient, quiet running and smooth control. Supporting 2–4S LiPo and featuring a 14‑pole layout, it is built in a 35 x 30 mm can with a 3.175 mm shaft and 102 g weight, making it a practical choice for scale builds and crawler setups (suggested compatibility).

Features

• The system has high efficiency, less heat, and effectively extends the run time; and the motor runs more quietly and softer.
• Excellent water resistance and dustproof performance, capable of running in various conditions.
• Intelligent torque output and speed closed-loop control, making the control handy.

Specifications

• Scale: 1/10 and 1/12
• Motor Type: Brushless, sensorless
• Pole Count: 14
• KV Rating: 1700KV
• LiPo Cells: 2–4S
• No-load Current: 4A
• Outer Diameter: 35 mm
• Length: 30 mm
• Shaft Diameter: 3.175 mm
• Weight: 102 g

Suggested Compatibility

• 1/10 and 1/12 crawlers (suggested compatibility)
• Hobbywing QuicRun WP 10BL80 Crawler ESC (suggested pairing)
