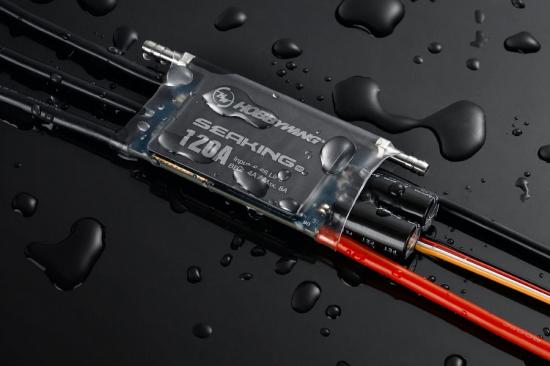

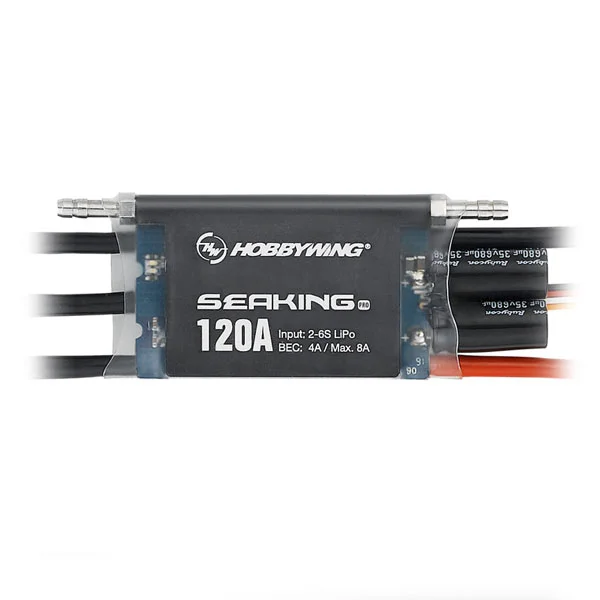

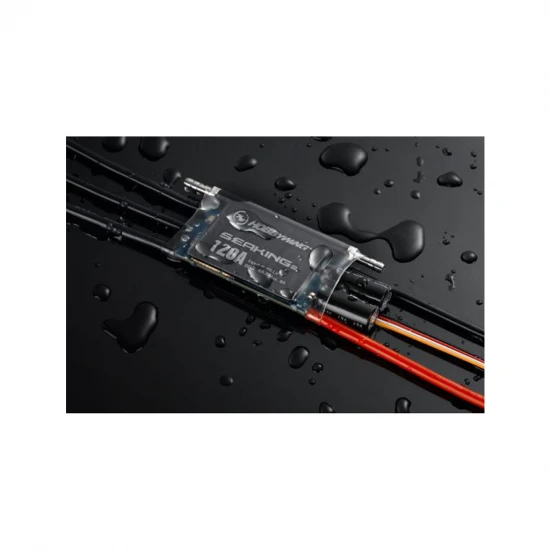

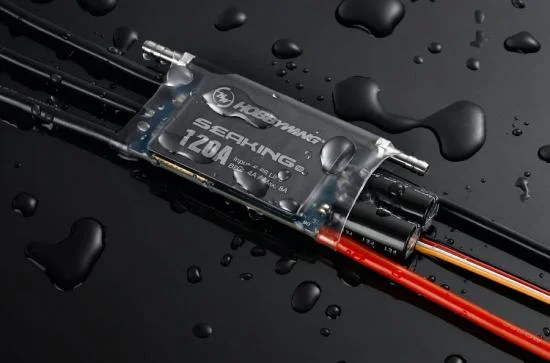

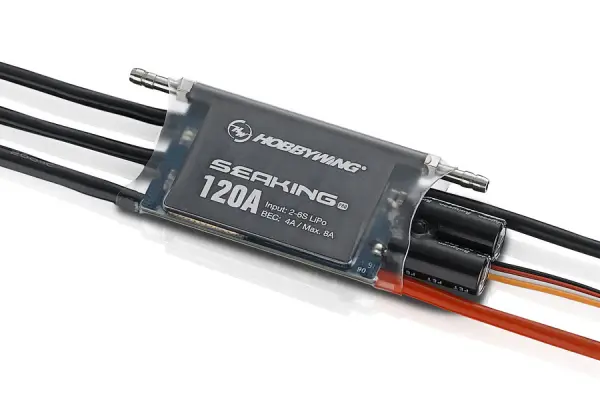

Hobbywing Seaking Pro 120A Speed Control
Brand: Hobbywing
Part No: HW30302361
In Stock: Usually ships same day
The Hobbywing Seaking Pro 120A Speed Control (HW30302361) is a brushless marine ESC engineered for competitive RC boats. It introduces an innovative turbo timing function for instant boost off the line and features reliable, low-resistance MOSFET hardware paired with advanced protective software. Efficient water cooling combined with Hobbywing’s patented heat-conductive copper bar cover helps maintain stable temperatures during hard runs. With an IP55 waterproof rating and a lightweight 87.5 g design, it suits demanding ECO/MONO1 racing classes.
An adjustable 6V/7.4V switch-mode BEC supports modern high-voltage servos, while extensive protections (including low-voltage cutoff, thermal protection and throttle signal loss protection) enhance durability. Setup is flexible too: tune parameters using a compatible LCD Program Box or update and adjust wirelessly with a supported WiFi Module.
Key Features
- Competition-focused design; especially applicable to ECO/MONO1
- Innovative turbo timing function for instant boost
- High durability and reliability with advanced protections
- IP55 splash-proof/waterproof construction
- Adjustable high-voltage switch-mode BEC (6V/7.4V)
- Capacitor thermal protection
- Efficient cooling with patented heat-conductive copper bar and water-cooling module
- Programming and firmware upgrades via LCD Program Box or WiFi Module
- Regular firmware updates free of charge
Specifications
- Type: Brushless (BL)
- Waterproof Rating: IP55
- Continuous/Peak Current: 120A / 760A
- Input: 2–6S LiPo or 6–18 cell NiMH
- BEC Output: Switch-mode 6V/7.4V, 4A
- Input Wires: Red 12AWG 200mm x1 / Black 12AWG 200mm x1
- Output Wires: Black 12AWG 150mm x3
- Input Connectors: None
- Motor Connectors: 4.0 mm female gold connectors
- Programming: LCD Program Box supported; WiFi Module supported
- Dimensions: 96.6 x 37.9 x 10.3 mm
- Water Cooling Pipe (ID/OD): 2.0 / 5.5 mm
- Weight: 87.5 g
Programming And Updates
- Abundant programmable parameters for varied competition conditions
- Wireless programming/upgrading with a supported WiFi Module
- Regular firmware updates available free of charge
Secured by Stripe
HOBBYWING SEAKING PRO 120A SPEED CONTROLLER
The world’s first marine ESC to have implemented the turbo timing function which will give the user the edge over the competition with instant turbo boost. The light-weight of the Pro 120A is designed to meet the users’ requirements of a light weight product for all marine competition which weight is a factor of speed and endurance. The core program for top-level competition products guarantees the user first-class control and “abundant” programmable parameter items for different competition environments. (* The ESC is especially applicable to ECO/MONO1)
The built-in switch mode BEC with a maximum output of 8A and adjustable voltage of 6V/7.4V make the ESC compatible with various high voltage servos.
Reliable hardware (i.e. MOSFETs with extremely low internal resistance) combined with advanced software (features low-voltage cutoff protection, thermal protection, throttle signal loss protection, and etc) guarantees the durability and reliability of the ESC and relevant electronic devices.

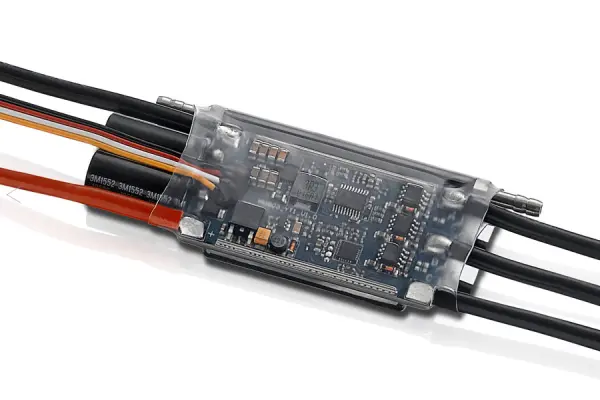

The Hobbywing patented heat-conductive copper bar cover on the power board of the ESC combined with the water cooling module efficiently and effectively transfers heat to the outside thus keeping your ESC as cool as possible.
Hobbywing Seaking Pro 120A ESC Features:
- Competition Design
- Splash-proof
- High Voltage Built-in BEC
- Innovative Turbo Function
- High Durability & Reliability
- Capacitor Thermal Protection
- Programming/Upgrading Wirelessly
- Efficient Cooling System
- Regular Firmware Updates Free of Charge
Spec Check:
- Brushed/Brushless: BL
- Waterproof: Waterproof (IP55)
- Cont./Peak Current: 120A/760A
- Input Voltage: 2-6S Lipo/6-18 Cell NiMH
- BEC Output: Switch Mode: 6V/7.4V,4A
- Input Wires: Red-12AWG-200mm*1/Black-12AWG-200mm*1
- Output Wires: Black-12AWG-150mm*3
- Input Connectors: No
- Output Connectors: 4.0mm Gold Connectors (Female)
- LCD Program Box: Supported
- WiFi Module: Supported
- Size: 96.6x37.9x10.3mm
- I.D./O.D. of the Water Cooling Pipe: ?2.0/5.5 mm
- Weight: 87.5g
Key Info:
- Brand: Hobbywing
- Part No: HW30302361
- Barcode: 6938994403153
