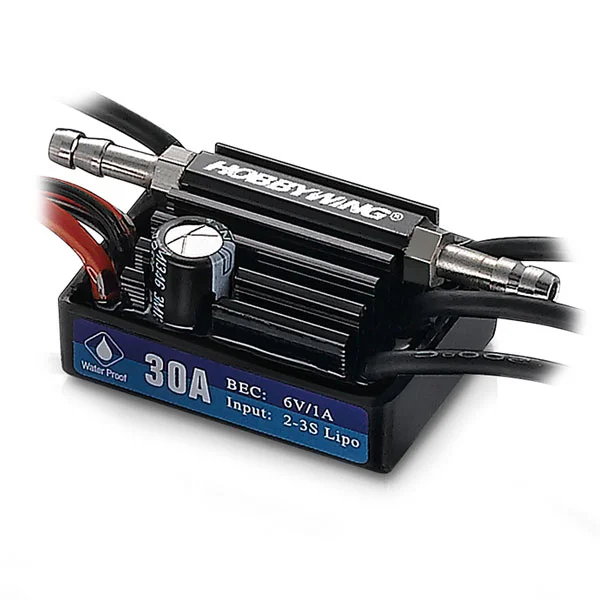

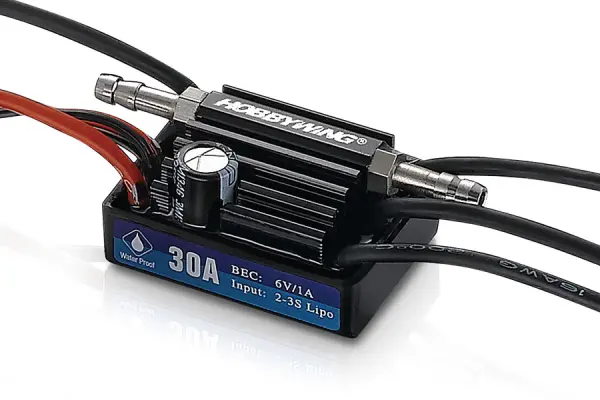

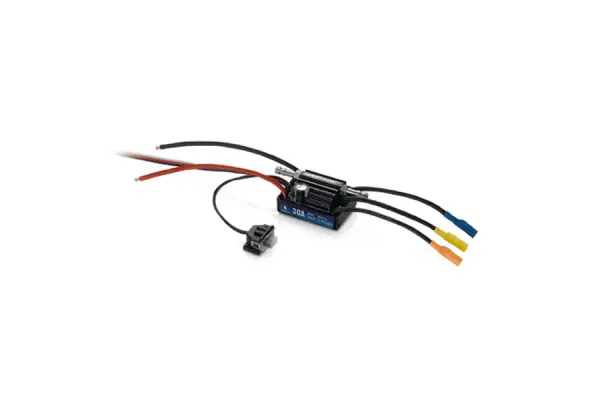

Hobbywing Seaking V3 30A Speed Control (HW30302060)
Brand: Hobbywing
Part No: HW30302060
In Stock: Usually ships same day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the Hobbywing Seaking V3 30A Speed Control
Description
The Hobbywing Seaking V3 30A Speed Control (HW30302060) is a waterproof brushless marine ESC designed for dependable performance in compact RC boats. Its heat-conductive copper bar cover transfers heat to an integrated CNC-machined aluminium, water-cooled housing for efficient thermal management, while the built-in 6V/1A BEC supports onboard electronics. Suggested compatibility: boats under 45 cm, running 2–3S LiPo or 5–9 cell NiMH power.
Protections include low-voltage cutoff, thermal protection and throttle signal loss protection, helping safeguard your system on the water.
Key Features
- Special Algorithm Design
- Built-in BEC
- Waterproof Design
- Separate PRG/FAN Port
- Reliability and performance
- Efficient Cooling system
Specifications
- Brushed/Brushless: Brushless
- Waterproof: Yes
- Cont./Peak Current: 30A/180A
- Input: 2-3S LiPo/5-9 Cells NiMH
- BEC Output: Linear Mode: 6V/1A
- Input Wires: Red-14AWG-100mm×1, Black-14AWG-100mm×1
- Output Wires: Black-16AWG-75mm×3
- Input Connectors: No
- Output Connectors: No
- Size: 54.5×28.3×18.7mm
- I.D./O.D. of the Water Cooling Pipe: ?2.0/4.0 mm
- Weight: 41g
- Boat Length: < 45cm
Secured by Stripe
Hobbywing Seaking V3 30A Speed Control Manuals & Guides
Specifications
Built with high-quality components and coupled with cutting-edge firmware, the Seaking V3 is featured by unmatched performance and reliability. Multiple safety adjustable options are in use, with the implementation of the low-voltage cutoff protection, thermal protection and throttle signal loss protection.
The Hobbywing patented heat-conductive copper bar cover on the power board of the Seaking V3 can efficiently and effectively transfer heat to the integrated CNC machined billet aluminium water cooled heat sink housing thus keeping your ESC as cool as possible.
HobbyWing Seaking V3 Series Features:
- Special Algorithm Design
- Built-in BEC
- Waterproof Design
- Separate PRG/FAN Port
- Reliability and performance
- Efficient Cooling system
Spec Check:
- Brushed/Brushless: Brushless
- Waterproof: Yes
- Cont./Peak Current: 30A/180A
- Input: 2-3S LiPo/5-9 Cells NiMH
- BEC Output: Linear Mode:6V/1A
- Input Wires: Red-14AWG-100mm*1, Black-14AWG-100mm*1
- Output Wires: Black-16AWG-75mm*3
- Input Connectors: No
- Output Connectors: No
- Size: 54.5x28.3x18.7mm
- I.D./O.D. of the Water Cooling Pipe: ?2.0/4.0 mm
- Weight: 41g
- Boat Length: < 45cm
Key Info:
- Brand: Hobbywing
- Part No: HW30302060
- Barcode: 6938994403092
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
I believe these are brushless only.
5510135 would work nicely with a brushed motor
For more in depth queries, please contact us.
