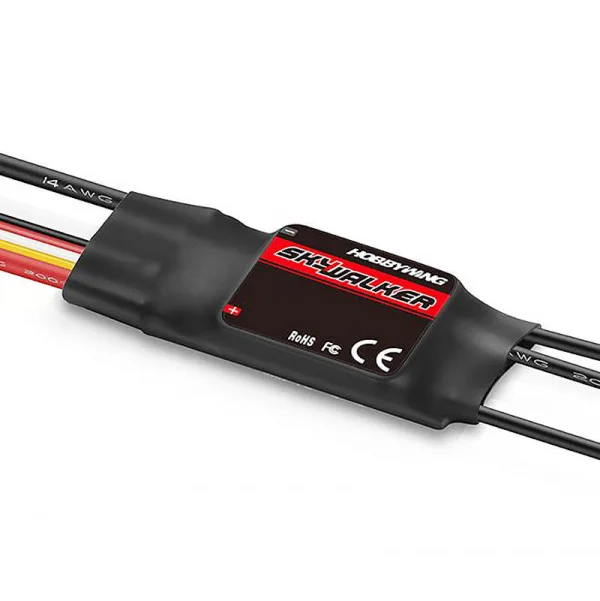

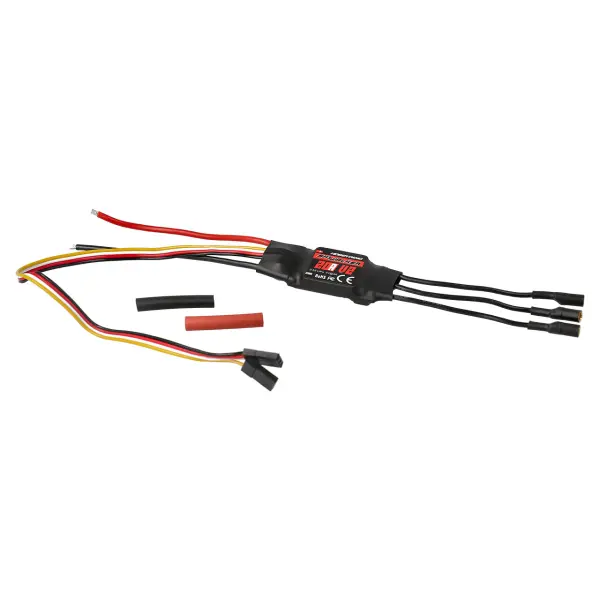

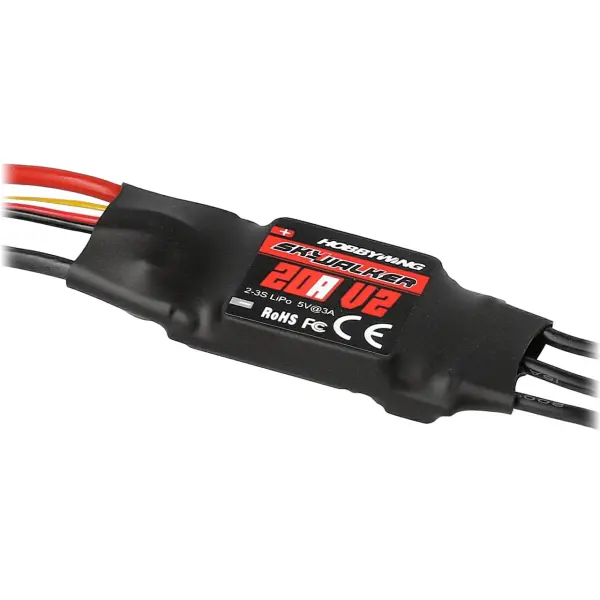

Hobbywing Skywalker 20A V2 Speed Controller
Brand: Hobbywing
Part No: HW30205200
In Stock: Usually ships same day
The Hobbywing Skywalker 20A V2 Speed Controller (HW30205200) brings a more powerful V2 update to the trusted Skywalker line, while staying affordable. Developed specifically for RC aeroplanes, it combines a fast 32‑bit microprocessor (up to 96 MHz) with DEO technology for responsive throttle control and efficient running. Extensive programming options and multiple protections make it well suited to RTF models and to pilots assembling their first aircraft, all backed by Hobbywing’s quality assurance.
Key Features
- Suggested compatibility with various brushless motors
- Integrated 32‑bit microprocessor (up to 96 MHz)
- DEO (Driving Efficiency Optimisation) to enhance throttle response and help reduce controller temperature
- Programmable braking modes to help reduce landing distance
- Protections: low‑voltage shutdown, overheat protection and throttle signal loss protection
- Easy programming via LED Program Box (HW30501003) or transmitter
Programmable Parameters
- Brake type and brake force
- Cut‑off voltage and LiPo cell count setting
- Start‑up and search mode
- Timing and active freewheeling
Specifications
- Continuous current: 20A
- Peak current: 40A (up to 10 seconds)
- Input voltage: 2–3S
- BEC: 3A / 5V (linear mode)
- Dimensions: 45 × 23 × 8 mm
- Weight: 19 g
Secured by Stripe
The Skywalker series is back and in its version 2 it is now even more powerful and still just as affordable as its predecessor. The Skywalker ESCs are mainly developed specifically for RC airplanes and their properties offer everything a pilot's heart desires. Among them the built-in 32-bit microprocessor with a running frequency of up to 96 MHz and programming options that are in no way inferior to the predecessor. This includes e.g. brake type, brake force, cut-off voltage, the setting of the LiPo cells, start-up and search mode and of course timing and active freewheeling.
Of course, these controllers are also subject to the strict quality assurance by HobbyWing to ensure maximum safety and fun. The SkyWalker ESCs are particularly suitable for RTF models and beginners who are putting together their first model.
Features- Compatible with various brushless motors
- Integrated 32bit microprocessor
- Equipped with DEO (Driving Efficiency Optimization) technology to improve throttle response and reduce controller temperature
- Effectively reduce the plane's landing distance with the programmable braking modes
- Various protections such as low voltage shutdown, overheat protection and throttle signal loss protection
- Easily programmable with the LED programm box (HW30501003) or the transmitter
Cont. Current: 20A
Peak Current: 40A up to 10sec
Input Voltage: 2-3S
BEC: 3A / 5V (Linear Mode)
Dimensions: 45x23x8mm
Weight: 19g
Key Info:
- Brand: Hobbywing
- Part No: HW30205200
- Barcode: 6938994423045
