Hobbywing Skywalker 2312Sl 1250Kv Black G1 Outrunner Motor
Brand: Hobbywing
Part No: HW30415003
Shadow Stock: Usually ships next day

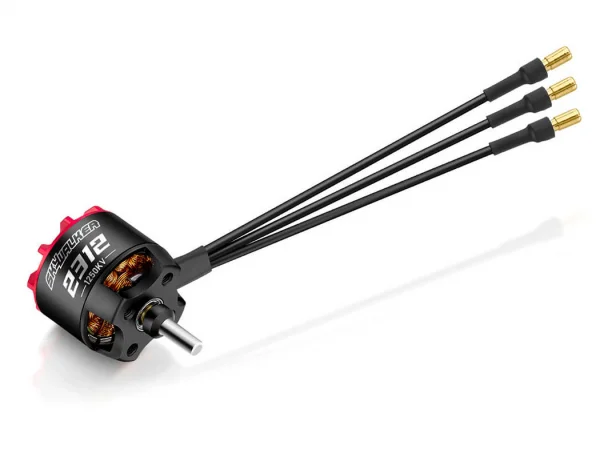

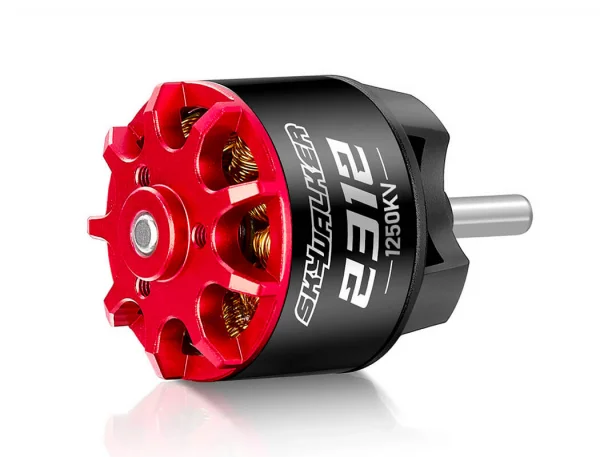

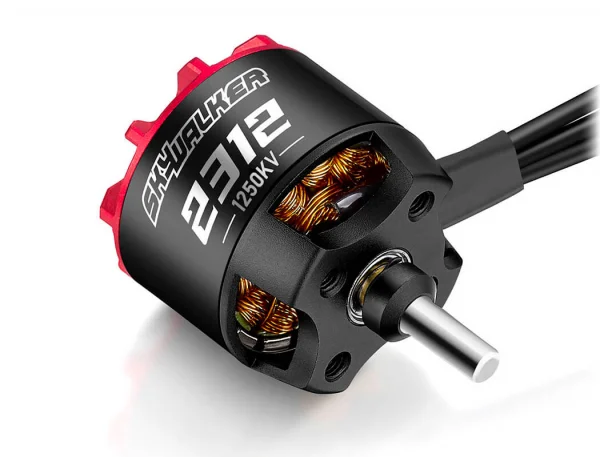

The Hobbywing Skywalker 2312SL 1250kV BLK G1 is a brushless outrunner motor engineered for fixed‑wing RC aircraft. Designed to complement Hobbywing Skywalker ESCs, this first‑generation Skywalker motor delivers around 10% more output power than comparable units with similar specifications, offering strong performance and reliable efficiency for sport and trainer airframes.
A special propeller attachment and N48 magnets help maximise torque, while an internal cooling cavity and self‑draining top cover improve heat dissipation under load. The rotor has been optimised to reduce vibration for smoother running, and high‑quality materials—such as 0.2mm silicon steel laminations and high‑temperature enamelled windings—promote long service life.
Key Features
- Powerful motor
- Ideal as a complement to the Skywalker ESCs
- Optimised rotor running
- Designed for effective cooling and heat dissipation
- 18AWG silicone cable
Specifications
- Type: Brushless outrunner
- kV rating: 1250kV
- No‑load current: 1.5A @ 14.8V
- Resistance: 51.6 mΩ
- LiPo cells: 3–4S
- Slots & poles: 12N14P
- Max continuous current: 38A / 35s
- Max continuous power: 563W / 35s
- Phase cable: 18AWG, 100mm
- Bearing: 684ZZ (D9 × d4 × 4)
- Diameter: 28.8mm
- Length: 46mm
- Shaft diameter: 4mm
- Weight: 65g
- Clip mounting hole thread: D: 12mm – 3 × M2.5
- Base thread: D: 16mm – 2 × M3; D: 19mm – 2 × M3
Suggested Compatibility
- ESC: Skywalker V2 30A–40A (manufacturer recommendation)
- Propellers (3S): 8×6E, 9×4.5E, 10×6E
- Propellers (4S): 8×4E, 8×6E
What’s Included
- 1 × Skywalker 1250kV motor
- 1 × Manual
Secured by Stripe
HOBBYWING SKYWALKER 2312SL 1250KV BLK G1 OUTRUNNER MOTOR
The first generation of the Skywalker motor series brings RC hobby pilots with fixed-wing models a whole new flying experience. They are also a suitable complement to the already established Skywalker ESCs and achieve around 10% more output power than comparable motors with similar specifications.
The Skywalker aircraft motors have a special propeller attachment that ensures an overall higher torque. And the motor, equipped with N48 magnets, takes advantage of exactly that to ensure maximum torque output. Incidentally, no problems due to excessive heating are to be expected. After all, there is a generous cavity in the motor, which, together with the self-draining structure of the top cover, increases the cooling performance. And together with other high-quality components such as the 0.2mm JNEH1200 silicon steel sheet and the high-temperature-resistant enameled wire, these engines are ready to travel the skies for a long time.
The rotor itself has been designed to noticeably reduce potential motor vibrations and ensure smoother operation overall. The rotor is also secured through the interaction of the various components in order to further increase the reliability of the Skywalker motors.
Features
- Powerful motor
- Ideal as a complement to the Skywalker ESCs
- Optimized rotor running
- Designed for effective cooling and heat dissipation
- 18AWG silicone cable
Specifications
Type: Brushless
kV Rating: 1250kV
No-Load Current: 1.5A/14.8V
Resistance: 51.6m Ohm
LiPo Cells: 3-4S LiPo
Slots & Poles: 12N14P
Max. cont. Current: 38A/35s
Max. cont. Power: 563W/35s
Phase Cable: 18AWG, 100mm
Bearing: 684ZZ (D9 x d4 x 4)
Diameter: 28.8mm
Length: 46mm
Shaft Diameter: 4mm
Weight: 65g
Recommended ESC: Skywalker V2 30A-40A
Props:
- 3S: 8x6E, 9x4.5E,10X6E
- 4S: 8x4E, 8x6E
Clip Mounting Hole Thread: D:12mm-3 x M2.5
Base Thread:
- D: 16mm-2 x M3
- D: 19mm-2 x M3
What's Included
- 1 x Skywalker motor 2320 SL 1250kV
- 1 x Manual
Key Info:
- Brand: Hobbywing
- Part No: HW30415003
- Barcode: 6938994423038
