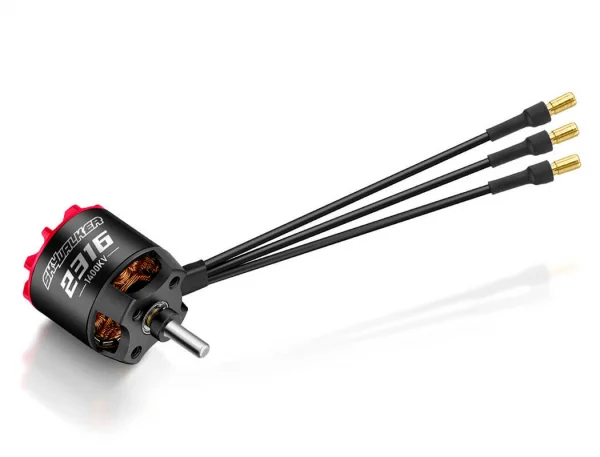

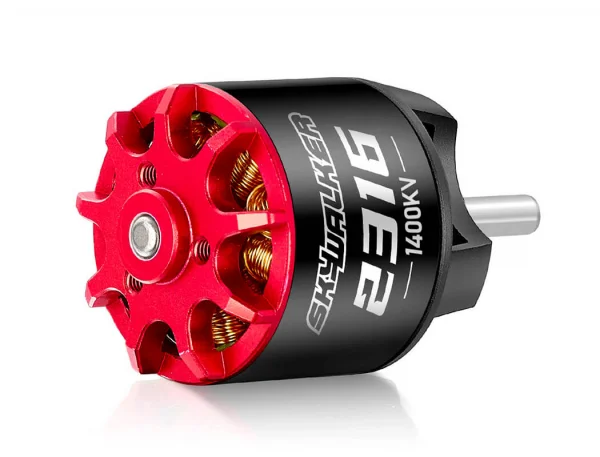

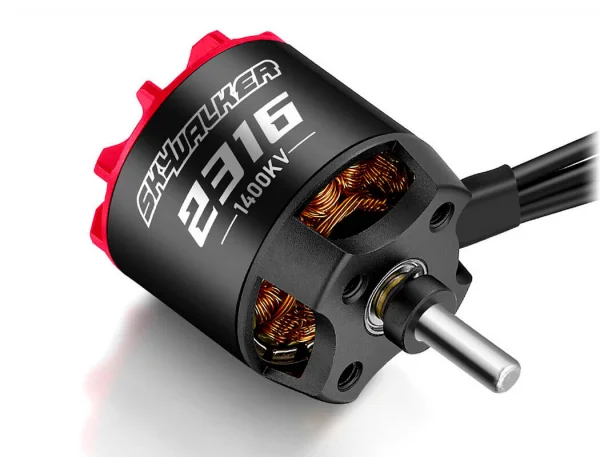

Hobbywing Skywalker 2316Sl 1400Kv Black G1 Outrunner Motor
Brand: Hobbywing
Part No: HW30415052
Shadow Stock: Usually ships next day
The Hobbywing Skywalker 2316SL 1400kV BLK G1 Outrunner Motor (part number HW30415052) brings first‑generation Skywalker performance to fixed‑wing RC aircraft. Paired naturally with Skywalker ESCs, this G1 motor targets around 10% more output than comparable units, with a special propeller attachment and N48 magnets to maximise torque. A generously ventilated can and self‑draining top cover enhance cooling, while high‑temperature enameled windings and 0.2mm JNEH1200 silicon steel support long‑term reliability.
The rotor is engineered to reduce vibration for smoother operation, and a secured construction increases overall durability. With a compact 28.8mm diameter, 4mm shaft and 18AWG silicone phase leads, the 2316SL 1400kV is a strong choice for fixed‑wing pilots seeking efficient power delivery on 3–4S LiPo setups.
Key Features
- Powerful brushless outrunner designed for fixed‑wing models
- Complements Skywalker ESCs with around 10% more output power
- Optimised rotor running to reduce vibrations
- Cooling cavity and self‑draining top cover for effective heat dissipation
- N48 magnets and special propeller attachment for high torque
- High‑temperature enameled wire and 0.2mm JNEH1200 silicon steel
- 18AWG silicone phase cable
Specifications
- Type: Brushless
- kV Rating: 1400kV
- No‑Load Current: 2.3A/14.8V
- Resistance: 28.4m Ohm
- LiPo Cells: 3–4S LiPo
- Slots & Poles: 12N14P
- Max. Continuous Current: 42A/135s
- Max. Continuous Power: 618W/135s
- Phase Cable: 18AWG, 100mm
- Bearing: 684ZZ (D9 x d4 x 4)
- Diameter: 28.8mm
- Length: 50mm
- Shaft Diameter: 4mm
- Weight: 79g
- Clip Mounting Hole Thread: D:12mm – 3 x M2.5
- Base Thread: D:16mm – 2 x M3; D:19mm – 2 x M3
Suggested Compatibility
- ESC: Skywalker V2 40A–50A (suggested)
- Propellers (suggested): 3S: 7x6E, 8x6E; 4S: 7x5E, 8x4E
What’s Included
- 1 x Skywalker 2316SL 1400kV motor
- 1 x Manual
Secured by Stripe
HOBBYWING SKYWALKER 2316SL 1400KV BLK G1 OUTRUNNER MOTOR
The first generation of the Skywalker motor series brings RC hobby pilots with fixed-wing models a whole new flying experience. They are also a suitable complement to the already established Skywalker ESCs and achieve around 10% more output power than comparable motors with similar specifications.
The Skywalker aircraft motors have a special propeller attachment that ensures an overall higher torque. And the motor, equipped with N48 magnets, takes advantage of exactly that to ensure maximum torque output. Incidentally, no problems due to excessive heating are to be expected. After all, there is a generous cavity in the motor, which, together with the self-draining structure of the top cover, increases the cooling performance. And together with other high-quality components such as the 0.2mm JNEH1200 silicon steel sheet and the high-temperature-resistant enameled wire, these engines are ready to travel the skies for a long time.
The rotor itself has been designed to noticeably reduce potential motor vibrations and ensure smoother operation overall. The rotor is also secured through the interaction of the various components in order to further increase the reliability of the Skywalker motors.
Features
- Powerful motor
- Ideal as a complement to the Skywalker ESCs
- Optimized rotor running
- Designed for effective cooling and heat dissipation
- 18AWG silicone cable
Specifications
Type: Brushless
kV Rating: 1400kV
No-Load Current: 2.3A/14.8V
Resistance: 28.4m Ohm
LiPo Cells: 3-4S LiPo
Slots & Poles: 12N14P
Max. cont. Current: 42A/135s
Max. cont. Power: 618W/135s
Phase Cable: 18AWG, 100mm
Bearing: 684ZZ (D9 x d4 x 4)
Diameter: 28.8mm
Length: 50mm
Shaft Diameter: 4mm
Weight: 79g
Recommended ESC: Skywalker V2 40A-50A
Props:
- 3S: 7x6E, 8x6E
- 4S: 7x5E, 8x4E
Clip Mounting Hole Thread: D:12mm-3 x M2.5
Base Thread:
- D: 16mm-2 x M3
- D: 19mm-2 x M3
What's Included
- 1 x Skywalker motor 2316 SL 1400kV
- 1 x Manual
Key Info:
- Brand: Hobbywing
- Part No: HW30415052
- Barcode: 6938994422048
