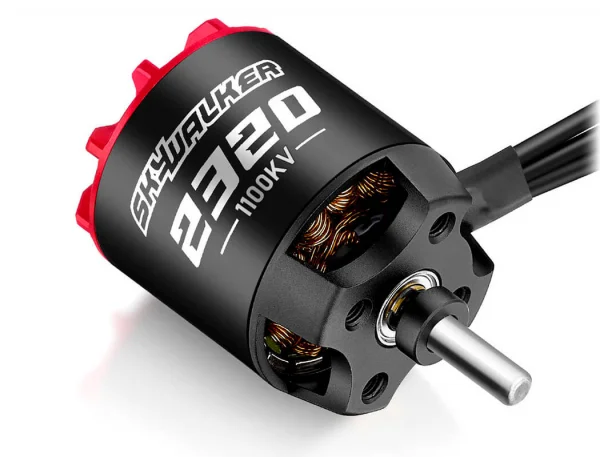

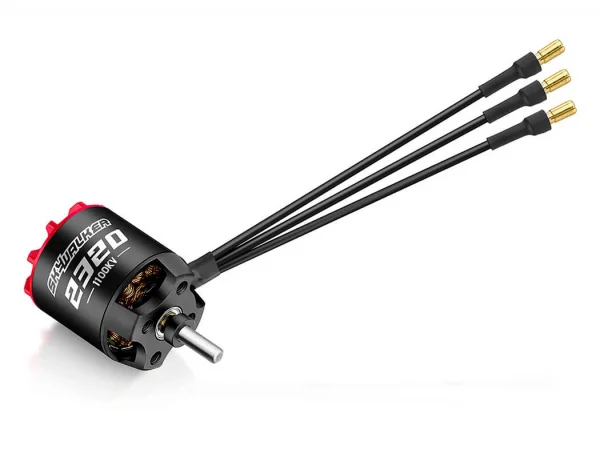

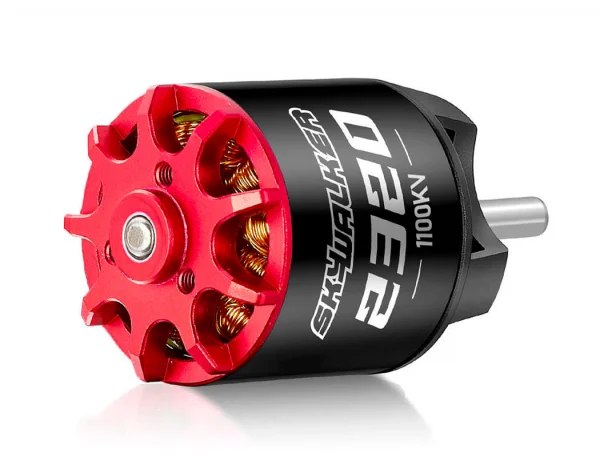

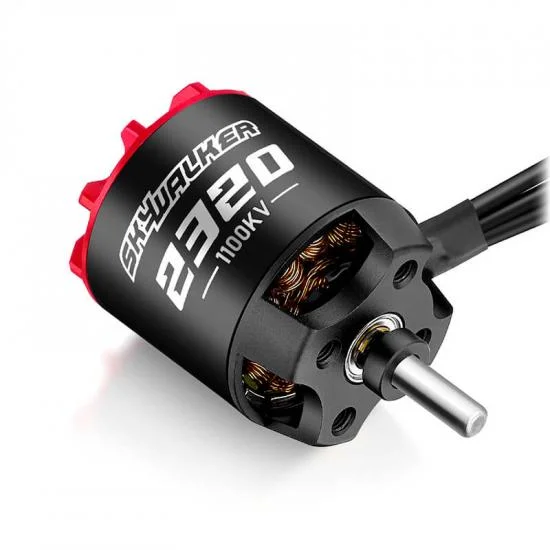

Hobbywing Skywalker 2320SL 1100Kv Black G1 Outrunner Motor
Brand: Hobbywing
Part No: HW30415101
Shadow Stock: Usually ships next day
Hobbywing’s first-generation Skywalker 2320SL 1100kV BLK G1 outrunner (HW30415101) is designed for fixed-wing RC aircraft, delivering around 10% more output than comparable motors of similar specification. A special propeller attachment and N48 magnets provide strong torque, while an optimised rotor reduces vibration for smooth, efficient running.
Effective cooling is built in via a generous internal cavity and a self-draining top cover, helping to manage heat during extended flights. Quality materials, including 0.2mm JNEH1200 silicon steel laminations and high-temperature-resistant enamelled wire, support long-term reliability. Pre-fitted 18AWG silicone leads make installation straightforward.
Key Features
- Powerful motor
- Ideal as a complement to the Skywalker ESCs
- Optimised rotor running
- Designed for effective cooling and heat dissipation
- 18AWG silicone cable
Specifications
- Type: Brushless
- kV Rating: 1100kV
- No-Load Current: 1.8A/14.8V
- Resistance: 33 mΩ
- LiPo Cells: 3–4S LiPo
- Slots & Poles: 12N14P
- Max. Continuous Current: 41A/180s
- Max. Continuous Power: 580W/194s
- Phase Cable: 18AWG, 100mm
- Bearing: 684ZZ (D9 x d4 x 4)
- Diameter: 28.8mm
- Length: 54mm
- Shaft Diameter: 4mm
- Weight: 92g
- Clip Mounting Hole Thread: D:12mm – 3 x M2.5
- Base Thread: D:16mm – 2 x M3; D:19mm – 2 x M3
Suggested Compatibility
- Recommended ESC: Skywalker V2 40A–50A
- Propellers:
- 3S: 10x5E, 10x6E, 11x5.5E
- 4S: 8x6E, 9x4.5E
What’s Included
- 1 x Skywalker motor 2320 SL 1100kV
- 1 x Manual
Secured by Stripe
HOBBYWING SKYWALKER 2320SL 1100KV BLK G1 OUTRUNNER MOTOR
The first generation of the Skywalker motor series brings RC hobby pilots with fixed-wing models a whole new flying experience. They are also a suitable complement to the already established Skywalker ESCs and achieve around 10% more output power than comparable motors with similar specifications.
The Skywalker aircraft motors have a special propeller attachment that ensures an overall higher torque. And the motor, equipped with N48 magnets, takes advantage of exactly that to ensure maximum torque output. Incidentally, no problems due to excessive heating are to be expected. After all, there is a generous cavity in the motor, which, together with the self-draining structure of the top cover, increases the cooling performance. And together with other high-quality components such as the 0.2mm JNEH1200 silicon steel sheet and the high-temperature-resistant enameled wire, these engines are ready to travel the skies for a long time.
The rotor itself has been designed to noticeably reduce potential motor vibrations and ensure smoother operation overall. The rotor is also secured through the interaction of the various components in order to further increase the reliability of the Skywalker motors.
Features
- Powerful motor
- Ideal as a complement to the Skywalker ESCs
- Optimized rotor running
- Designed for effective cooling and heat dissipation
- 18AWG silicone cable
Specifications
Type: Brushless
kV Rating: 1100kV
No-Load Current: 1.8A/14.8V
Resistance: 33m Ohm
LiPo Cells: 3-4S LiPo
Slots & Poles: 12N14P
Max. cont. Current: 41A/180s
Max. cont. Power: 580W/194s
Phase Cable: 18AWG, 100mm
Bearing: 684ZZ (D9 x d4 x 4)
Diameter: 28.8mm
Length: 54mm
Shaft Diameter: 4mm
Weight: 92g
Recommended ESC: Skywalker V2 40A-50A
Props:
- 3S: 10x5E, 10x6E, 11x5.5E
- 4S: 8x6E, 9x4.5E
Clip Mounting Hole Thread: D:12mm-3 x M2.5
Base Thread:
- D: 16mm-2 x M3
- D: 19mm-2 x M3
What's Included
- 1 x Skywalker motor 2320 SL 1100kV
- 1 x Manual
Key Info:
- Brand: Hobbywing
- Part No: HW30415101
- Barcode: 6938994423014
