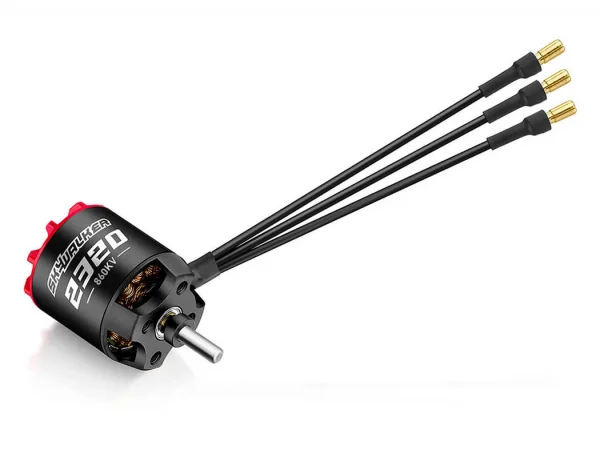

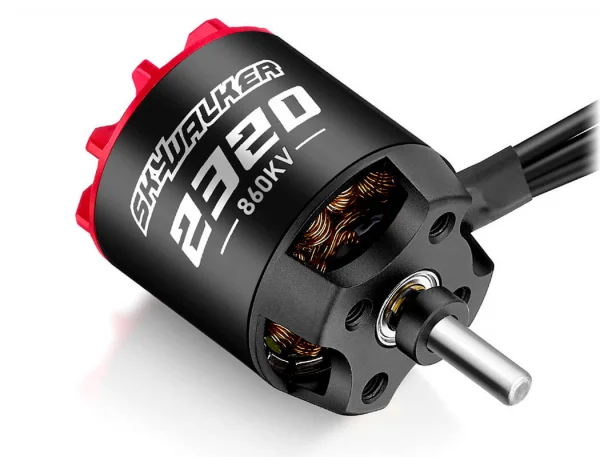

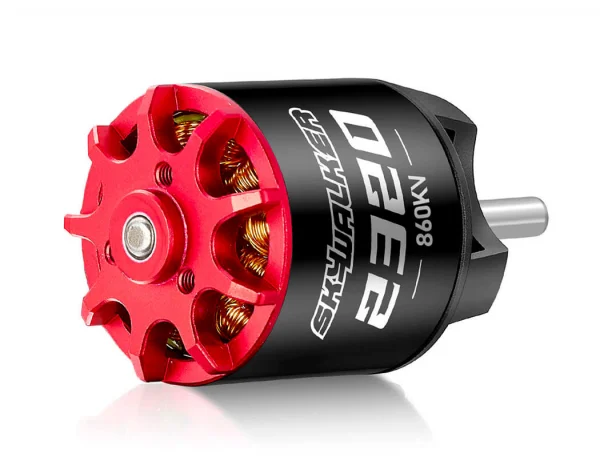

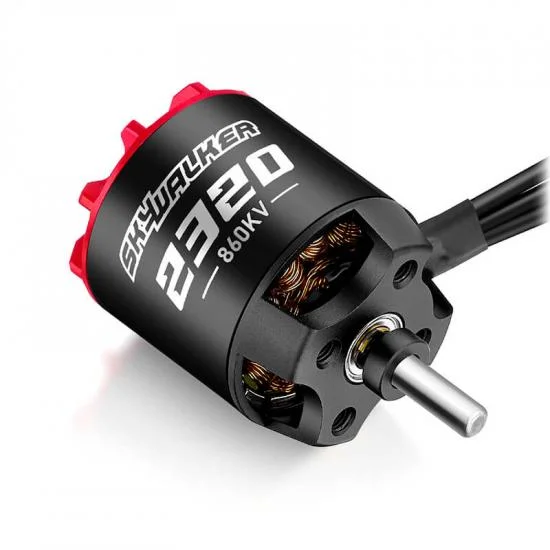

Hobbywing Skywalker 2320SL 860Kv Black G1 Outrunner Motor
Brand: Hobbywing
Part No: HW30415100
Shadow Stock: Usually ships next day
The Hobbywing Skywalker 2320SL 860kV BLK G1 Outrunner Motor (HW30415100) is part of the first-generation Skywalker series for fixed-wing RC aircraft, delivering around 10% more output power than comparable motors with similar specifications. Designed as a strong pairing with Skywalker ESCs, it combines efficiency, torque and durability for smooth, reliable flight performance.
A specialised propeller attachment works with high-strength N48 magnets to maximise torque, while an internal cavity and self-draining top cover promote effective airflow and heat dissipation. Quality materials, including 0.2mm JNEH1200 silicon steel laminations and high-temperature-resistant enamelled wire, support long service life.
The rotor is engineered to reduce vibration for smoother operation and increased reliability, complemented by robust bearings and neatly sized phase leads for tidy installation.
Key Features
- Powerful 860kV brushless outrunner for fixed-wing models
- Ideal complement to Hobbywing Skywalker ESCs
- Optimised rotor running to reduce vibration
- Cooling-focused structure for improved heat dissipation
- 18AWG silicone phase cables (approx. 100mm)
Specifications
- Type: Brushless
- kV Rating: 860kV
- No-load Current: 1.5A @ 14.8V
- Resistance: 48.4 mΩ
- LiPo Cells: 3–4S
- Slots & Poles: 12N14P
- Max. Cont. Current: 36A/90s
- Max. Cont. Power: 540W/90s
- Phase Cable: 18AWG, 100mm
- Bearing: 684ZZ (D9 × d4 × 4)
- Diameter: 28.8mm
- Length: 54mm
- Shaft Diameter: 4mm
- Weight: 93g
- Recommended ESC: Skywalker V2 30A–40A
- Clip Mounting Hole Thread: D: 12mm – 3 × M2.5
- Base Thread: D: 16mm – 2 × M3; D: 19mm – 2 × M3
Suggested Propeller Sizes
- 3S: 12x6E, 13x6.5E
- 4S: 10x5E, 10x6E, 11x5.5E
What's Included
- 1 x Skywalker motor 2320 SL 860kV
- 1 x Manual
Secured by Stripe
HOBBYWING SKYWALKER 2320SL 860KV BLK G1 OUTRUNNER MOTOR
The first generation of the Skywalker motor series brings RC hobby pilots with fixed-wing models a whole new flying experience. They are also a suitable complement to the already established Skywalker ESCs and achieve around 10% more output power than comparable motors with similar specifications.
The Skywalker aircraft motors have a special propeller attachment that ensures an overall higher torque. And the motor, equipped with N48 magnets, takes advantage of exactly that to ensure maximum torque output. Incidentally, no problems due to excessive heating are to be expected. After all, there is a generous cavity in the motor, which, together with the self-draining structure of the top cover, increases the cooling performance. And together with other high-quality components such as the 0.2mm JNEH1200 silicon steel sheet and the high-temperature-resistant enameled wire, these engines are ready to travel the skies for a long time.
The rotor itself has been designed to noticeably reduce potential motor vibrations and ensure smoother operation overall. The rotor is also secured through the interaction of the various components in order to further increase the reliability of the Skywalker motors.
Features
- Powerful motor
- Ideal as a complement to the Skywalker ESCs
- Optimized rotor running
- Designed for effective cooling and heat dissipation
- 18AWG silicone cable
Specifications
Type: Brushless
kV Rating: 860kV
No-Load Current: 1.5A/14.8V
Resistance: 48.4m Ohm
LiPo Cells: 3-4S LiPo
Slots & Poles: 12N14P
Max. cont. Current: 36A/90s
Max. cont. Power: 540W/90s
Phase Cable: 18AWG, 100mm
Bearing: 684ZZ (D9 x d4 x 4)
Diameter: 28.8mm
Length: 54mm
Shaft Diameter: 4mm
Weight: 93g
Recommended ESC: Skywalker V2 30A-40A
Props:
- 3S: 12x6E, 13x6.5E
- 4S: 10x5E, 10x6E, 11x5.5E
Clip Mounting Hole Thread: D:12mm-3 x M2.5
Base Thread:
- D: 16mm-2 x M3
- D: 19mm-2 x M3
What's Included
- 1 x Skywalker motor 2320 SL 860kV
- 1 x Manual
Key Info:
- Brand: Hobbywing
- Part No: HW30415100
- Barcode: 6938994423007
