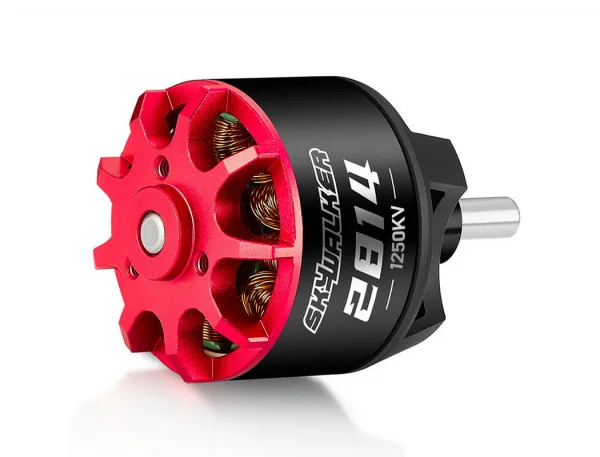

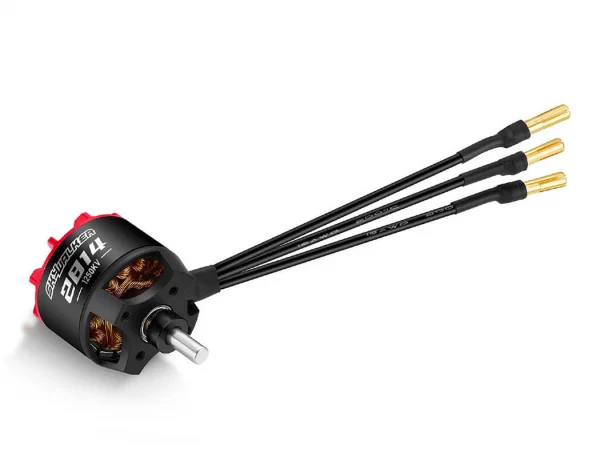

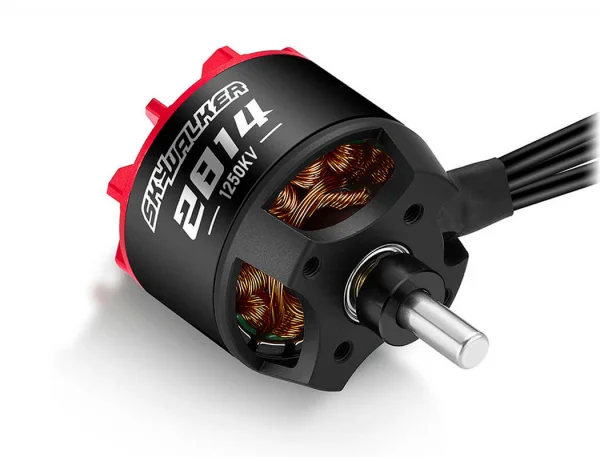

Hobbywing Skywalker 2814Sl 1250Kv G1 Outrunner Motor
Brand: Hobbywing
Part No: HW30415151
Shadow Stock: Usually ships next day
The Hobbywing Skywalker 2814SL 1250kV G1 Outrunner Motor (HW30415151) is a 28‑series aircraft motor built for strong pulling power and smooth, efficient performance in fixed‑wing RC models. Paired with high‑quality components and effective thermal design, it delivers dependable torque and refined running characteristics to enhance your flying experience.
Features
- Powerful brushless motor suited to fixed‑wing applications
- Designed as an ideal complement to Hobbywing Skywalker ESCs
- Optimised rotor running to reduce vibration
- Enhanced cooling and heat dissipation via internal cavity and self‑draining top cover
- 16AWG silicone cable
Specifications
- Type: Brushless
- kV Rating: 1250kV
- No‑Load Current: 2.98A @ 14.8V
- Resistance: 19.7 mΩ
- LiPo Cells: 3–4S
- Slots & Poles: 12N14P
- Max. Continuous Current: 75.1A (35s)
- Max. Continuous Power: 1111.5W (35s)
- Phase Cable: 16AWG, 110mm
- Bearing: 685ZZ (D11 × d5 × 5)
- Diameter: 35.1mm
- Length: 54mm
- Shaft Diameter: 5mm
- Weight: 114g
- Clip Mounting Hole Thread: D: 15mm – 3 × M2.5
- Base Thread: D: 19mm – 2 × M3 / D: 25mm – 2 × M3
- Materials & Construction: N48 magnets; 0.2mm JNEH1200 silicon steel laminations; high‑temperature enameled wire
Suggested Compatibility
- ESC: Skywalker V2 80A
- Propellers (4S): 8×6E, 9×4.5E, 10×5E
- Propellers (3S): 10×5E, 10×6E, 11×5.5
The rotor is engineered to reduce vibration for smoother operation, while the robust structure increases reliability over extended use. Combined with its torque‑optimised propeller attachment and cooling‑focused design, the Skywalker 2814SL is a compelling choice for fixed‑wing pilots seeking efficiency, thrust and longevity from a compact 35mm class motor.
Secured by Stripe
HOBBYWING SKYWALKER 2814SL 1250KV G1 OUTRUNNER MOTOR
The 28-series Skywalker motors are characterized by great pulling power and brings RC hobby pilots with fixed-wing models a whole new flying experience. They are a suitable addition to the established Skywalker ESCs and can be used in a variety of ways due to the built-in components.
The Skywalker aircraft motors have a special propeller attachment that ensures an overall higher torque. And the motor, equipped with N48 magnets, takes advantage of exactly that to ensure maximum torque output. Incidentally, no problems due to excessive heating are to be expected. After all, there is a generous cavity in the motor, which, together with the self-draining structure of the top cover, increases the cooling performance. And together with other high-quality components such as the 0.2mm JNEH1200 silicon steel sheet and the high-temperature-resistant enameled wire, these engines are ready to travel the skies for a long time.
The rotor itself has been designed to noticeably reduce potential motor vibrations and ensure smoother operation overall. The rotor is also secured through the interaction of the various components in order to further increase the reliability of the Skywalker motors.
Features
- Powerful motor
- Ideal as a complement to the Skywalker ESCs
- Optimized rotor running
- Designed for effective cooling and heat dissipation
- 16AWG silicone cable
Specifications
Type: Brushless
kV Rating: 1250kV
No-Load Current: 2.98A/14.8V
Resistance: 19.7m Ohm
LiPo Cells: 3-4S LiPo
Slots & Poles: 12N14P
Max. cont. Current: 75.1A/35s
Max. cont. Power: 1111.5W/35s
Phase Cable: 16AWG, 110mm
Bearing: 685ZZ (D11 x d5 x 5)
Diameter: 35.1mm
Length: 54mm
Shaft Diameter: 5mm
Weight: 114g
Recommended ESC: Skywalker V2 80A
Props:4S: 8X6E, 9x4.5E, 10X5E / 3S: 10x5E, 10x6E, 11X5.5
Clip Mounting Hole Thread: D:15mm-3 x M2.5
Base Thread: D:19mm-2 x M3 / D:25mm-2 x M3
Key Info:
- Brand: Hobbywing
- Part No: HW30415151
- Barcode: 6938994423076
