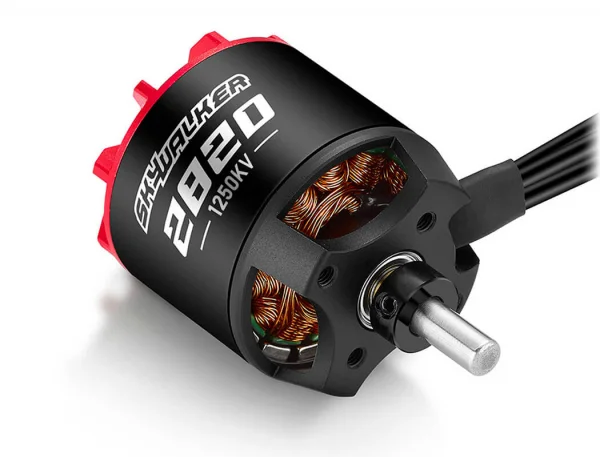

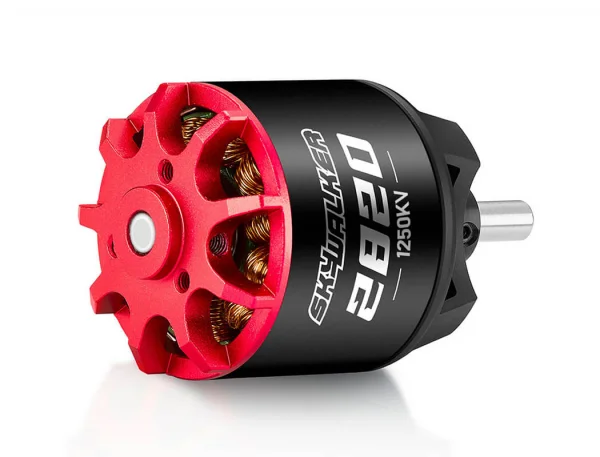

Hobbywing Skywalker 2820SL 1250Kv G1 Outrunner Motor
Brand: Hobbywing
Part No: HW30415202
Shadow Stock: Usually ships next day
The Hobbywing Skywalker 2820SL 1250Kv G1 outrunner motor (HW30415202) delivers strong pulling power for fixed-wing RC aircraft. A special propeller attachment and N48 magnets are designed to maximise torque, while an internal cavity and self-draining top cover enhance airflow for effective cooling. High-quality materials, including 0.2mm JNEH1200 silicon steel and high-temperature enameled wire, plus a rotor engineered to reduce vibration, support smooth and reliable operation on 3–4S LiPo setups.
Key Features
- Powerful brushless outrunner for fixed-wing models
- Ideal as a complement to Hobbywing Skywalker ESCs
- Optimised rotor running with reduced vibration
- Designed for effective cooling and heat dissipation
- 16AWG silicone phase cables
Specifications
- Type: Brushless
- kV Rating: 1250Kv
- No-load current: 3.7A @ 14.8V
- Resistance: 14.8 mΩ
- LiPo cells: 3–4S
- Slots & poles: 12N14P
- Max. continuous current: 81.8A (manufacturer spec: 1min 49s)
- Max. continuous power: 1110.7W (manufacturer spec: 4min 3s)

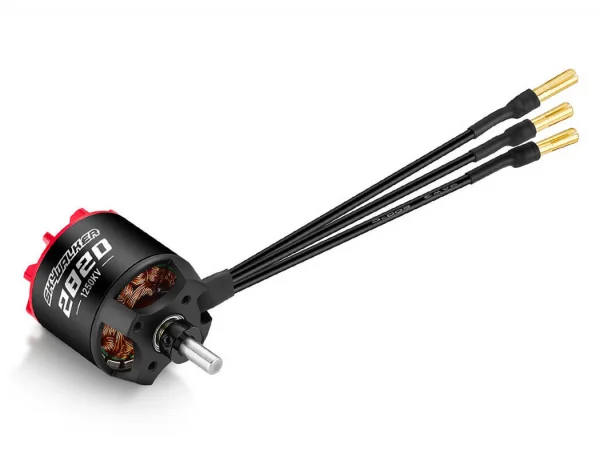

- Phase cable: 16AWG, 110mm
- Bearing: 685ZZ (D11 × d5 × 5)
- Diameter: 35.1mm; Length: 60mm
- Shaft diameter: 5mm
- Weight: 145.5g
- Clip mounting hole thread: D:15mm – 3 × M2.5
- Base thread: D:19mm – 2 × M3 / D:25mm – 2 × M3
- Part number: HW30415202
Suggested Compatibility & Propeller Options
- Suggested compatibility: Hobbywing Skywalker V2 80A ESC
- Suggested propellers (as stated): 4S: 9x4.5E, 10x5E
- Suggested propellers (as stated): 3S: 10x6E, 11x5.5E, 12x6E
Secured by Stripe
HOBBYWING SKYWALKER 2820SL 1250KV G1 OUTRUNNER MOTOR
The 28-series Skywalker motors are characterized by great pulling power and brings RC hobby pilots with fixed-wing models a whole new flying experience. They are a suitable addition to the established Skywalker ESCs and can be used in a variety of ways due to the built-in components.
The Skywalker aircraft motors have a special propeller attachment that ensures an overall higher torque. And the motor, equipped with N48 magnets, takes advantage of exactly that to ensure maximum torque output. Incidentally, no problems due to excessive heating are to be expected. After all, there is a generous cavity in the motor, which, together with the self-draining structure of the top cover, increases the cooling performance. And together with other high-quality components such as the 0.2mm JNEH1200 silicon steel sheet and the high-temperature-resistant enameled wire, these engines are ready to travel the skies for a long time.
The rotor itself has been designed to noticeably reduce potential motor vibrations and ensure smoother operation overall. The rotor is also secured through the interaction of the various components in order to further increase the reliability of the Skywalker motors.
Features
- Powerful motor
- Ideal as a complement to the Skywalker ESCs
- Optimized rotor running
- Designed for effective cooling and heat dissipation
- 16AWG silicone cable
Specifications
Type: Brushless
kV Rating: 1250kV
No-Load Current: 3.7A/14.8V
Resistance: 14.8m Ohm
LiPo Cells: 3-4S LiPo
Slots & Poles: 12N14P
Max. cont. Current: 81.8A/1min 49s
Max. cont. Power: 1110.7W/4min 3s
Phase Cable: 16AWG, 110mm
Bearing: 685ZZ (D11 x d5 x 5)
Diameter: 35.1mm
Length: 60mm
Shaft Diameter: 5mm
Weight: 145.5g
Recommended ESC: Skywalker V2 80A
Props: 4S: 9x4.5E, 10x5E / 3S: 10x6E, 11x5.5E, 12x6E
Clip Mounting Hole Thread: D:15mm-3 x M2.5
Base Thread: D:19mm-2 x M3 / D:25mm-2 x M3
Key Info:
- Brand: Hobbywing
- Part No: HW30415202
- Barcode: 6938994423113
