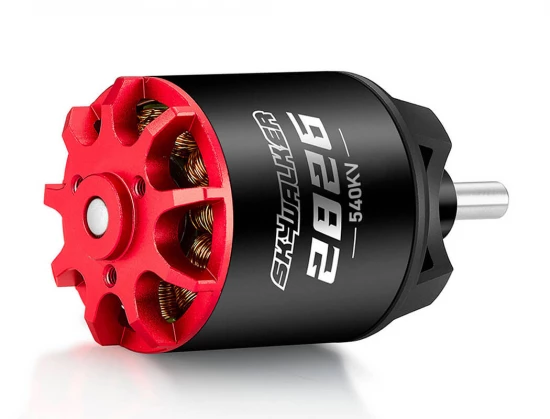

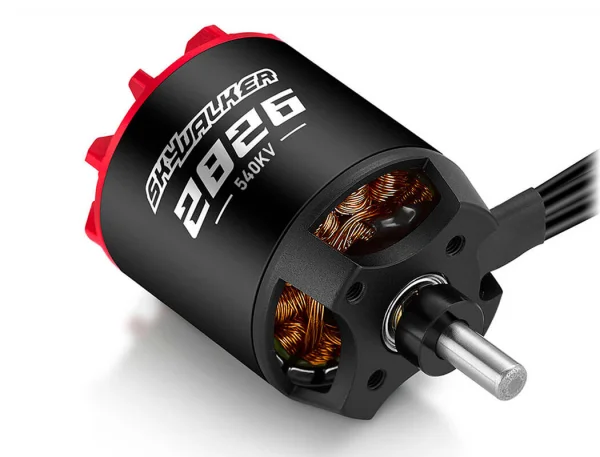

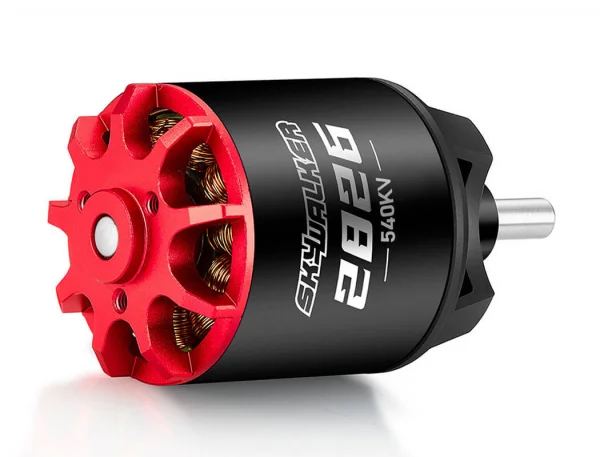

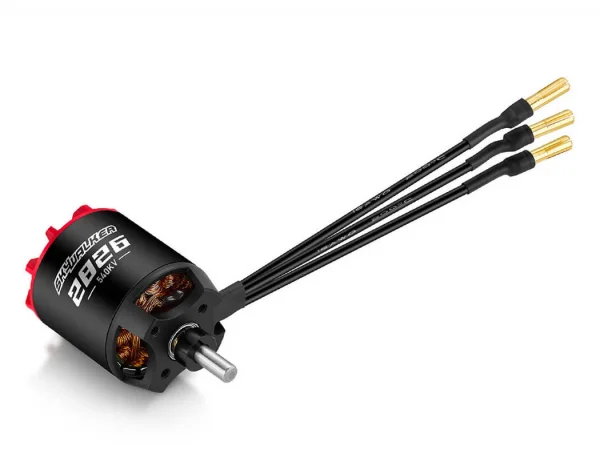

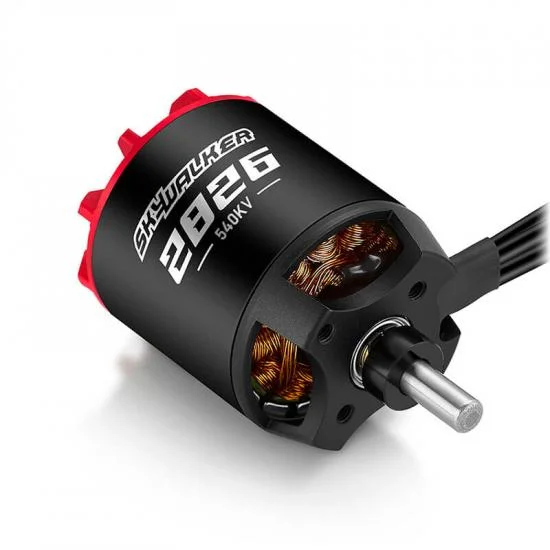

Hobbywing Skywalker 2826Sl 540Kv G1 Outrunner Motor
Brand: Hobbywing
Part No: HW30415250
Shadow Stock: Usually ships next day
The Hobbywing Skywalker 2826SL 540KV G1 Outrunner Motor (HW30415250) delivers strong pulling power for fixed‑wing RC aircraft. As part of the 28‑series Skywalker range, it pairs the convenience of robust construction with smooth, efficient running. High‑torque N48 magnets and a special propeller attachment help maximise thrust, while a generously vented internal cavity and self‑draining top cover improve cooling and heat dissipation for dependable performance.
Built with quality materials, including 0.2 mm JNEH1200 silicon steel laminations and heat‑resistant enamelled windings, the 2826SL is engineered for durability. A carefully optimised rotor design reduces vibration for smoother operation, and flexible 16AWG silicone phase leads simplify installation. Suggested compatibility includes fixed‑wing models and pairing with Hobbywing Skywalker ESCs.
Features
- Powerful motor
- Ideal as a complement to the Skywalker ESCs
- Optimised rotor running
- Designed for effective cooling and heat dissipation
- 16AWG silicone cable
Specifications
- Type: Brushless outrunner
- kV Rating: 540KV
- No‑Load Current: 1.58 A @ 22.2 V
- Resistance: 43.9 mΩ
- LiPo Cells: 6S LiPo
- Slots & Poles: 12N14P
- Max. Continuous Current: 49.7 A (1 min)
- Max. Continuous Power: 1106.5 W (1 min)
- Phase Cable: 16AWG, 110 mm
- Bearing: 685ZZ (D11 × d5 × 5)
- Diameter: 35.1 mm
- Length: 66 mm
- Shaft Diameter: 5 mm
- Weight: 175.5 g
- Recommended ESC: Skywalker V2 80A
- Propellers (6S): 12×6E, 13×6.5E, 14×6E
- Clip Mounting Hole Thread: D: 15 mm – 3 × M2.5
- Base Thread: D: 19 mm – 2 × M3 / D: 25 mm – 2 × M3
With its compact 35.1 × 66 mm size and 5 mm shaft, the Skywalker 2826SL offers versatile installation options and strong performance on 6S setups. The suggested compatibility with Skywalker ESCs and the listed propeller sizes provides a solid starting point for efficient, reliable fixed‑wing power systems.
Secured by Stripe
HOBBYWING SKYWALKER 2826SL 540KV G1 OUTRUNNER MOTOR
The 28-series Skywalker motors are characterized by great pulling power and brings RC hobby pilots with fixed-wing models a whole new flying experience. They are a suitable addition to the established Skywalker ESCs and can be used in a variety of ways due to the built-in components.
The Skywalker aircraft motors have a special propeller attachment that ensures an overall higher torque. And the motor, equipped with N48 magnets, takes advantage of exactly that to ensure maximum torque output. Incidentally, no problems due to excessive heating are to be expected. After all, there is a generous cavity in the motor, which, together with the self-draining structure of the top cover, increases the cooling performance. And together with other high-quality components such as the 0.2mm JNEH1200 silicon steel sheet and the high-temperature-resistant enameled wire, these engines are ready to travel the skies for a long time.
The rotor itself has been designed to noticeably reduce potential motor vibrations and ensure smoother operation overall. The rotor is also secured through the interaction of the various components in order to further increase the reliability of the Skywalker motors.
Features
- Powerful motor
- Ideal as a complement to the Skywalker ESCs
- Optimized rotor running
- Designed for effective cooling and heat dissipation
- 16AWG silicone cable
Specifications
Type: Brushless
kV Rating: 540kV
No-Load Current: 1.58/22.2V
Resistance: 43.9m Ohm
LiPo Cells: 6s LiPo
Slots & Poles: 12N14P
Max. cont. Current: 49.7A/1min
Max. cont. Power: 1106.5W/1min
Phase Cable: 16AWG, 110mm
Bearing: 685ZZ (D11 x d5 x 5)
Diameter: 35.1mm
Length: 66mm
Shaft Diameter: 5mm
Weight: 175.5g
Recommended ESC: Skywalker V2 80A
Props: 6s: 12x6E, 13x6.5E, 14X6E
Clip Mounting Hole Thread: D:15mm-3 x M2.5
Base Thread: D:19mm-2 x M3 / D:25mm-2 x M3
Key Info:
- Brand: Hobbywing
- Part No: HW30415250
- Barcode: 6938994423120
