Hobbywing XR10 Justock G3 ESC Combo With Justock G2.1 17.5T Motor

HOBBYWING COMBO XR10 JUSTOCK G3 ESC/JUSTOCK G2.1 17.5T (FIXED TIMING)

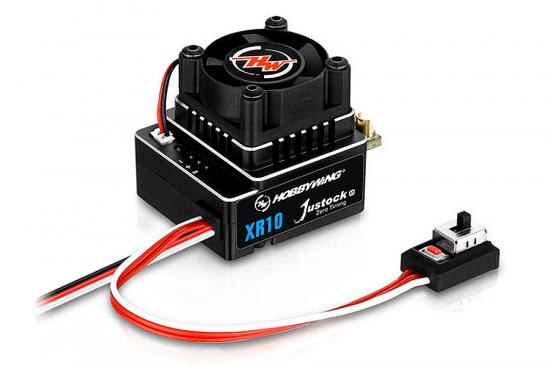

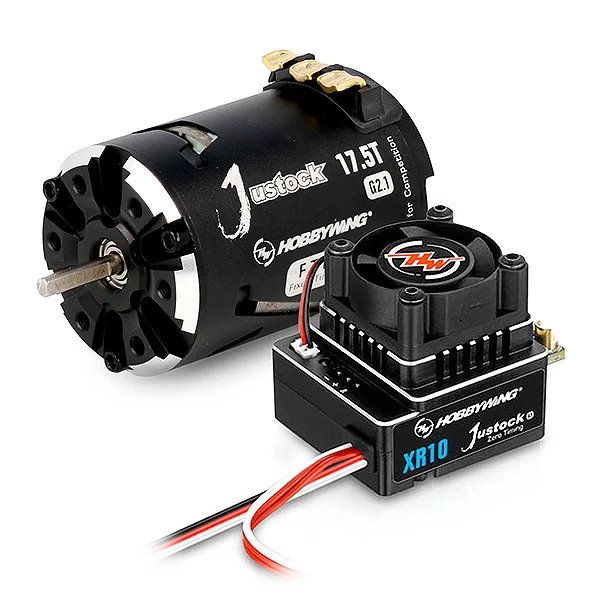

The XERUN XR10 JUSTOCK G3 ESC and HOBBYWING JUSTOCK G2.1 SENSORED MOTOR (FIXED TIMING) combo is specifically designed for Zero-timing racing class. Its timing system has been permanently set to ZERO degree. Using the same branded motor and winding will ensure that every racer will have the same power system for 100% fair and competitive racing.

Reliable hardware combined with advanced software technology allows the XERUN XR10 JUSTOCK G3 to not only provide high power output, but also overload protection of the ESC circuit.

This ESC is designed for 1/10th scale touring cars & 1/12th scale pan cars as well as the ever popular F1 series cars for all Zero-timing spec racing. The ESC features an RPM speed limit function and is able to support up to 6 different RPM speed selections to meet the needs and demands of various competitions in the world.

HobbyWing XeRun XR10 Justock G3 Speed Control Features:

• High Reliability & Durability
• Built-in polarity protection
• Zero-timing Design
• RPM speed limit function
• High efficient Heat Dissipating System
• Small Footprint
• Built-in capacitor module
• Regular Firmware Updates - Free of Charge
• Single-button Programming & Factory Reset

Spec Check:

• Scale: 1/10th & 1/12th
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensored or Sensorless
• Waterproof: No
• Cont./Peak Current: 60A/380A
• Motor Limit: ≥10.5T 3650 Motor
• Input: 2S LiPo (Only 2S)
• BEC Output: Linear Mode:6V/7.4V @4A
• Input Wires: Black-14AWG-200mm*2
• Output Wires: Black-14AWG-200mm*3
• Input Connectors: No
• Output Connectors: No
• Fan Size: 25x25x10mm
• Fan Voltage Range: 5-7.4V
• ESC Programming: WiFi, OTA and LCD Program Box
• Size: 40.9x33.9x32.1mm
• Weight: 75.4g(Including the weight of wire)

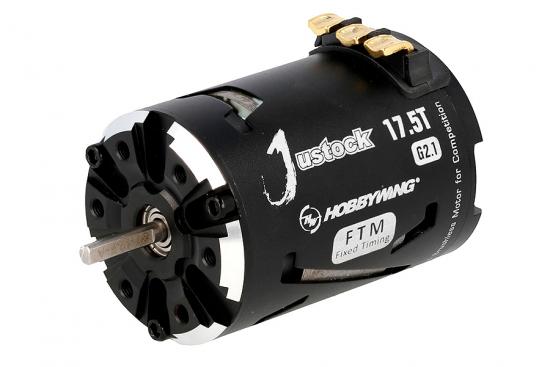

The Justock G2.1 motor has a heat-resistant magnet attached to the aluminium case, double insulated windings, high precision bearings and a rotor with a strong structure which guarantees outstanding performance and increased durability. The built-in hall sensor and non-adjustable end bell combined with the high precision balanced rotor guarantees a smooth linear power delivery.

The silicon 'o'-ring seal fitted between the end bell and stator helps to conduct inner heat to the motor case and prevent dust from entering the hall sensor. The case is designed for daily cleaning and maintenance which can prolong the service life of the motor and improve its operating efficiency.

This motor is perfectly matched with the XR10-Justock ESC for all zero timing spec racing and also compatible with other Hobbywing Electronic Speed Controllers.

HobbyWing Justock G2.1 Motor Features:

• Heat-resistant magnet and aluminium case
• High precision balanced rotor
• Applicable to 1/10th, 1/12th on-road and off-road vehicles
• Perfectly matched with the XR10-Justock ESC
• Complies with IFMAR, and ROAR specifications

• Brand: Hobbywing
• Part No: HW38020321
• Barcode: 6938994416450
