Kyosho Legendary Series Fantom EP 4WD Ext CRC-II

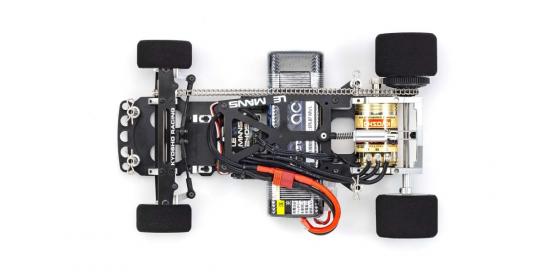

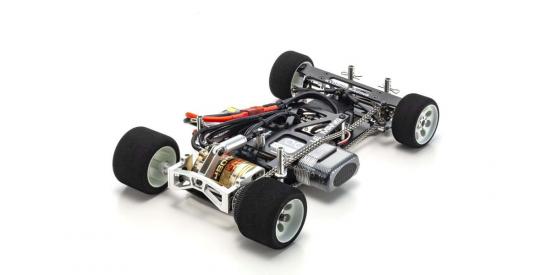

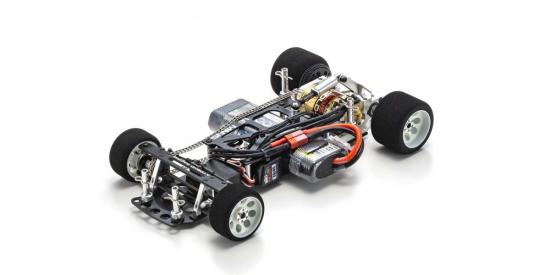

Relive a landmark era of on-road racing with the Kyosho Legendary Series Fantom EP 4WD Ext CRC-II (part K.30637B). This modernised re-release honours the 1985 Japan Championship-winning Ext while retaining the iconic ladder chain plus front one-way 4WD and distinctive 3P front suspension that made the original so agile.

Kyosho updates the platform for today’s electronics and tracks: progressive 3P springs deliver 2.2mm of controlled stroke, a reinforced front plate boosts torsional precision, and a machined aluminium rear oil damper enhances rear grip and pitching control. A direct servo saver and adjustable servo mount sharpen steering feel, while a height-adjustable rear axle lets you fine-tune ride height and chain tension. Rubber-sponge tyres improve grip and reduce wear, and lightweight hardware helps preserve the Ext’s famed low mass.

An ESC-ready layout replaces the rotary speed controller of the past, with dedicated mounting for the Le Mans 240S ESC and support for a brushless motor/ESC combination. The faithfully reproduced CRC-II body provides balanced aero; decals are included and the driver figure requires painting. Manufacturer-quoted performance with a Le Mans 480T BL setup is approximately 55 km/h and around 23 minutes of run time.

Features

• Faithful recreation of the 1985 Ext with modernised components throughout.
• Ladder chain drive 4WD with front one-way bearing for earlier throttle application through corners.
• 3P suspension with specially shaped progressive springs delivering approx. 2.2mm stroke.
• Reinforced front plate and torsion-effect main chassis for balanced rigidity.
• Machined aluminium rear oil damper improves pitching control and rear contact.
• ESC-ready design replaces the original rotary speed controller; mounting holes for Le Mans 240S ESC.
• Adjustable, machine-cut aluminium steering servo mount to suit various sizes.
• New direct servo saver with double ring spring for reliable, direct steering feel.
• Machined aluminium rear axle with ride height and chain tension adjuster.
• 48 pitch 21T long-type pinion included; 14T–27T pinions available as options.
• Rubber-sponge compound front and rear tyres for improved grip and reduced wear.

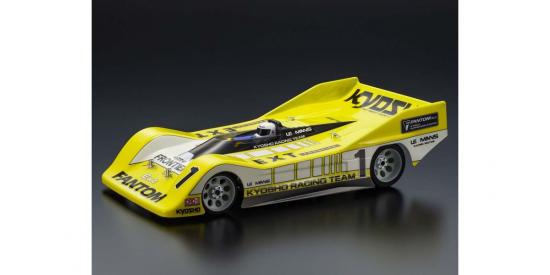

• CRC-II body faithfully reproduced; decals included (driver figure requires painting).
• Lightweight knuckle arms and wheel nuts continue the Ext’s low-mass philosophy.

Specifications

• Length: 340mm
• Width: 172mm
• Height: 83mm
• Chassis Type: Chain drive 4WD
• Wheelbase: 199–200mm (adjustable)
• Tread: Front 135mm / Rear 133mm
• Tyre Size: Front φ48×23mm / Rear φ53×35mm
• Gear Ratio: 3.38:1
• Weight: approx. 890g (with GAB4202)
• Motor: 540 class (sold separately)
• Radio: 2-channel with 1 servo and 1 ESC
• Quoted Maximum Speed: approx. 55 km/h (with Le Mans 480T BL)
• Quoted Driving Time: approx. 23 minutes (with Le Mans 480T BL)

What’s In The Box

• Chassis kit
• Adhesive shaped tyre
• Unpainted body
• Decal
• Wheel wrench (12/4.0)
• 5.5/4.5 wrench
• FRP shock wrench

Required To Complete

• Radio transmitter with 2 channels and 1 servo (receiver size: L37×W30×H16.5mm)
• 1 electronic speed controller (ESC size: 38×31×23mm)
• 540 motor
• Battery for chassis (battery size: 138×48×24.5mm)
• Batteries for transmitter
• Charger for battery
• Paint for body

Suggested Compatibility

• Flysky Noble NB4 4ch transmitter (No.82151XB) and Noble FGr4P receiver (No.82151-04)
• Gens ace LiPo 4000 Straight Pack 60C 7.4V (GAB4202)
• Kyosho Le Mans 480GOLD Brushless Motor 21.5T (No.37035)
• Kyosho Le Mans 240S ESC (No.37051B)
