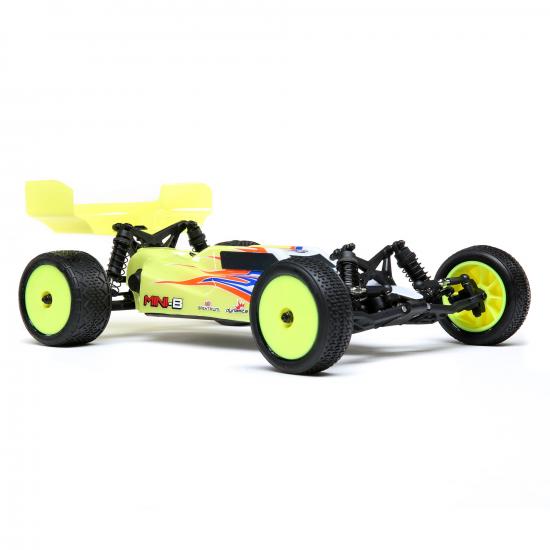

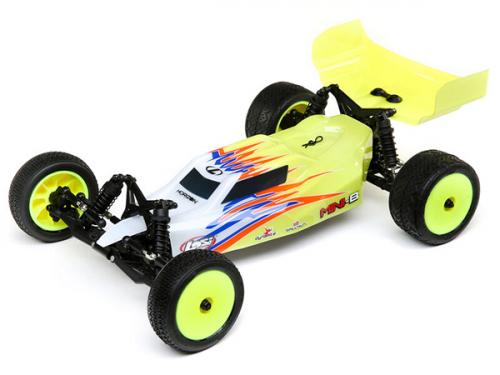

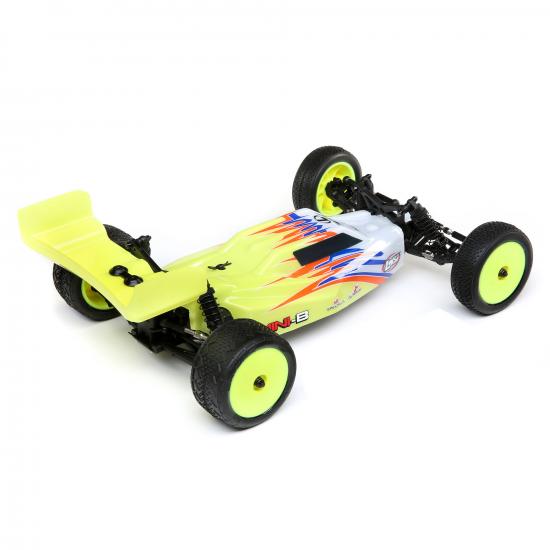

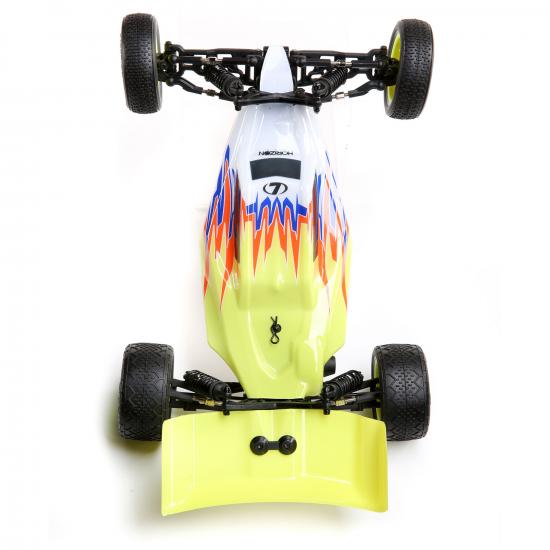

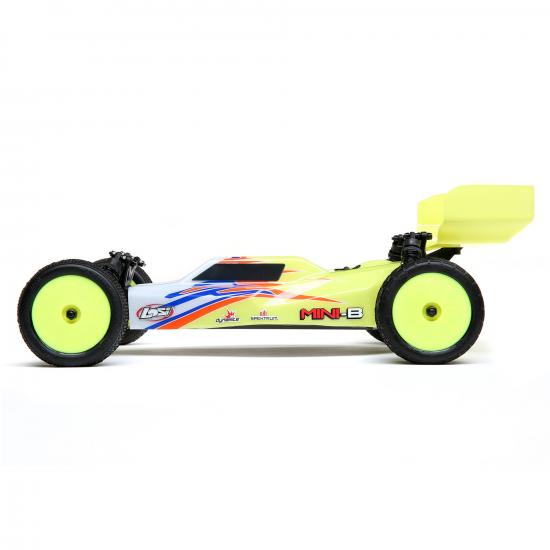

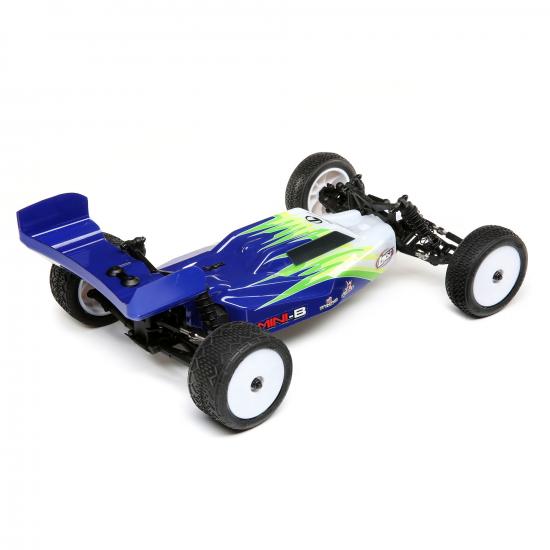

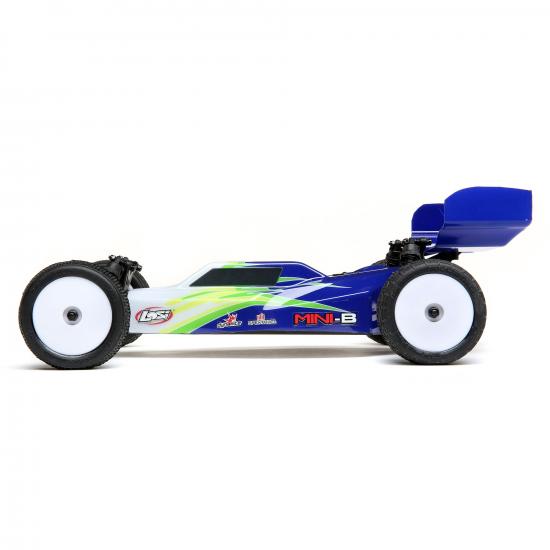

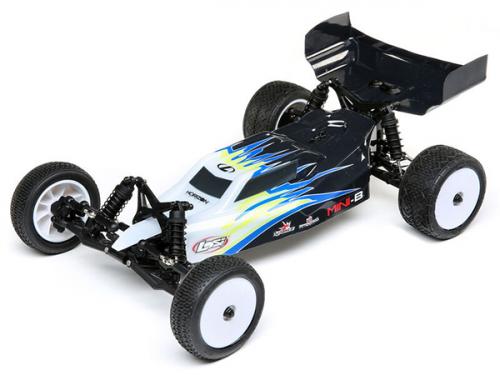

Losi Mini-B 1:16

Features

• Scaled down version of the 1/10 22
• Mid Motor Configuration
• Elastomer Battery Strap System
• Aluminum Chassis
• Threaded Oil Filled Shocks
• Fully assembled and ready-to-run
• HRZ 2-in-1 ESC/RX
• Dynamite® Brushed 280-sized 47T motor
• Spektrum™ SX107 metal gear servo

• Taper Pin Front and BK Bar Rear Tires with Dish Wheels
• Full Ball Bearings (less steering)
• Servo Saver
• Waterproof electronics
• 22 Suspension Geometry
• 650mAh 2S Lipo Battery with EC2 Connector and USB 0.5A Charger
• Option Parts Availability

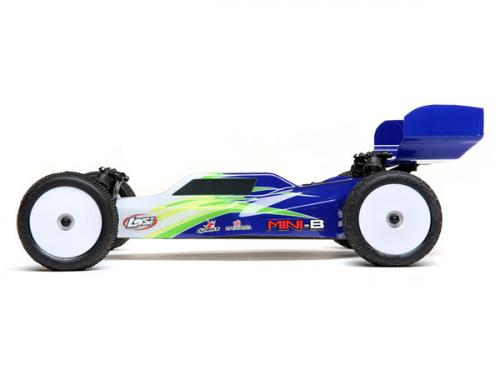

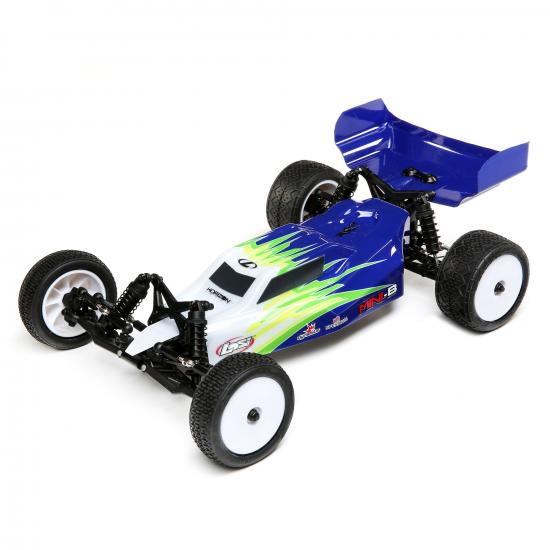

• Three Color Options

Overview

The legendary Losi® Mini's are back! Featuring TLR® 2wd buggy engineering and performance in a 1/16th package, the Losi Mini-B Buggy is terrain-tearing and track-ready. The larger 1/16th scale is stable on the track generating quicker speeds and improved handling. With suspension geometry updated and taken from the TLR® 22 platform and the inclusion of waterproof electronics with a 2.4Ghz radio system, you get more from a Mini than ever before. It features a mid-motor configuration for better balance, oil filled shocks, and a full range of option parts all in a total ready-to-run package. Everything about this buggy is designed to deliver a jaw-dropping experience.

Scaled-Down Version

Featuring TLR 2WD buggy engineering and performance in a 1/16th package, the Losi Mini-B Buggy is terrain-tearing and track-ready. The larger 1/16th scale is stable on the track generating quicker speeds and improved handling.

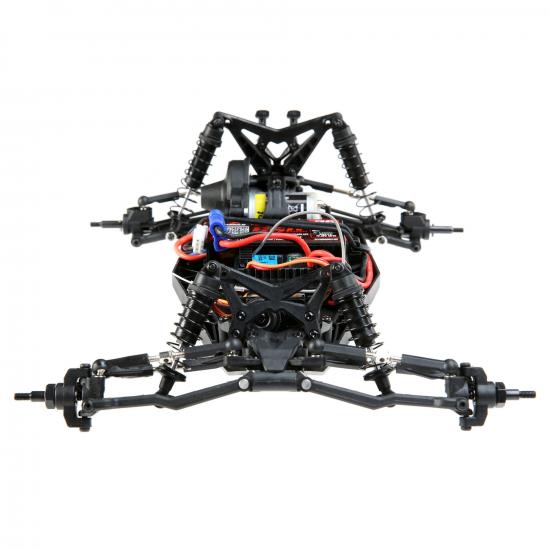

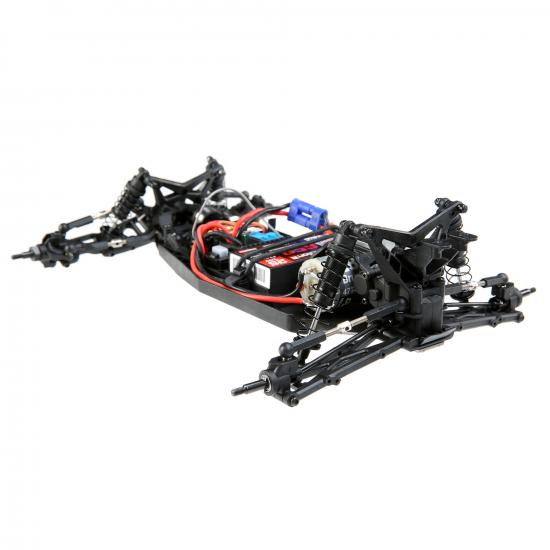

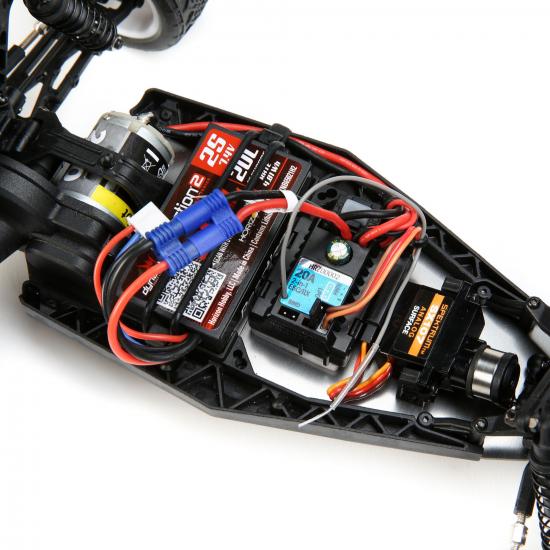

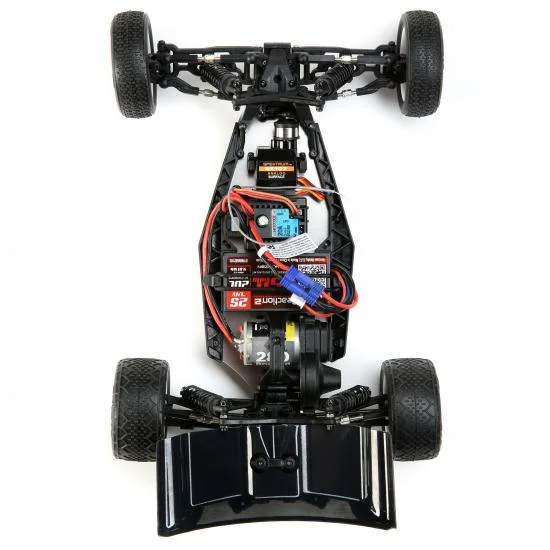

Mid Motor Configuration

The Mini-B comes standard with a mid-motor configuration. This not only replicates the 1/10th version but also provides a better balanced chassis allowing for better performance on multiple surfaces and also balances out steering and traction.

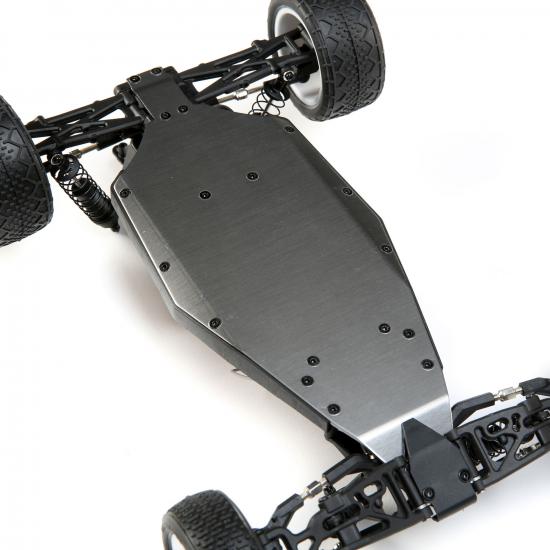

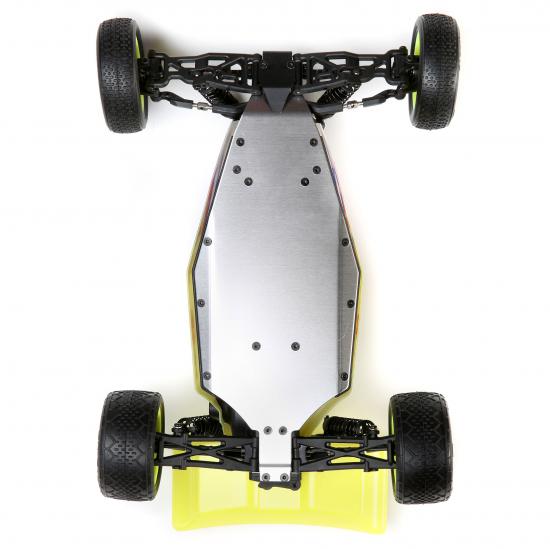

Aluminum Chassis

The Mini-B has been designed with a 1.5mm thick 6061-T6 Aluminum chassis plate. The aluminum chassis provides more strength and durability while vastly improving performance.

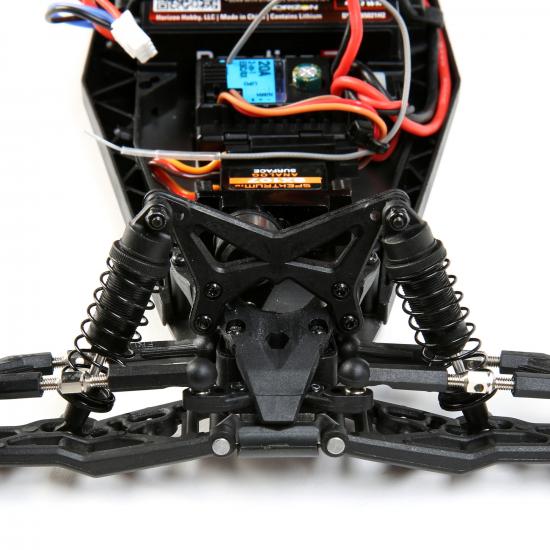

Threaded Oil Filled Shocks

The injection-molded shocks feature threaded shock collars allowing for easy preload/ride height adjustments. Additionally, the shock bodies feature a bottom loading, re-buildable shock cartridge with dual o-rings to help keep the oil in the shocks.

Ready To Run

The Mini-B comes fully assembled and ready to rock. Just install the included AAA batteries in the transmitter, charge the included LiPo battery with the included charger.

Dynamite Reaction 2.0 LiPo Battery

The Mini-B comes equipped with a Dynamite Reaction 2.0 7.4V 650mAh 2S 20C LiPo Battery for excellent performance and run time.

USB Charger

When we say entirely ready to run, we mean it. The Mini-B comes with a USB charger making charging your battery easy and convenient.

2.4Ghz Transmitter and Receiver

With features like throttle/steering reversing, throttle/steering travel adjust, the included 2.4Ghz transmitter packs a lot of features in a small package with the interference-free connection.

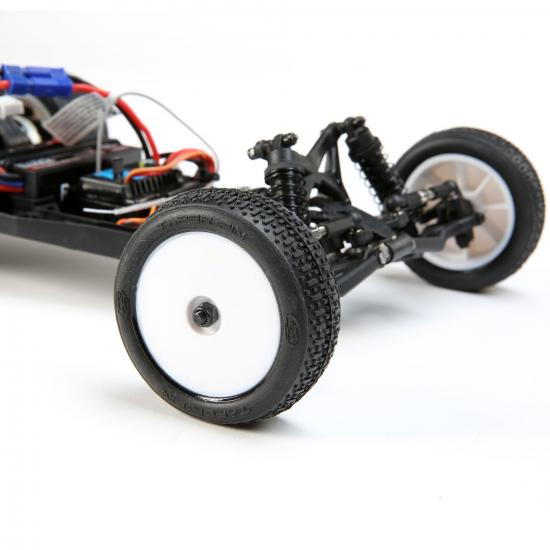

Taper Pin Front Tires

Mounted on dish wheels, the Taper Pin front tires replicate one of the most popular tires from Losi.

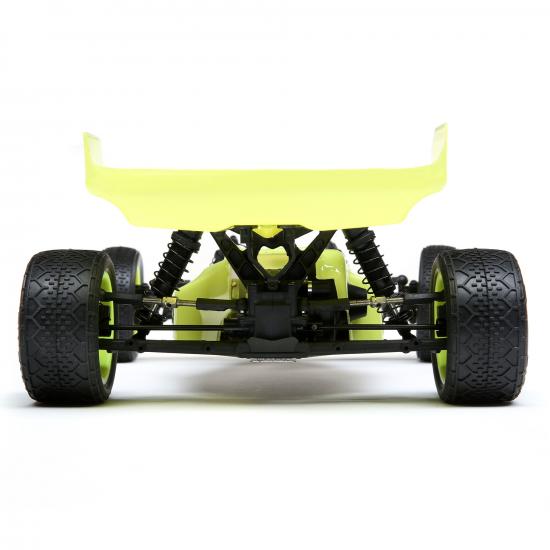

BK Bar Rear Tires

Mounted on dish wheels, the BK Bar rear tires replicate one of the most popular tires from Losi.

Full Ball Bearings*

The Mini-B comes equipped with ball bearings that enhance vehicle performance by reducing drivetrain friction and increased smoother, longer running.

*Less steering bell crank

Servo Saver

The Mini-B comes with an oversized three-wire Spektrum metal gear servo equipped with a servo saver that provides extra protection.

Waterproof Electronics*

All the Mini-B components are waterproof, so you can drive in any conditions with no problems.

*For details on waterproof standards, please refer to the product instruction manual

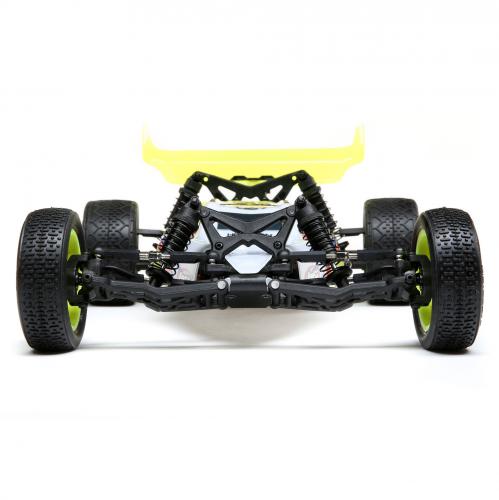

TLR 22 Buggy Suspension Geometry

The Mini-B suspension geometry has been derived from the TLR 22 Buggy platform providing balanced steering and traction from the optimized race design.

  Option Parts

The Mini-B has a full line of option parts available from aluminum upgrades, brushless motor, and much more.

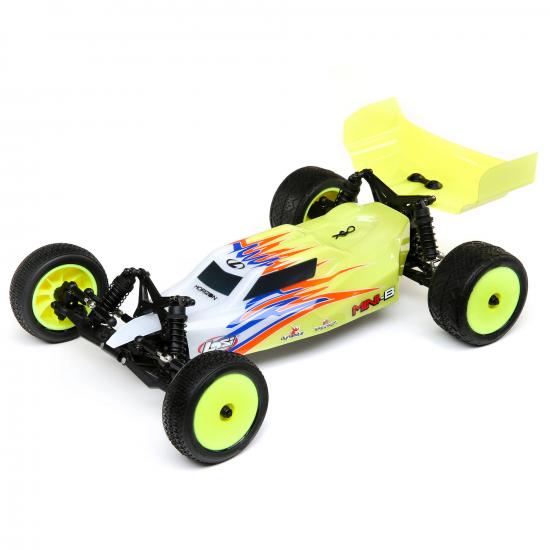

Mini-B: 1/16th 2wd Buggy Yellow/White Specfications:

• Approximate Assembly Time: Less than One Hour
• Ball Bearings: Complete, Less Steering
• Battery: Included
• Battery Input Lead: EC2
• Body: Mini-T 2.0, Polycarbonate, Screened
• Brakes: Integral with ESC
• Bushing Material: Plastic
• Charger: Included
• Chassis: 1.5mm Plate, 6061-T6 Aluminum
• Completion Level: Ready-To-Run
• Differential: Bevel Gear
• Drivetrain: 2WD
• Drive Type: Forward/Brake/Reverse
• Power Type: Electric
• Gear Pitch: 0.5MOD
• Motor Size: 280
• Motor Type: Brushed
• Pinion: 18T
• Product Height: 4" (102 mm)
• Product Length: 10.7" (272 mm)
• Product Width: 7" (178 mm)
• Radio: Included
• Receiver: Included
• Scale: 1/16
• Servos: Included
• Shock Type: 7mm bore, oil filled
• Speed Control: Included
• Spur Gear: 60T
• Suspension: Independent
• Tire Tread: Tapered Pin Front, BK Bar Rear
• Vehicle Type: Buggy
• Water-Resistant: Yes
• Wheelbase: 7.5 in (190.5mm)
• Wheel Type: Dish

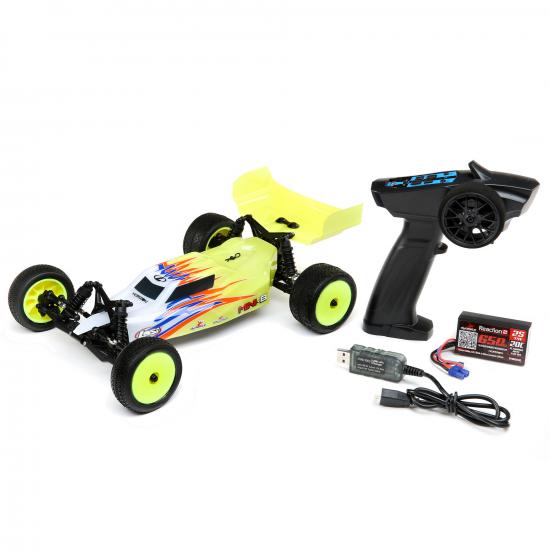

In The Box

• (1) Losi® 1/16 Mini-B™ RTR 2WD Buggy
• (1) 2.4GHz ESC/Receiver combo (installed)
• (1) Dynamite® 47T 280 Brushed Motor (installed)
• (1) Spektrum™ SX107 Micro Metal Gear Servo (installed)
• (1) Dynamite® 7.4V 650mAh 2S 20C LiPo Hardcase: EC2
• (1) Dynamite® USB 2S LiPo charger
• (1) 3-CH 2.4GHz Transmitter
• (4) AAA batteries for transmitter
• (1) Product Manual

Needed to Complete

• Nothing! Everything is included in the box!

• Brand: Losi
• Part No: LOS01016
• Scale: 1:16
• Build Level: Assembled (RTR)
• Vehicle Type: Buggy
• Power Source: Electric - Brushed
• Surface Type: Off Road
