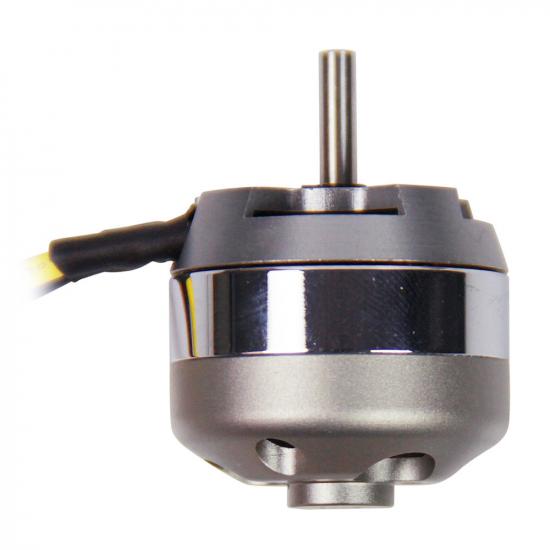

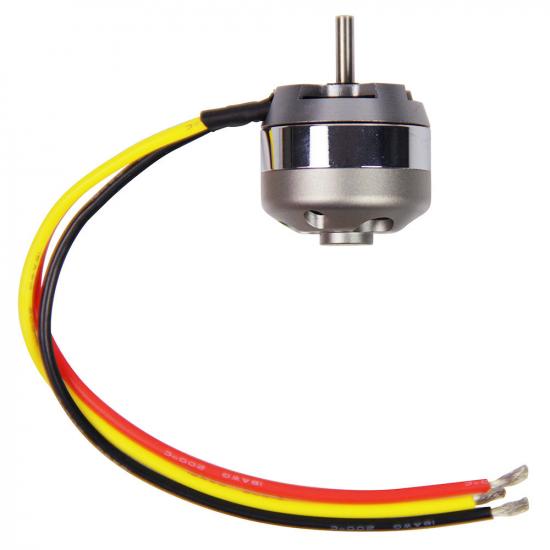

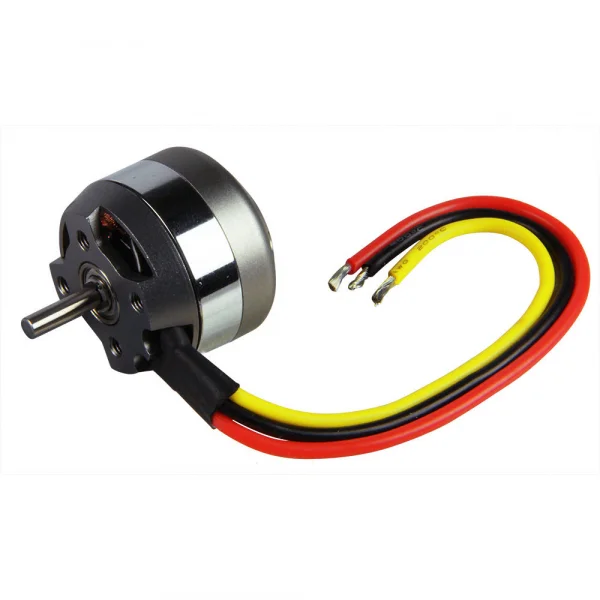

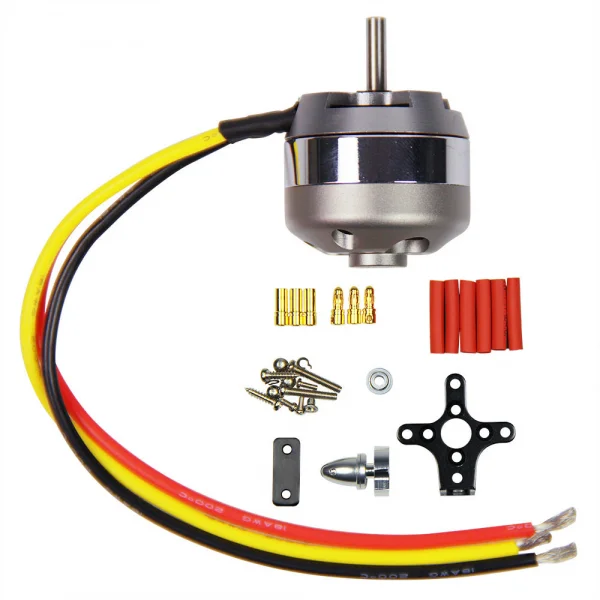

Multiplex Roxxy BL Outrunner (C28-24-34) - 1100Kv
Brand: Multiplex
Part No: MPX315078
Shadow Stock: Usually ships next day
The Multiplex Roxxy BL Outrunner (C28-24-34) 1100kV is a 14‑pole brushless outrunner motor designed for efficient, high‑torque performance without the need for a gearbox. Its construction makes it well suited to direct‑drive applications where smooth running and reliability are essential.
Featuring maximum copper fill and high‑quality neodymium magnets, this motor delivers excellent efficiency and crisp throttle response. Large precision ball bearings enhance durability and smoothness, and the design allows mounting from either end for flexible installation.
Key Features
- 14‑pole brushless outrunner design
- High efficiency from maximum copper filling and neodymium magnets
- Large precision ball bearings for smooth running
- Can be mounted by either end
- 1100kV
- 90W
- Voltage range: 7–12 V

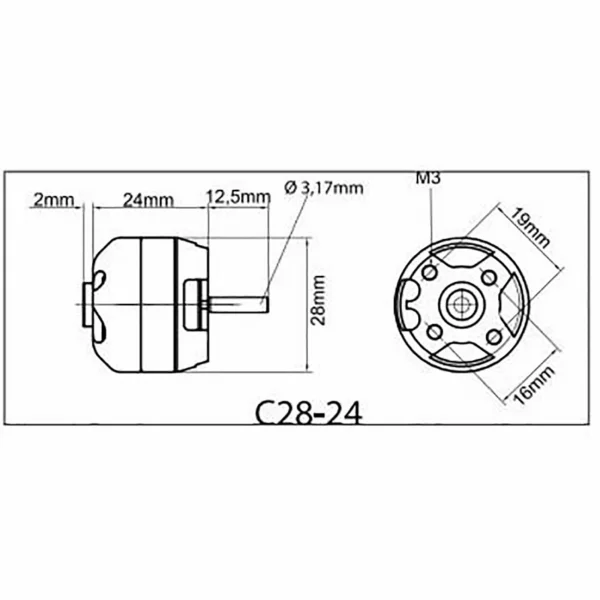

- 28 mm motor diameter
- 3.2 mm shaft diameter
Tech Specs
- Weight: 48 g (1.69 oz)
- Shipping weight: 0.14 kg (0.30 lb)
- Product length: 26 mm (1.02 in)
- Product diameter: 28 mm (1.10 in)
- Connector: Bullet
- Age recommendation: 14+
- Colour: Silver
- Material: Steel
Secured by Stripe
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted at either end
Suitable For
E-sailplanes up to 500g
Scale and sport up to 400g
Aerobatics and 3D up to 250g
Multiplex Roxxy BL Outrunner (C28-24-34) - 1100Kv Key Features:
- High efficiency due to maximum copper filling and use of high-quality neodymium magnets.
- Smooth running thanks to large precision ball bearings
- 1100kV
- 90W
- 28mm motor diameter.
- 3.2mm shaft diameter.
- Voltage range: 7 - 12V
Manuals & Parts Explosions:
Multiplex Roxxy BL Outrunner (C28-24-34) - 1100Kv Tech Specs:
- Weight: 48g / 1.69oz
- Shipping Weight: 0.14kg / 0.30lbs
- Product Length: 26mm / 1.02in
- Product Diameter: 28mm / 1.10in
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Silver
- Material: Steel
Key Info:
- Brand: Multiplex
- Part No: MPX315078
- Barcode: 4041033130780
