Description

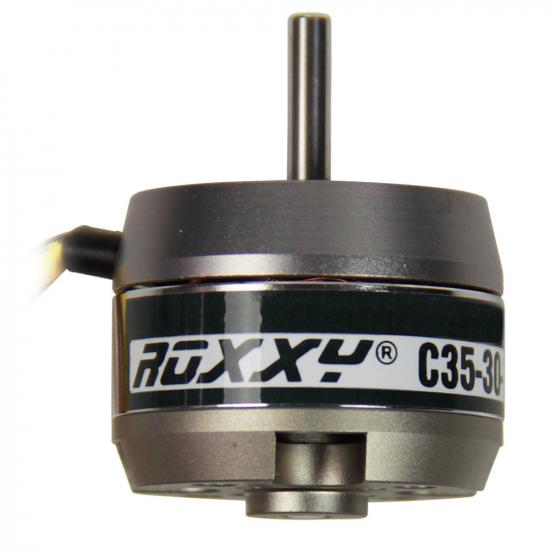

The Multiplex ROXXY BL Outrunner (C35-30-17), part number MPX314988, is a 14-pole brushless outrunner motor with neodymium magnets, finished in black.
Because it is an outrunner, it needs no reduction gearbox. The special construction often allows it to turn large propellers directly, which makes it well suited to direct-drive applications, while still giving efficient, high-torque power across a broad range of power levels.
Multiplex gives the motor a maximum copper fill ratio and neodymium magnets to help efficiency, and large precision ball races for smooth running. It can be mounted by either end, which leaves some flexibility when planning an installation. The manufacturer recommends it for ages 14 and over.

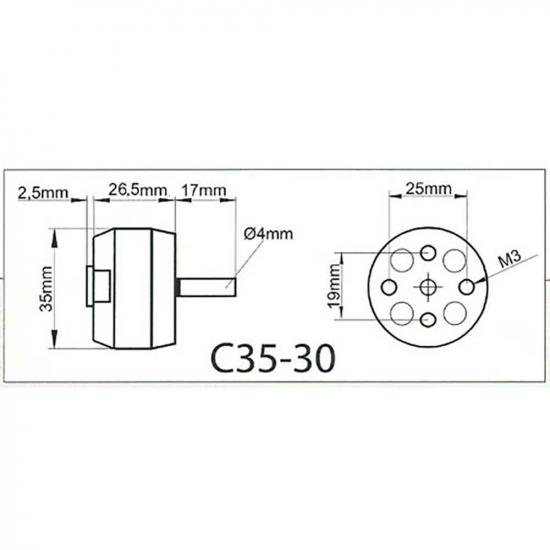

Specifications
- Weight: 78 g
- Length: 27 mm
- Diameter: 35 mm
- Colour: Black
Secured by Stripe
Multiplex ROXXY BL Outrunner (C35-30-17) Manuals & Guides
Specifications
14-pole brushless outrunner motors
Brushless motors with neodymium magnets represent the very latest form of electric power plant. Outrunners in particular require no reduction gearbox, and constitute efficient, high-torque motors covering a broad range of power levels.
The special construction of outrunner motors often enables them to drive large propellers without the need for a gearbox, so they are ideal for direct-drive applications.
- Maximum copper fill ratio and superior neodymium magnets for high efficiency
- Large, precision ballraces ensure smooth running
- Can be mounted by either end
Multiplex ROXXY BL Outrunner (C35-30-17) Key Features:
- Maximum copper fill ratio and superior neodymium magnets for high efficiency.
- Large, precision ball races ensure smooth running.
Multiplex ROXXY BL Outrunner (C35-30-17) Tech Specs:
- Weight: 78g / 2.75oz
- Shipping Weight: 0.16kg / 0.34lbs
- Product Length: 27mm / 1.06in
- Product Diameter: 35mm / 1.38in
- Age Recommendation: 14+
- Colour: Black
Key Info:
- Brand: Multiplex
- Part No: MPX314988
- Barcode: 4041033089880
