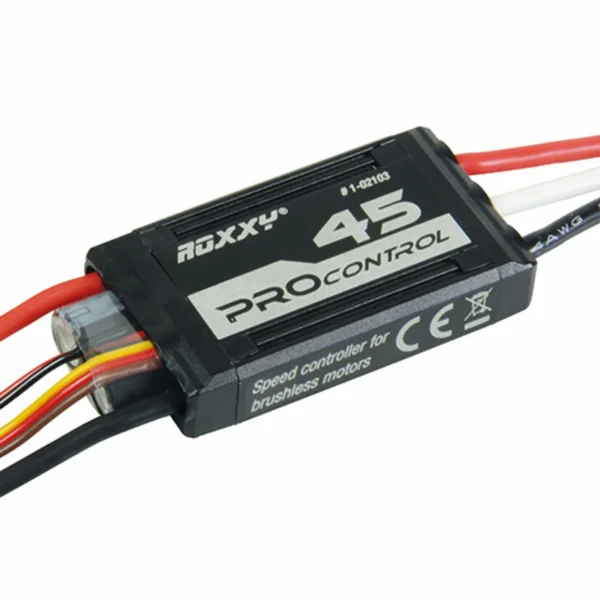

Multiplex ROXXY PROcontrol 45/5A S-BEC

The Multiplex ROXXY PROcontrol 45/5A S-BEC (MPX1-02103) is a robust controller for brushless motor setups, built around a heat-dissipating aluminium case and a powerful, adjustable S-BEC. Designed for precise throttle management and protection, it offers the confidence and control demanded by advanced RC applications, including suitability for helicopters.

Key Features

• Sturdy, heat dissipating aluminium case.
• Powerful S-BEC with adjustable output voltage.
• Accidental start-up protection.
• Over-temperature protection.
• Low voltage protection.
• Signal loss protection.
• Programmable using Roxxy PROcontrol unit.
• Custom options for a wide variety of brushless motors.
• Suitable for helicopters.
• Linear and soft start throttle curves.

Weights & Dimensions

• Weight: 65 g
• Length: 70 mm
• Width: 33 mm
• Height: 13 mm

Programming & Control

Setup is streamlined via the ROXXY PROcontrol programming unit, enabling fine-tuning for different brushless motors and applications. The adjustable S-BEC output voltage supports reliable receiver and servo power, while linear and soft start throttle curves aid smooth spool-up and control. Comprehensive safeguards help protect your model and electronics during operation.
