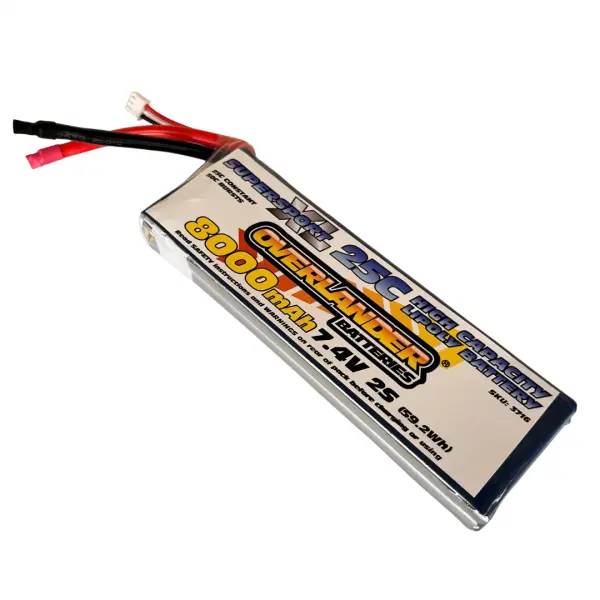

Overlander 8000mAh 2S LiPo Battery EC5 OL-3716

The Overlander 8000mAh 7.4V 2S 25C Supersport XL LiPo Battery - EC5, part number OL-3716, is a lithium polymer battery for large-scale radio-controlled models. Its 7.4V 2S configuration and 8000mAh capacity provide stored power for extended running, while the stated 25C discharge rate is suited to models with substantial power requirements. This battery is supplied with an EC5 connector.

Features

The Supersport XL format is intended for larger RC applications, including substantial vehicles and aircraft. The combination of capacity and voltage provides a balance between available power and operating duration. At 341g, the battery adds a measurable amount of weight to a model, so check the available battery space, balance requirements and connector arrangement before use.

The battery measures 160mm x 56mm x 20mm. These dimensions should be compared with the model's battery compartment before installation. The 25C discharge rating describes the stated continuous current capability, while the 2S layout identifies the two-cell LiPo configuration.

Specifications

• Battery type: Lithium Polymer (LiPo)
• Capacity: 8000mAh
• Voltage: 7.4V (2S)
• Discharge rate: 25C
• Dimensions: 160mm x 56mm x 20mm
• Weight: 341g
• Connector: EC5

LiPo Battery Safety

Use a compatible LiPo charger and follow the manufacturer's instructions for charging, discharging and storage. Do not overcharge or over-discharge the battery, and monitor its voltage and temperature during use. Never leave it unattended while charging, and secure it properly inside the model. Damaged or incorrectly handled LiPo batteries can present a fire, injury or failure risk. Dispose of the battery in line with local regulations when it reaches the end of its service life.
