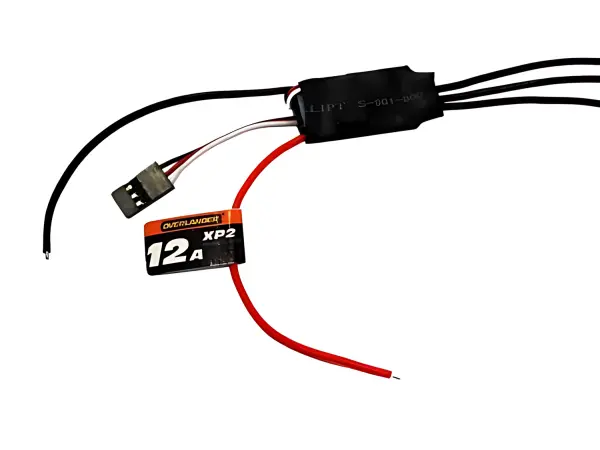

Overlander XP2 12A Brushless Speed Controller ESC
Brand: Overlander
Part No: OL-2607
£14.70
RRP £15.98
Shadow Stock: Usually ships within 4-5 days
The Overlander XP2 12A Brushless Speed Controller ESC (OL-2607) delivers compact, reliable control for sensorless brushless motors. Supporting 2S LiPo or 5–6 NiMH packs with a 1A/5V BEC, it offers smooth throttle response, robust protection features and simple setup via a compatible program card.
Key Features
- Full protection: low voltage, over-heat, throttle signal loss, startup protection and self-check
- Compatible with most sensorless brushless motors
- Excellent startup, linear throttle and quick response
- Max motor speed: 210,000 RPM (2-pole), 70,000 RPM (6-pole), 35,000 RPM (12-pole)
- Easy configuration with program card
- Automatic detection of throttle neutral point
- Three motor timing modes
- Three start-force adjustment modes
- Governor mode for heli
- Reverse motor direction
Specifications
- Continuous Current: 12A (Burst: 15A for 10 secs)
- Input Voltage: 2S LiPo or 5–6 NiMH
- BEC Output: 1A / 5V
- PCB: Low resistance design
- Dimensions: 38 x 18 x 6 mm
- Weight: 10 g
- Blue motor wire: 14AWG
Programming & Setup
- Configure settings via an optional program card
- System automatically detects throttle neutral point
Important Notes
- Manufacturer recommends a guideline of 1 servo per 1A of BEC capacity. Consider a separate RX pack or uprated UBEC when using four servos or more.
Secure Payments
Secured by Stripe
Overlander XP2 12A Brushless Speed Controller ESC DESCRIPTION This series of speed controllers have high technology and perfect function. Aiming at none-hall direct current brushless motors, they can set several parameters through program card or key on ESC and are convenient to use. XP2 12A Brushless speed controller features * Full protection feature including low voltage, over-heat, throttle signal lost, startup protection and self-check. * Compatible with most sensor less brushless motors. * Excellent startup performance, great throttle linear and quick throttle response. * Support highest motor speed 210,000RPM (2 poles), 70,000RPM (6 poles) and 35,000(12 poles). * Easy configured with program card. * System can automatically detect throttle neutral point. * 3 timing modes can match different motors. * 3 modes of start force adjustment. *Governor mode for heli * Reverse motor direction SPECIFICATION * Low resistance PCB * Input Voltage: Support 2 cell Li-Po (5-6 NiMh) * Continue current: 12A, (Burst max 15A 10 secs) * BEC output: 1A/5V * Dimensions: 38 x 18 x 6 mm * Weight: 10g * Blue Motor Wire 14AWG Manufacturers recommend Servo numbers to be limited to 1 servo per 1A of BEC. At Overlander we say you should consider a separate RX pack or uprated UBEC when using 4 servos or more
Key Info:
Key Info:
- Brand: Overlander
- Part No: OL-2607
- Barcode: 5060386110545
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
