Overlander XP2 20A Brushless ESC – RTF (OL-2725)
Brand: Overlander
Part No: OL-2725
£16.55
RRP £17.99
Shadow Stock: Usually ships within 4-5 days
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the Overlander XP2 20A Brushless ESC - RTF Speed Controller
Description

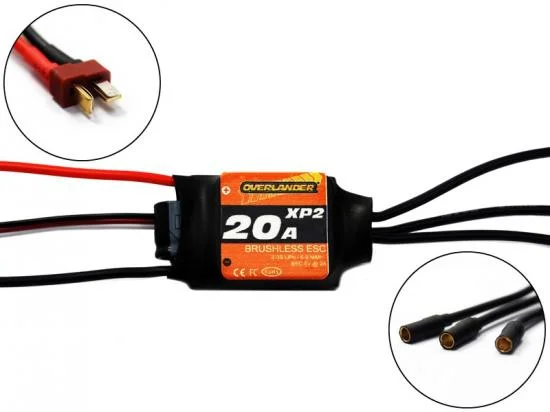

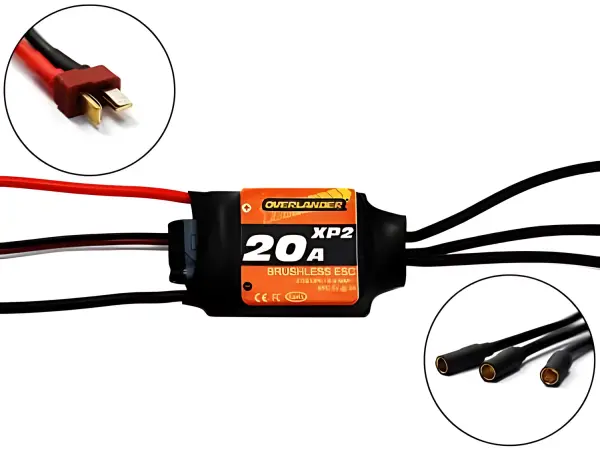

The Overlander XP2 20A Brushless ESC – RTF Speed Controller (OL-2725) is a compact, ready-to-fly controller pre-fitted with a Deans battery connector and 3.2 mm gold motor connectors. Designed for sensorless brushless motors, it offers smooth throttle response, reliable protection features and simple setup via the ESC key or compatible program card.
Key Features
- Full protection: low voltage, over-heat, throttle signal loss, startup protection and self-check
- Compatible with most sensorless brushless motors
- Excellent startup performance, linear throttle and quick response
- Supports highest motor speeds: 210,000 RPM (2 poles), 70,000 RPM (6 poles), 35,000 RPM (12 poles)
- Easy configuration with program card; automatic throttle neutral detection
- Three timing modes and three start force modes
- Governor mode for heli applications
- Reverse motor direction
Specifications
- Continuous current: 20A (burst 25A for 10 secs)
- Input voltage: 2–3S Li‑Po or 5–9 cell NiMH
- BEC output: 2A / 5V
- Dimensions: 42 × 25 × 8 mm
- Weight: 19 g
- Low-resistance PCB
- Wiring: Blue motor wire 14 AWG; red/black battery wires 12 AWG
- Connectors fitted: Deans battery; 3.2 mm gold motor connectors
Manufacturer Notes
- Servo loading guideline: limit to approximately one servo per 1A of BEC output. Consider a separate RX pack or uprated UBEC when using four servos or more.
Secure Payments
Secured by Stripe
Overlander XP2 20A Brushless ESC - RTF Speed Controller Manuals & Guides
How-To Guides & Articles
Specifications
Overlander XP2 20A Brushless ESC - RTF Speed Controller READY TO FLY! - Now fitted with Deans connector for the battery and 3.2mm gold connectors for the motor! DESCRIPTION This series of speed controllers have high technology and perfect function. Aiming at none-hall direct current brushless motors, they can set several parameters through program card or key on ESC and are convenient to use. XP2 20A Brushless speed controller features * Full protection feature including low voltage, over-heat, throttle signal lost, startup protection and self-check. * Compatible with most sensor less brushless motors. * Excellent startup performance, great throttle linear and quick throttle response. * Support highest motor speed 210,000RPM (2 poles), 70,000RPM (6 poles) and 35,000(12 poles). * Easy configured with program card. * System can automatically detect throttle neutral point. * 3 timing modes can match different motors. * 3 modes of start force adjustment. *Governor mode for heli * Reverse motor direction SPECIFICATION * Low resistance PCB * Input Voltage: Support 2-3 cells Li-Po Batteries, 5-9 cells Nimh * Continue current: 20A, (Burst max 25A 10 secs) * BEC output: 2A/ 5V * Dimensions: 42 x 25 x 8 mm * Weight: 19g * Blue Motor Wire 14AWG * Red and Black Battery Wire 12AWG Manufacturers recommend Servo numbers to be limited to 1 servo per 1A of BEC. At Overlander we say you should consider a separate RX pack or uprated UBEC when using 4 servos or more
Key Info:
Key Info:
- Brand: Overlander
- Part No: OL-2725
- Barcode: 5060386115687
