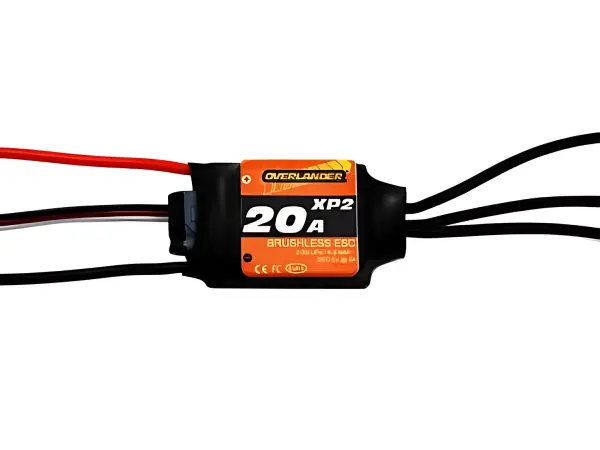

Overlander XP2 20A Brushless ESC - OL-2609
Brand: Overlander
Part No: OL-2609
Shadow Stock: Usually ships within 4-5 days
Finance options available at checkout.
Description
The Overlander XP2 20A Brushless Speed Controller (OL-2609) combines advanced control with a compact, lightweight design. Configure settings via an optional program card or the ESC key, and benefit from smooth throttle response, strong start-up behaviour and comprehensive protection features in a unit sized for tight installations.
Key Features
- Full protection suite: low voltage cutoff, over-heat, throttle signal loss, start-up protection and self-check
- Excellent start-up performance, linear throttle feel and quick response
- Supports very high motor speeds: up to 210,000 RPM (2 poles), 70,000 RPM (6 poles) and 35,000 RPM (12 poles)
- Easy configuration with program card; automatic detection of throttle neutral
- Three timing modes and three start force options
- Heli governor mode and reversible motor direction
Specifications
- PCB: Low resistance design
- Input voltage: 2–3S Li‑Po; 5–9 cells NiMH
- Continuous current: 20A (burst max 25A for 10 seconds)
- BEC output: 2A / 5V
- Dimensions: 42 x 25 x 8 mm
- Weight: 19 g
- Wiring: Blue motor wire 14AWG; red/black battery wires 12AWG
Suggested Compatibility
- Most sensorless brushless motors
Usage Guidance
- Servo load guideline: limit to approximately 1 servo per 1A of BEC. Consider a separate RX pack or an uprated UBEC when using four servos or more.
Secured by Stripe
Overlander XP2 20A Brushless Speed Controller ESC Manuals & Guides
How-To Guides & Articles
Specifications
Overlander XP2 20A Brushless Speed Controller ESC DESCRIPTION This series of speed controllers have high technology and perfect function. Aiming at none-hall direct current brushless motors, they can set several parameters through program card or key on ESC and are convenient to use. XP2 20A Brushless speed controller features * Full protection feature including low voltage, over-heat, throttle signal lost, startup protection and self-check. * Compatible with most sensor less brushless motors. * Excellent startup performance, great throttle linear and quick throttle response. * Support highest motor speed 210,000RPM (2 poles), 70,000RPM (6 poles) and 35,000(12 poles). * Easy configured with program card. * System can automatically detect throttle neutral point. * 3 timing modes can match different motors. * 3 modes of start force adjustment. *Governor mode for heli * Reverse motor direction SPECIFICATION * Low resistance PCB * Input Voltage: Support 2-3 cells Li-Po Batteries, 5-9 cells Nimh * Continue current: 20A, (Burst max 25A 10 secs) * BEC output: 2A/ 5V * Dimensions: 42 x 25 x 8 mm * Weight: 19g * Blue Motor Wire 14AWG * Red and Black Battery Wire 12AWG Manufacturers recommend Servo numbers to be limited to 1 servo per 1A of BEC. At Overlander we say you should consider a separate RX pack or uprated UBEC when using 4 servos or more
