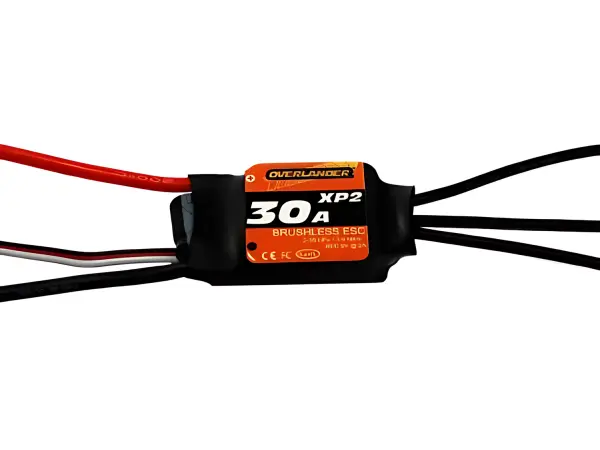

Overlander XP2 30A Brushless Speed Controller ESC

The Overlander XP2 30A Brushless Speed Controller ESC (OL-2610) delivers smooth throttle control, dependable protection features and flexible setup for a wide range of RC applications. With support for 2–3S Li-Po or 5–9 cell NiMH power and a built-in 2A/5V BEC, it provides a compact, low-resistance solution with responsive performance.

Key Features

• Full protection suite: low voltage, over-heat, throttle signal loss, startup protection and self-check
• Excellent startup performance with linear, quick throttle response
• Suggested compatibility: most sensorless brushless motors
• Supports max motor speeds: 210,000 RPM (2-pole), 70,000 RPM (6-pole), 35,000 RPM (12-pole)
• Programmable via program card; automatic throttle neutral detection
• Three timing modes to match different motors
• Three start force settings
• Governor mode for heli
• Reverse motor direction

Specifications

• Continuous current: 30A (burst 40A for 10 secs)
• Input voltage: 2–3 cell Li-Po; 5–9 cell NiMH
• BEC output: 2A / 5V
• Dimensions: 42 × 25 × 8 mm
• Weight: 23 g
• Low-resistance PCB
• Wiring: Blue motor wire 14AWG; Red/Black battery wires 12AWG

Suggested Compatibility

• Most sensorless brushless motors
• Power systems using 2–3S Li-Po or 5–9 cell NiMH packs

Notes

Manufacturers recommend limiting servo count to approximately 1 servo per 1A of BEC. Overlander advises considering a separate RX pack or uprated UBEC when using four servos or more.
