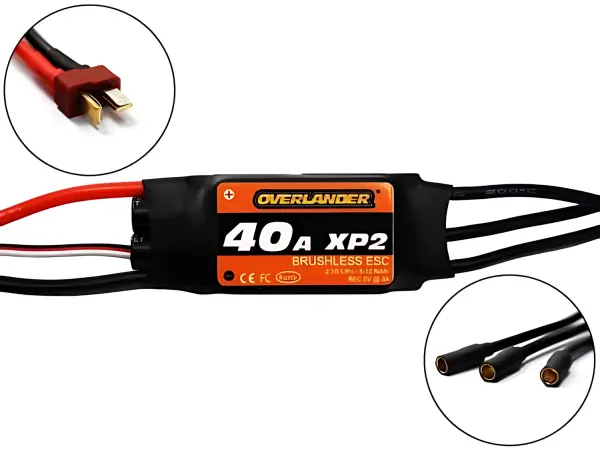

Overlander XP2 40A Brushless ESC - RTF Speed Controller
Brand: Overlander
Part No: OL-2723
In Stock: Usually ships same day
The Overlander XP2 40A Brushless ESC – RTF Speed Controller (OL-2723) delivers reliable, easy setup performance for sensorless brushless power systems. Supplied ready to fly, it comes fitted with a Deans battery connector and 3.2 mm gold motor connectors for straightforward installation. Supporting 2–4S LiPo or 5–12 NiMH packs and a 3A/5V BEC, it suits a wide range of electric RC applications.
Key Features
- Comprehensive protection: low voltage, over‑temperature, throttle signal loss, startup protection and self‑check
- Compatible with most sensorless brushless motors
- Smooth startup, excellent throttle linearity and quick response
- High RPM capability: up to 210,000 RPM (2‑pole), 70,000 RPM (6‑pole) and 35,000 RPM (12‑pole)
- Easy configuration via program card; automatic throttle neutral detection
- Three timing modes to match different motors
- Three start‑force adjustment modes
- Heli governor mode
- Reverse motor direction
Specifications
- Continuous / burst current: 40A / 55A (10 secs)
- Input voltage: 2–4S Li‑Po or 5–12 NiMH
- BEC output: 3A / 5V
- Dimensions: 68 × 25 × 8 mm
- Weight: 34 g
- Low‑resistance PCB
- Wiring: 14AWG motor leads (blue), 12AWG battery leads (red/black)
- Connectors: Deans (battery), 3.2 mm gold (motor)
Notes
- As a guide, allow approximately one servo per 1A of BEC output. Consider a separate RX pack or uprated UBEC when using four or more servos.
Pre‑fitted connectors and straightforward programming make the Overlander XP2 40A ESC a practical RTF choice with dependable protection and tuning options.
Secured by Stripe
Overlander XP2 40A Brushless ESC - RTF Speed Controller READY TO FLY! - Now fitted with Deans connector for the battery and 3.2mm gold connectors for the motor! DESCRIPTION This series of speed controllers have high technology and perfect function. Aiming at none-hall direct current brushless motors, they can set several parameters through program card or key on ESC and are convenient to use. XP2 40A Brushless speed controller features * Full protection feature including low voltage, over-heat, throttle signal lost, startup protection and self-check. * Compatible with most sensor less brushless motors. * Excellent startup performance, great throttle linear and quick throttle response. * Support highest motor speed 210,000RPM (2 poles), 70,000RPM (6 poles) and 35,000(12 poles). * Easy configured with program card. * System can automatically detect throttle neutral point. * 3 timing modes can match different motors. * 3 modes of start force adjustment. *Governor mode for heli * Reverse motor direction SPECIFICATION * Low resistance PCB * Input Voltage: Support 2-4 cell Li-Po, 5-12 Nimh * Continue current: 40A, (Burst max 55A 10 secs) * BEC output: 3A/5V * Dimensions: 68 x 25 x 8 mm * Weight: 34g * Blue Motor Wire 14AWG * Red and Black Battery Wire 12AWG Manufacturers recommend Servo numbers to be limited to 1 servo per 1A of BEC. At Overlander we say you should consider a separate RX pack or uprated UBEC when using 4 servos or more
Key Info:
- Brand: Overlander
- Part No: OL-2723
- Barcode: 5060386115663
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
Yes, it should work fine on the Wot 4. However to adjust additional settings you'd also benefit from the program card.
