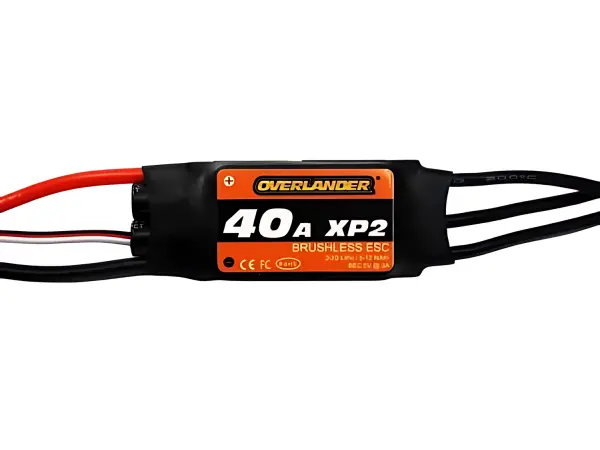

Overlander XP2 40A Brushless Speed Controller – OL-2611
Brand: Overlander
Part No: OL-2611
In Stock: Usually ships same day
Finance options available at checkout.
Description
The Overlander XP2 40A Brushless Speed Controller ESC (OL-2611) delivers smooth, precise throttle control and robust protection for sensorless brushless power systems. With support for 2–4S Li‑Po or 5–12 NiMH packs and an integrated 3A/5V BEC, this compact unit is easy to configure and offers dependable performance, including a dedicated governor mode for heli setups.
Key Features
- Full protection: low-voltage cutoff, over-heat, throttle signal loss, startup protection and self-check
- Suggested compatibility: most sensorless brushless motors
- Excellent start-up performance with linear throttle and quick response
- Supports motor speeds up to 210,000 RPM (2‑pole), 70,000 RPM (6‑pole) and 35,000 RPM (12‑pole)
- Easy configuration via program card or ESC key
- Automatic throttle neutral point detection
- Three timing modes to match different motors
- Three start force adjustment modes
- Governor mode for heli applications
- Reversible motor direction
Specifications
- Continuous current: 40A; burst: 55A (10 s)
- Input voltage: 2–4S Li‑Po or 5–12 NiMH
- BEC output: 3A/5V
- Dimensions: 68 × 25 × 8 mm
- Weight: 34 g
- Wiring: blue motor lead 14AWG; red/black battery leads 12AWG
- Low-resistance PCB design
Setup Notes
- BEC load guideline: approximately one servo per 1A of BEC capacity. Consider a separate RX pack or uprated UBEC when using four servos or more.
Secured by Stripe
Overlander XP2 40A Brushless Speed Controller ESC Manuals & Guides
How-To Guides & Articles
Specifications
Overlander XP2 40A Brushless Speed Controller ESC DESCRIPTION This series of speed controllers have high technology and perfect function. Aiming at none-hall direct current brushless motors, they can set several parameters through program card or key on ESC and are convenient to use. XP2 40A Brushless speed controller features * Full protection feature including low voltage, over-heat, throttle signal lost, startup protection and self-check. * Compatible with most sensor less brushless motors. * Excellent startup performance, great throttle linear and quick throttle response. * Support highest motor speed 210,000RPM (2 poles), 70,000RPM (6 poles) and 35,000(12 poles). * Easy configured with program card. * System can automatically detect throttle neutral point. * 3 timing modes can match different motors. * 3 modes of start force adjustment. *Governor mode for heli * Reverse motor direction SPECIFICATION * Low resistance PCB * Input Voltage: Support 2-4 cell Li-Po, 5-12 Nimh * Continue current: 40A, (Burst max 55A 10 secs) * BEC output: 3A/5V * Dimensions: 68 x 25 x 8 mm * Weight: 34g * Blue Motor Wire 14AWG * Red and Black Battery Wire 12AWG Manufacturers recommend Servo numbers to be limited to 1 servo per 1A of BEC. At Overlander we say you should consider a separate RX pack or uprated UBEC when using 4 servos or more
