Overlander XP2 40A SBEC Brushless ESC (RTF) - OL-2722
Brand: Overlander
Part No: OL-2722
£27.59
RRP £29.99
Usually ships within 4-5 days
UK Delivery
Get it by Tuesday 10th Nov
Store Collection (Cannock)
Monday 9th Nov, once stock arrives
Finance options available at checkout.
Customers Also Buy
Popular with customers who buy products like the Overlander XP2 40A SBEC Brushless ESC - RTF Speed Controller
Description

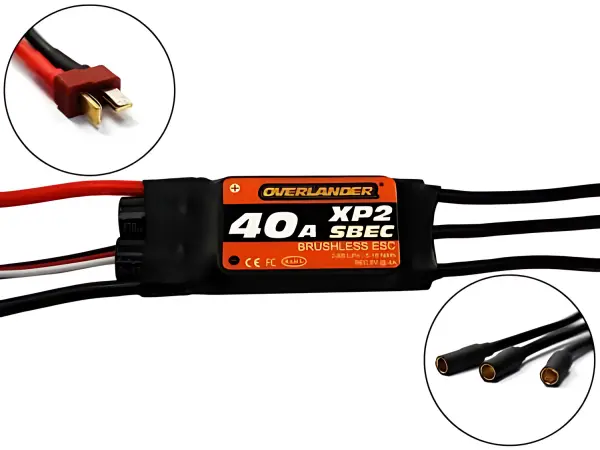

The Overlander XP2 40A SBEC Brushless ESC (OL-2722) is a ready-to-fly speed controller, pre-fitted with a Deans battery connector and 3.2 mm gold motor bullets. Designed for sensorless brushless systems, it delivers smooth, linear throttle control and robust protection in a compact, low-resistance package. Parameters can be configured via program card or the ESC key for quick setup.
Key Features
- Full protection features: low voltage, over-heat, throttle signal loss, startup protection and self-check.
- Suggested compatibility: most sensorless brushless motors.
- Excellent startup performance, linear throttle and quick response.
- Supports motor speeds up to 210,000 RPM (2-pole), 70,000 RPM (6-pole) and 35,000 RPM (12-pole).
- Easy configuration with program card.
- Automatic throttle neutral detection.
- Three timing modes to match different motors.
- Three start-force levels.
- Governor mode for heli.
- Motor direction reversible.
- Pre-fitted connectors: Deans battery plug and 3.2 mm gold motor connectors.
Specifications
- Input voltage: 2–6S Li-Po; 5–18 NiMH.
- Continuous current: 40 A; burst 55 A for 10 s.
- SBEC output: 4 A / 5 V.
- Dimensions: 68 x 25 x 12 mm.
- Weight: 42 g.
- Battery wire: 12 AWG (red/black).
- Blue motor wire: 14 AWG.
- Low-resistance PCB.
Usage Notes
- Servo guideline: approximately 1 servo per 1 A of BEC. Consider a separate RX pack or uprated UBEC when using four servos or more.
