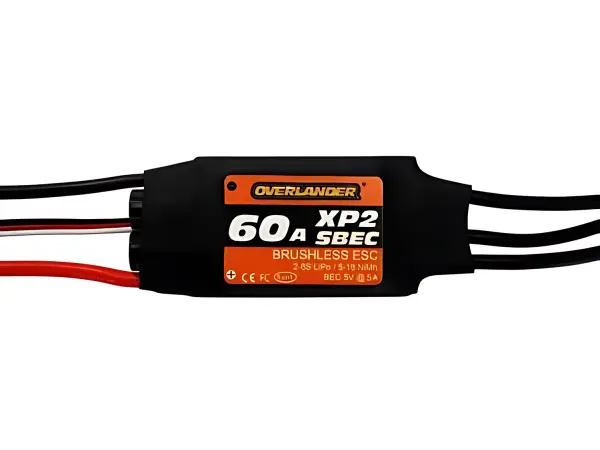

Overlander XP2 60A SBEC Brushless Speed Controller ESC
Brand: Overlander
Part No: OL-2608
£35.87
RRP £38.99
In Stock: Usually ships same day
The Overlander XP2 60A SBEC Brushless Speed Controller (OL-2608) delivers dependable power management and smooth, linear throttle control for RC models. A 5A/5V SBEC supports modern radio systems, while comprehensive protection features and straightforward programming via a program card or the ESC key make setup simple.
Key Features
- Full protection suite: low voltage, over-heat, throttle signal loss, startup protection and self-check.
- Suggested compatibility: most sensorless brushless motors.
- Excellent startup performance with great throttle linearity and quick response.
- Supports motor speeds up to 210,000 RPM (2-pole), 70,000 RPM (6-pole) and 35,000 RPM (12-pole).
- Easy configuration via program card or ESC key, with automatic throttle neutral detection.
- Three timing modes to match different motors and three start force settings.
- Governor mode for heli and reversible motor direction.
Specifications
- Continuous current: 60A (burst max 80A for 10 seconds)
- Input voltage: 2–6 cell Li-Po or 5–18 NiMH
- BEC output: 5V / 5A (SBEC)
- PCB: Low resistance
- Dimensions: 77 x 35 x 14 mm
- Weight: 53.4 g
- Motor wire: 14AWG (blue)
- Battery wires: 12AWG (red/black)
Suggested Compatibility
- Sensorless brushless motors
- Power systems using 2–6S Li-Po or 5–18 NiMH packs
- Motor pole counts up to 12 within the stated RPM limits
BEC Guidance
- Manufacturers recommend roughly 1 servo per 1A of BEC. Consider a separate RX pack or uprated UBEC when using 4 or more servos.
Secure Payments
Secured by Stripe
Overlander XP2 60A SBEC Brushless Speed Controller ESC DESCRIPTION This series of speed controllers have high technology and perfect function. Aiming at none-hall direct current brushless motors, they can set several parameters through program card or key on ESC and are convenient to use. XP2 SBEC 60A Brushless speed controller features * Full protection feature including low voltage, over-heat, throttle signal lost, startup protection and self-check. * Compatible with most sensor less brushless motors. * Excellent startup performance, great throttle linear and quick throttle response. * Support highest motor speed 210,000RPM (2 poles), 70,000RPM (6 poles) and 35,000(12 poles). * Easy configured with program card. * System can automatically detect throttle neutral point. * 3 timing modes can match different motors. * 3 modes of start force adjustment. *Governor mode for heli * Reverse motor direction SPECIFICATION * Low resistance PCB * Input Voltage: Support 2-6 cell Li-Po, 5-18 Nimh * Continue current: 60A, (Burst max 80A 10 secs) * BEC output: 5A/5V * Dimensions: 77 x 35 x 14 mm * Weight: 53.4g * Blue Motor Wire 14AWG * Red and Black Battery Wire 12AWG Manufacturers recommend Servo numbers to be limited to 1 servo per 1A of BEC. At Overlander we say you should consider a separate RX pack or uprated UBEC when using 4 servos or more
