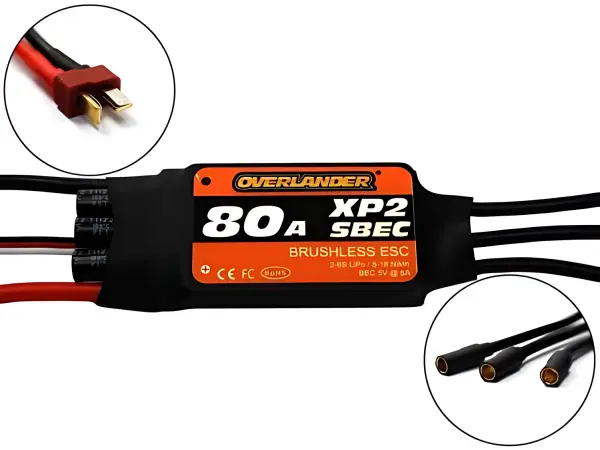

Overlander XP2 80A SBEC Brushless ESC - OL-2720
Brand: Overlander
Part No: OL-2720
Shadow Stock: Usually ships within 4-5 days
Finance options available at checkout.
Description
The Overlander XP2 80A SBEC Brushless ESC (OL-2720) is a ready-to-fly, programmable speed controller designed for reliable performance and straightforward setup. Supplied pre-fitted with a Deans battery connector and 4 mm gold motor bullets, it offers smooth throttle response, robust protection features and convenient configuration via a program card or the ESC button.
Key Features
- Full protection features including low voltage cut-off, overheat, throttle signal loss, start-up protection and self-check
- Suggested compatibility with most sensorless brushless motors
- Excellent start-up behaviour, linear throttle and quick response
- Supports motor speeds up to 210,000 RPM (2-pole), 70,000 RPM (6-pole) and 35,000 RPM (12-pole)
- Simple setup via program card; automatic throttle neutral detection
- Three timing modes and three start-force options
- Heli governor mode and reversible motor direction
- Pre-fitted Deans battery connector and 4 mm gold motor bullets
Specifications
- Input Voltage: 5.5–26 V (supports 2–6 LiPo or 5–18 NiMH)
- Continuous Current: 80 A (100 A burst for 10 s)
- SBEC Output: 5 V / 5 A
- Dimensions: 86 x 38 x 12 mm
- Weight: 76.1 g
- Battery Leads: 12 AWG (red/black)
- Motor Leads: 14 AWG (blue)
Usage Notes
- Manufacturer guidance: allow approximately one servo per 1 A of BEC current.
- For setups using four or more servos, consider a separate RX pack or an uprated UBEC.
Secured by Stripe
Overlander XP2 80A SBEC Brushless ESC - RTF Speed Controller Manuals & Guides
How-To Guides & Articles
Specifications
XP2 SBEC-80A Programmable Brushless ESC - RTF Speed Controller READY TO FLY! - Now fitted with Deans connector for the battery and 4mm gold connectors for the motor! DESCRIPTION This series of speed controllers have high technology and perfect function. Aiming at none-hall direct current brushless motors, they can set several parameters through program card or key on ESC and are convenient to use. XP2 SBEC-80A Brushless speed controller features * Full protection feature including low voltage, over-heat, throttle signal lost, start-up protection and self-check. * Compatible with most sensor less brushless motors. * Excellent start-up performance, great throttle linear and quick throttle response. * Support highest motor speed 210,000RPM (2 poles), 70,000RPM (6 poles) and 35,000(12 poles). * Easy configured with program card. * System can automatically detect throttle neutral point. * 3 timing modes can match different motors. * 3 modes of start force adjustment. *Governor mode for heli * Reverse motor direction SPECIFICATION * Low resistance PCB * Input Voltage: 5.5V - 26V (Support 2-6 Lithium Batteries, 5-18 Nimh) * Continue current: 80A, (Burst max 100A 10 secs) * BEC output: 5A/5V * Dimensions: 86 x 38 x 12 mm * Weight: 76.1g * Blue Motor Wire 14AWG * Red and Black Battery Wire 12AWG Manufacturers recommend Servo numbers to be limited to 1 servo per 1A of BEC. At Overlander we say you should consider a separate RX pack or uprated UBEC when using 4 servos or more
Key Info:
- Brand: Overlander
- Part No: OL-2720
- Barcode: 5060386115632
