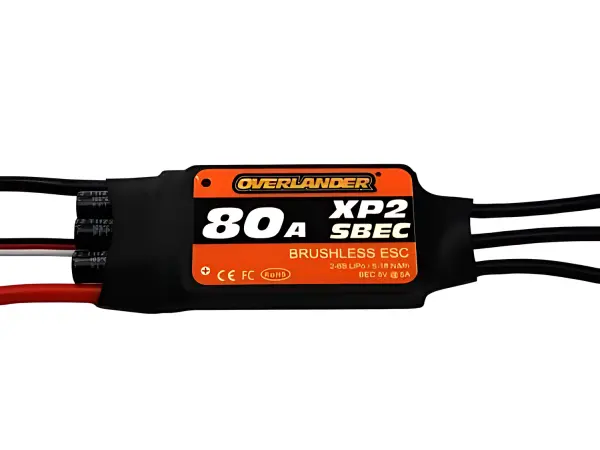

Overlander XP2 80A SBEC Brushless ESC

The Overlander XP2 SBEC-80A Brushless Speed Controller (OL-2613) is a programmable ESC designed for sensorless brushless motors. It delivers smooth start-up, linear throttle control and fast response, with a robust 5A/5V SBEC to power your receiver and servos. Comprehensive protection features and high RPM capability make it a dependable choice across demanding applications, including heli setups with governor mode.

Key Features

• Full protection: low voltage, over-heat, throttle signal loss, start-up protection and self-check
• Suggested compatibility: most sensorless brushless motors
• Excellent start-up performance with great throttle linearity and quick response
• Supports up to 210,000RPM (2 poles), 70,000RPM (6 poles), 35,000RPM (12 poles)
• Automatic throttle neutral point detection
• Three timing modes to match different motors
• Three start force adjustment modes
• Governor mode for heli
• Reverse motor direction
• Easy configuration with a program card or the ESC key

Specifications

• Low resistance PCB
• Input voltage: 5.5–26V (supports 2–6 LiPo, 5–18 NiMH)
• Continuous current: 80A; burst max 100A (10 secs)
• BEC output: 5V / 5A (SBEC)
• Dimensions: 86 x 38 x 12 mm
• Weight: 76.1 g
• Motor wires: Blue 14AWG
• Battery wires: Red & Black 12AWG

The manufacturer recommends limiting servo count to approximately 1 servo per 1A of BEC output. Overlander advise considering a separate RX pack or an uprated UBEC when using four servos or more.
