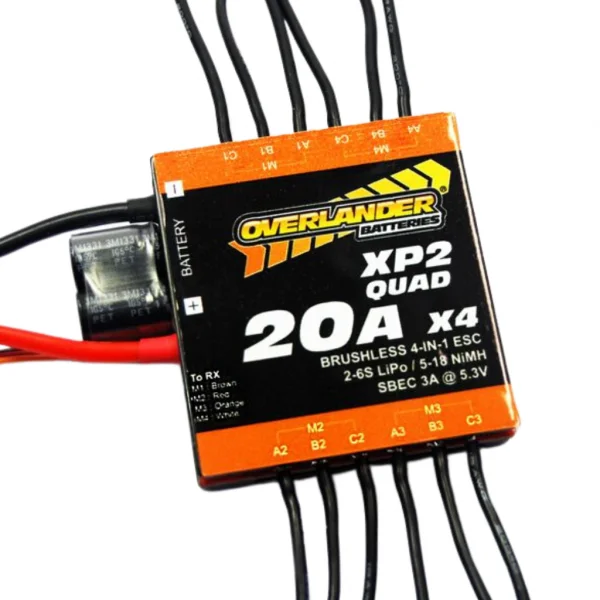

Overlander XP2 QUAD 20A Brushless ESC for Quadcopters

The Overlander XP2 QUAD 20A Brushless ESC (OL-2693) integrates four 20A controllers into a single, ready-to-fly 4-in-1 unit for clean, simplified quadcopter builds. Pre-fitted with a Deans battery connector and 3.2 mm gold motor connectors, it helps reduce wiring time while delivering reliable power and control to each motor.

Key Features

• 4-in-1 design: integrates 4 x 20A brushless ESCs in one compact unit
• Pre-wired and RTF: Deans battery connector and 3.2 mm gold motor bullets
• Automatic throttle neutral point detection
• Selectable start modes, motor timing, governor, motor direction and brake modes
• Switch‑mode BEC per ESC: 3A / 5V
• Suggested compatibility: Overlander motors and batteries

Specifications

• Output per ESC: 20A continuous, 40A burst (up to 10 seconds)
• Input voltage: 2–6S LiPo or 5–12 cell NiMH
• Configuration: 4-in-1 brushless speed controller (RTF)
• Part number: OL-2693

Designed to streamline multirotor installations, the XP2 QUAD provides flexible setup options alongside dependable current handling for quadcopters running on LiPo or NiMH power. Its configurable parameters let you tailor startup, timing and braking to your motors and flying style.
