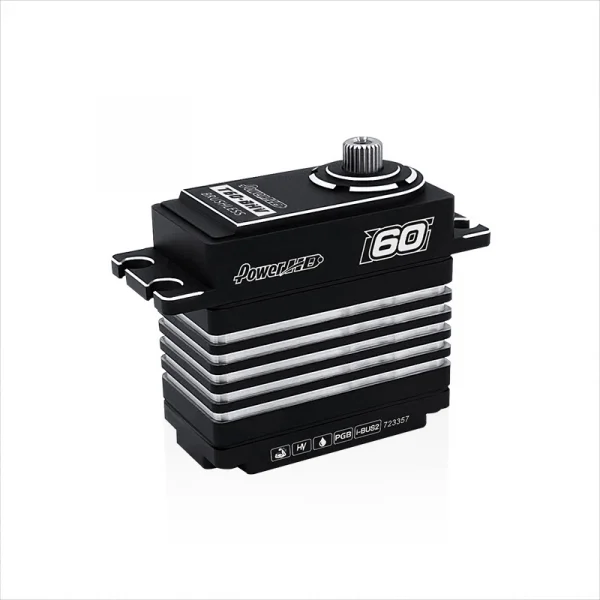

Power HD T60 Brushless HV Servo 60kg 0.08s

The Power HD Servo T60 Brushless Boitier Aluminium HV (HD-T60-BHV) delivers high torque and rapid transit times in a robust aluminium case. With a brushless motor, steel gears and dual ball bearings, it is engineered for reliable performance across a wide 6.0–8.4V operating range. At 8.4V it offers up to 60.0 kg-cm of torque with a swift 0.080 s speed, making it a strong choice where power and precision are required.

This HV servo balances strength and speed with durable internal components and a compact footprint. It maintains dependable operation from -10°C to 60°C and supports a broad working frequency, giving flexible setup options. Dimensions of 40.7 x 20.5 x 38.7 mm and a weight of 83 g suit a variety of installations where a solid, brushless HV servo is desired.

Key Specifications

• Part number: HD-T60-BHV
• Torque: 45.0 kg-cm (6.0V) / 50.0 kg-cm (7.4V) / 60.0 kg-cm (8.4V)
• Speed: 0.098 s (6.0V) / 0.089 s (7.4V) / 0.080 s (8.4V)
• Operating voltage: 6.0–8.4V DC
• Motor type: Brushless

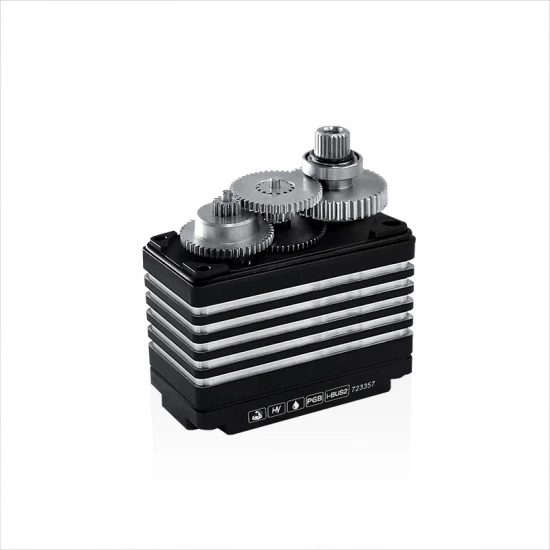

• Gear type: Steel
• Bearing: Dual ball bearings (x2)
• Case: Aluminium (boitier aluminium)
• Weight: 83 g (2.93 oz)
• Size: 40.7 x 20.5 x 38.7 mm (1.60 x 0.81 x 1.52 in)
• Operating temperature: -10°C to 60°C
• Working frequency: 1520 μs / 50–1500 Hz
• Suggested compatibility: iBus2 and program box

Designed to pair high torque with rapid response, the Power HD T60 brushless HV servo is suited to demanding RC control tasks where repeatable precision and sturdy construction are essential.
