Precision Aerobatics Nexatec 200Hv Servo AC-2377
Brand: Precision Aerobatics
Part No: AC-2377
Usually ships same day
Fits These Models (2)
Show all 2 models
Customers Also Buy
Popular with customers who buy products like the Precision Aerobatics Nexatec 200Hv Servo
Description

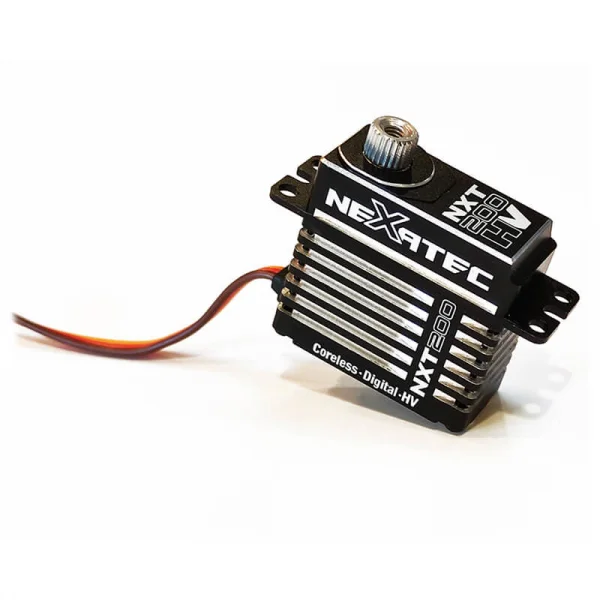

Precision Aerobatics Nexatec 200Hv Servo (AC-2377) is a digital, high-voltage mini servo designed for precise control in radio-controlled aircraft. The NXT-200HV servo uses a high-speed coreless motor, fully metal gears and dual ball bearings in a CNC-machined aluminium case. Its high-voltage operation supports use at 6.0V, 7.4V or 8.4V, while the digital processor is designed to deliver accurate response to transmitter inputs.
The servo combines a 25T output spline with high torque across its operating voltages. Torque increases from 11kg/cm at 6.0V to 13.8kg/cm at 7.4V and 15.1kg/cm at 8.4V. Response speed also increases with voltage, reaching 0.101 seconds per 60 degrees at 8.4V. Cooling ridges are incorporated into the aluminium case, and the metal-geared construction is intended for demanding control-surface applications.
Features
The Nexatec 200Hv uses a compact format while incorporating a metal case, metal gearing and dual ball bearings. Its coreless motor, digital electronics and high-voltage design provide the operating characteristics associated with the NXT-200HV generation. The case measures 18.0 x 28 x 12.6mm and the servo weighs 23.4g, making it suitable where equipment size and weight need to be considered.
Specifications
- Servo arm spline: 25T
- Torque at 6.0V: 11kg/cm
- Torque at 7.4V: 13.8kg/cm
- Torque at 8.4V: 15.1kg/cm
- Speed at 6.0V: 0.141sec/60°
- Speed at 7.4V: 0.116sec/60°
- Speed at 8.4V: 0.101sec/60°
- Dimensions and weight: 18.0 x 28 x 12.6mm; 23.4g
Secured by Stripe
Specifications
After many months in development, we are proud to present the next generation of servo technology, bringing a whole new level of performance and precision to our iPAs set up.
The New NXT-200HV servos were designed from the ground up to completely revolutionize mini servos – resulting in the most powerful, lightweight, fastest and most precise servo in its class. The NXT-200HV is a direct replacement (and a huge upgrade) to the successful NXT-100HV.
These servos will respond to every stick movement with zero delay resulting in an extremely responsive control surfaces performing exactly what you were aiming for, taking your flight to a level you have never experienced before.
With a BRUTAL holding torque, dual ball bearings, full metal CNC machined case and gears, newest generation digital processor, the tightest production tolerances possible and strict quality control – it is guaranteed to become the most popular servo in its class!!
In a long development process of design and engineering, static and in-flight testing, data analysis and re-testing we achieved the ultimate performance we aimed for and managed to raise the bar once again. After months in the process, we can guarantee – these servos tick all the boxes!
Even if you already own the NXT 100 – don’t miss out! when you upgrade from a previous generation you can truly appreciate the unparalleled torque, speed and precision these servos offer. You will be amazed how the very same aircraft feels in the air when equipped with the NXT-200HV.
Hands down, the NXT-200HV is the most powerful, lightweight, high-performance servo in its class.
Features- Highest torque in class.
- Full aluminium CNC machined case.
- Hyper cooling ridges.
- Digital.
- High Voltage.
- High speed.
- High precision.
- High performance coreless motor.
- Heavy duty Fully metal geared.
- Dual ball bearing.
- Super smooth and quiet.
Servo Arm Spline: 25T
Torque (6.0V): 152.76oz/in (11kg/cm)
Torque (7.4V): 191.64oz/in (13.8kg/cm)
Torque (8.4v): 209.70oz/in (15.1kg/cm)
Speed (6.0V): 0.141sec/60°
Speed (7.4V): 0.116sec/60°
Speed (8.4v): 0.101/60°
Dimensions: 0.71×1.10×0.50in (Mounting H x L x W): 18.0x28x12.6mm
Weight: 23.4g(0.83oz)
Key Info:
- Brand: Precision Aerobatics
- Part No: AC-2377
- Barcode: 5056135798881
- Fitment: Option Part
