Radient 20A G2 ESC / SBEC (2-4 Cell) - RDNE2024
Brand: Radient
Part No: RDNE2024
Expected Mon 30 Nov
Request Stock NotificationFinance options available at checkout.
Customers Also Buy
Popular with customers who buy products like the Radient 20A G2 ESC / SBEC (2-4 Cell)
Description
The Radient 20A G2 ESC / SBEC (2-4 Cell), part number RDNE2024, is a 32-bit programmable electronic speed controller with SBEC, designed for R/C fixed-wing aircraft powered by 2-4 cell batteries.
It uses a low heat generation MOSFET with high instant current capability, and a fast 32-bit microprocessor aims to give smooth start-up and accurate throttle linearity. Protection is built in for start-up, over-heating, low voltage, signal loss and phase loss. Radient states that it works with most motors on the market, including high-RPM types, which suggests wide motor compatibility.

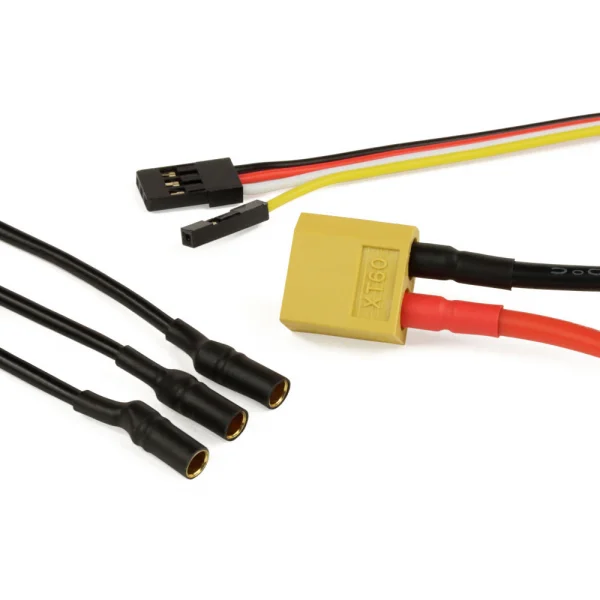

The controller arrives with an XT60 battery connector and bullet-style motor connectors already installed, so it is ready to wire into a suitable setup. Settings can be changed using an LCD programming card, which Radient offers as a more convenient way to adjust the ESC. It is intended for club pilots flying sport, aerobatic and scale aircraft.
Specifications
- Weight: 25 g
- Length: 60 mm
- Width: 25 mm
- Height: 10 mm
- Battery connector: XT60
Secured by Stripe
Radient 20A G2 ESC / SBEC (2-4 Cell) Manuals & Guides
Manuals & Guides
Specifications
Radient’s 32-bit programmable ESCs, each with multiple protections, super-smooth start-up and an ultra-reliable low heat generation MOSFET have been designed to comprehensively satisfy the needs of practically all R/C pilots no matter what they fly. Featuring an adjustable SBEC output voltage, the 40, 50, 60, 80 & 100A controllers offer the added benefit of maximising the voltage that drives your servos and, by virtue, the performance thereof. In addition to their high build quality, light weight and compact size, these feature-rich ESCs offer wide-ranging motor compatibility and are perfect for all club pilots who fly sport, aerobatic and scale aircraft and seek a trouble-free fit-and-forget solution to motor control.
Radient 20A G2 ESC / SBEC (2-4 Cell) Key Features:
- Low heat generation MOSFET with high instant current capability.
- Fast 32 bit microprocessor.
- Super-smooth start-up and accurate throttle linearity.
- Higher energy-saving qualities and efficiency.
- Adjustable SBEC output volts on 40, 50, 60, 80 & 100A ESCs.
- Start-up protection.
- Over-heat protection.
- Low-voltage protection.
- Signal loss & phase loss protection.
- Compatible with most motors on the market inc. high RPM.
- Programming via LCD ‘card’ for more convenient operation.
- Pre-installed XT60 battery connector.
- Pre-installed bullet-style motor connectors.
Radient 20A G2 ESC / SBEC (2-4 Cell) Tech Specs:
- Weight: 25g / 0.88oz
- Shipping Weight: 0.05kg / 0.11lbs
- Product Height: 10mm / 0.39in
- Product Width: 25mm / 0.98in
- Product Length: 60mm / 2.36in
- Application: R/C fixed-wing aircraft
- Connector: XT60
- Age Recommendation: 14+
- Colour: Array
- Compatible Battery Chemistry: L
Key Info:
- Brand: Radient
- Part No: RDNE2024
- Barcode: 5051121278507
