Description
The Radient 50A G2 ESC / SBEC (2-4 Cells), part number RDNE5024, is a programmable 32-bit electronic speed controller with an adjustable SBEC output, intended for R/C fixed-wing aircraft. It is one of Radient's G2 range, which also includes 40, 60, 80 and 100A versions, and it is designed for club pilots flying sport, aerobatic and scale models who want a fit-and-forget solution to motor control.
A fast 32-bit microprocessor and a low heat generation MOSFET with high instant current capability give smooth start-up and accurate throttle linearity. The controller is described as compatible with most motors on the market, including high-RPM types. Because the SBEC output voltage is adjustable, you can set the voltage that drives your servos to suit them. Protection covers start-up, over-heating, low voltage, signal loss and phase loss.

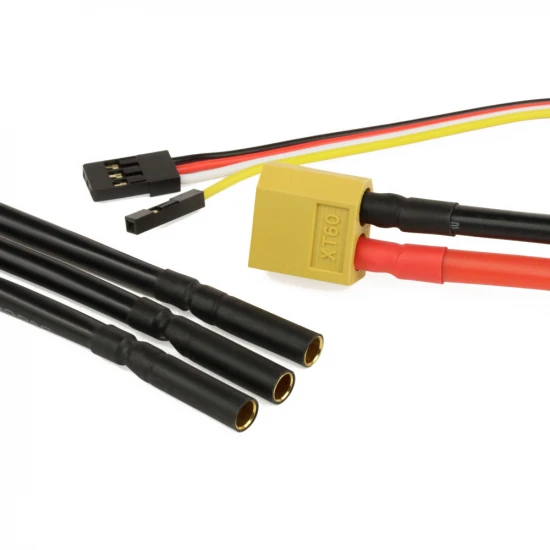

An XT60 battery connector and bullet-style motor connectors are already fitted. Settings are changed using an LCD programming card, which is a more convenient way to adjust the ESC than stick programming.
Specifications
- Cell count: 2-4 cells
- Battery connector: XT60
- Weight: 37 g
- Length: 68 mm
- Width: 25 mm
- Height: 10 mm
- Recommended age: 14+
Secured by Stripe
Radient 50A G2 ESC / SBEC (2-4 Cells) Manuals & Guides
Manuals & Guides
Specifications
Radient’s 32-bit programmable ESCs, each with multiple protections, super-smooth start-up and an ultra-reliable low heat generation MOSFET have been designed to comprehensively satisfy the needs of practically all R/C pilots no matter what they fly. Featuring an adjustable SBEC output voltage, the 40, 50, 60, 80 & 100A controllers offer the added benefit of maximising the voltage that drives your servos and, by virtue, the performance thereof. In addition to their high build quality, light weight and compact size, these feature-rich ESCs offer wide-ranging motor compatibility and are perfect for all club pilots who fly sport, aerobatic and scale aircraft and seek a trouble-free fit-and-forget solution to motor control.
Radient 50A G2 ESC / SBEC (2-4 Cells) Key Features:
- Low heat generation MOSFET with high instant current capability.
- Fast 32 bit microprocessor.
- Super-smooth start-up and accurate throttle linearity.
- Higher energy-saving qualities and efficiency.
- Adjustable SBEC output volts on 40, 50, 60, 80 & 100A ESCs.
- Start-up protection.
- Over-heat protection.
- Low-voltage protection.
- Signal loss & phase loss protection.
- Compatible with most motors on the market inc. high RPM.
- Programming via LCD ‘card’ for more convenient operation.
- Pre-installed XT60 battery connector.
- Pre-installed bullet-style motor connectors.
Radient 50A G2 ESC / SBEC (2-4 Cells) Tech Specs:
- Weight: 37g / 1.31oz
- Shipping Weight: 0.06kg / 0.14lbs
- Product Height: 10mm / 0.39in
- Product Width: 25mm / 0.98in
- Product Length: 68mm / 2.68in
- Application: R/C fixed-wing aircraft
- Connector: XT60
- Age Recommendation: 14+
- Colour: Array
- Compatible Battery Chemistry: L
Key Info:
- Brand: Radient
- Part No: RDNE5024
- Barcode: 5051121278538
