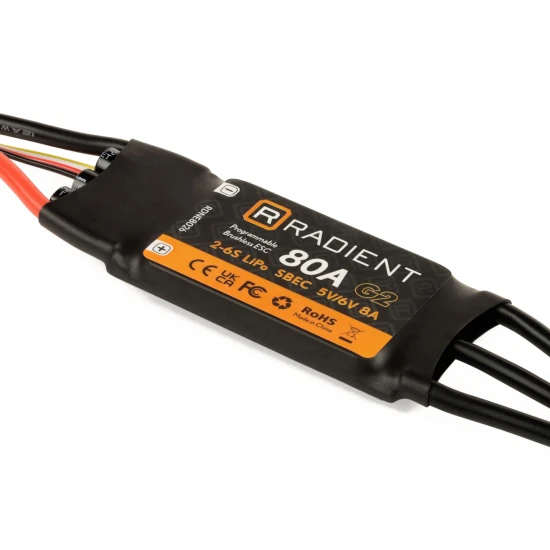

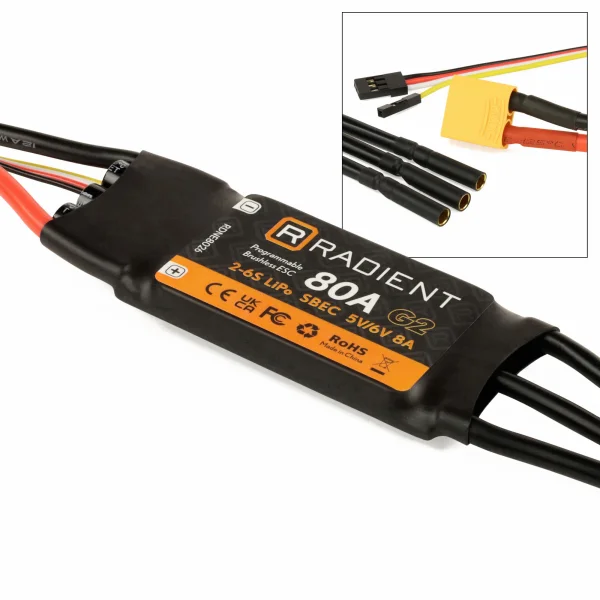

Radient 80A G2 ESC / SBEC (2-6 Cells)

Radient’s 32-bit programmable ESCs, each with multiple protections, super-smooth start-up and an ultra-reliable low heat generation MOSFET have been designed to comprehensively satisfy the needs of practically all R/C pilots no matter what they fly. Featuring an adjustable SBEC output voltage, the 40, 50, 60, 80 & 100A controllers offer the added benefit of maximising the voltage that drives your servos and, by virtue, the performance thereof. In addition to their high build quality, light weight and compact size, these feature-rich ESCs offer wide-ranging motor compatibility and are perfect for all club pilots who fly sport, aerobatic and scale aircraft and seek a trouble-free fit-and-forget solution to motor control.

Radient 80A G2 ESC / SBEC (2-6 Cells) Key Features:

• Low heat generation MOSFET with high instant current capability.
• Fast 32 bit microprocessor.
• Super-smooth start-up and accurate throttle linearity.
• Higher energy-saving qualities and efficiency.
• Adjustable SBEC output voltage on 40, 50, 60, 80 & 100A ESCs.
• Start-up protection.
• Over-heat protection.
• Low-voltage protection.
• Signal loss & phase loss protection.
• Compatible with most motors on the market inc. high RPM.
• Programming via LCD ‘card’ for easier and more convenient operation.
• Pre-installed XT90 battery connector.
• Pre-installed bullet-style motor connectors.

Manuals & Parts Explosions:

Radient 80A G2 ESC / SBEC (2-6 Cells) Tech Specs:

• Weight: 75g / 2.65oz
• Shipping Weight: 0.12kg / 0.25lbs
• Product Height: 10mm / 0.39in
• Product Width: 37mm / 1.46in
• Product Length: 90mm / 3.54in

• Application: R/C fixed-wing aircraft
• Connector: XT90
• Age Recommendation: 14+
• Colour: Array
• Compatible Battery Chemistry: L

• Brand: Radient
• Part No: RDNE8026
• Barcode: 5051121278552
