Radient Brushless Motor 2822 1600KV (2-3S) RDNM28221600
Brand: Radient
Part No: RDNM28221600
Expected Mon 30 Nov
Request Stock NotificationFinance options available at checkout.
Customers Also Buy
Popular with customers who buy products like the Radient Brushless Motor 2822 1600KV (2-3S)
Description
The Radient Brushless Motor 2822 1600KV (2-3S), part number RDNM28221600, is a brushless outrunner motor designed specifically for model aircraft and intended for use with 2S or 3S LiPo batteries.
It is built around a 14 pole, 12 slot rotor that is precision balanced for smooth running. The front and rear covers are 6061-T6 aluminium alloy, the windings are high purity copper, and the stator uses super-thin 0.2 mm laminations. A heavy-duty stainless steel shaft turns in oversized ABEC5 bearings, which Radient pairs with the balanced rotor to give long, trouble-free running and the ability to turn large propellers for a motor of this size.
The motor can be mounted from either end, and both a shaft prop drive and a can prop drive are supplied, so you can choose the arrangement that suits your airframe. Power is delivered through 3.5 mm bullet connectors. The suggested ESC is 20 A, and the suggested propellers are 8x4 or 9x6 on 2S, and 7x4 or 8x4 on 3S. The motor is black and carries an age recommendation of 14+.
What's Included
- 1x Radient brushless motor
- 1x Shaft prop drive
- 1x Can prop drive

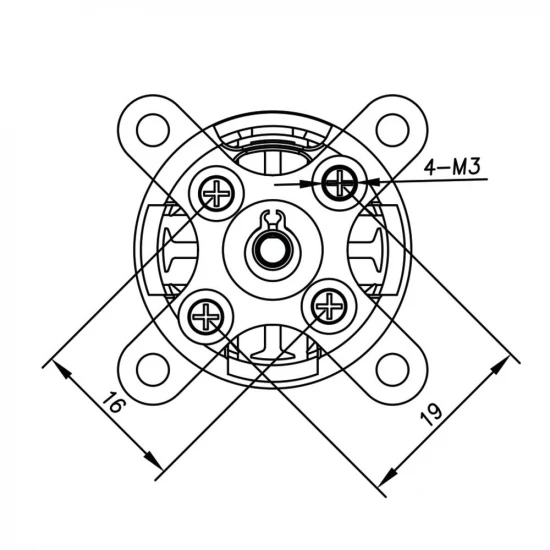

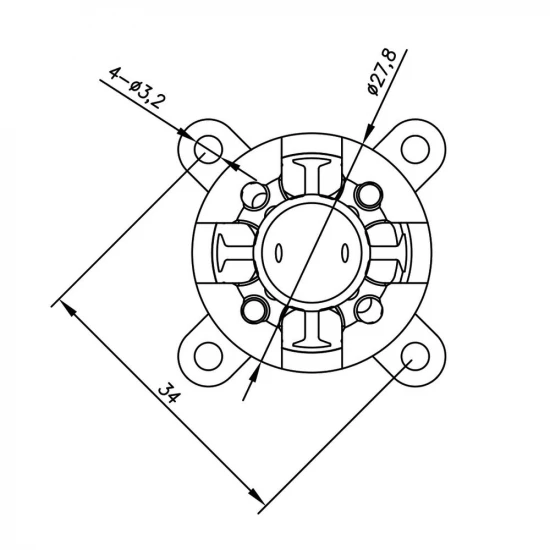

- 1x X-type mounting bracket
- 4x Short countersunk screws for the bracket
- 4x Long cap head screws for the can prop drive
Specifications
- Motor size: 2822, 1600KV
- Power: 180 W
- Suggested ESC: 20 A
- LiPo cells: 2-3S
- Shaft diameter: 3.0 mm
- Bullet connector: 3.5 mm
- Suggested propellers: 2S 8x4 / 9x6, 3S 7x4 / 8x4
Secured by Stripe
Radient Brushless Motor 2822 1600KV (2-3S) Manuals & Guides
Manuals & Guides
Specifications
Designed specifically for use in model aircraft, all Radient high-torque brushless motors feature a 14 pole precision-balanced rotor, 6061-T6 aluminium alloy front and rear covers, high purity copper windings and a heavy-duty stainless steel shaft. It's a combination that, in tandem with high-quality oversize bearings, offers beautifully smooth running, longevity and an ability to turn large propellers. With a mounting option at either end, Radient brushless outrunners are engineered to offer the flexibility and power you need over a long and trouble-free life.
table { font-family: Arial, sans-serif; border-collapse: collapse; width: 100%; font-size: 14px; } td, th { border: 1px solid #dddddd; text-align: left; padding: 8px; } tr:nth-child(even) { background-color: #f9f9f9; } th { background-color: #4CAF50; color: white; position: sticky; top: 0; } .series-row { background-color: #e2e2e2 !important; font-weight: bold; } Brushless Motor Specifications| 2822 1600KV | 180 | 20 | 2-3S | 3.0 | 3.5 | 30 | 2S: 8x4 / 9x6 | 3S: 7x4 / 8x4 |
| 2822 2300KV | 180 | 20 | 2-3S | 3.0 | 3.5 | 30 | 2S: 6x3 / 7x3.5 | 3S: 5x4 / 6x3 |
| 2826 1000KV | 220 | 20 | 2-3S | 3.0 | 3.5 | 45 | 2S: 10x6 / 11x6 | 3S: 9x6 / 10x5 |
| 2826 1300KV | 240 | 30 | 2-3S | 3.0 | 3.5 | 45 | 2S: 9x6 / 10x5 | 3S: 8x4 / 9x5 |
| 2826 1900KV | 250 | 30 | 2-3S | 3.0 | 3.5 | 45 | 2S: 8x4 / 9x5 | 3S: 7x4 / 8x4 |
| 2826 2200KV | 270 | 30 | 2-3S | 3.0 | 3.5 | 45 | 2S: 6x4 / 7x3 | 3S: 5x4 / 6x3 |
| 2830 1000KV | 260 | 30 | 2-3S | 3.0 | 3.5 | 57 | 2S: 10x6 / 11x5.5 | 3S: 9x6 / 10x5 |
| 2830 1300KV | 300 | 30 | 2-3S | 3.0 | 3.5 | 57 | 2S: 9x6 / 10x6 | 3S: 8x6 / 9x6 |
| 2836 880KV | 340 | 30 | 2-4S | 4.0 | 3.5 | 67 | 3S: 10x6 / 11x5.5 | 4S: 9x6 / 10x6 |
| 2836 1100KV | 380 | 30 | 2-4S | 4.0 | 3.5 | 67 | 3S: 9x6 / 10x6 | 4S: 8x6 / 9x6 |
| 2836 1200KV | 390 | 30 | 2-4S | 4.0 | 3.5 | 67 | 3S: 9x6 / 10x6 | 4S: 8x6 / 9x6 |
| 3530 1100KV | 310 | 50 | 2-4S | 4.0 | 3.5 | 109 | 3S: 10x6 / 11x5 | 4S: 9x6 / 10x6 |
| 3536 1050KV | 500 | 60 | 2-4S | 4.0 | 3.5 | 109 | 3S: 10x6 / 11x5 | 4S: 9x6 / 10x6 |
| 3536 1300KV | 680 | 60 | 2-4S | 4.0 | 3.5 | 109 | 3S: 9x6 / 10x6 | 4S: 8x6 / 9x5 |
| 3536 1500KV (E2K) | 750 | 80 | 2-4S | 4.0 | 3.5 | 109 | 3S: 8x6 / 9x5 | 4S: 8x4 / 8x5 |
| 3542 1000KV | 750 | 60 | 2-4S | 5.0 | 3.5 | 132 | 3S: 11x5 / 12x6 | 4S: 8x7 / 9x8 |
| 3542 1250KV | 850 | 80 | 2-4S | 5.0 | 3.5 | 132 | 3S: 9x6 / 10x5 | 4S: 8x4 / 9x5 |
| 3548 790KV | 840 | 80 | 2-4S | 5.0 | 3.5 | 172 | 3S: 11x7 / 13x6 | 4S: 9x7 / 10x8 |
| 3548 900KV | 1000 | 80 | 2-4S | 5.0 | 3.5 | 172 | 3S: 10x7 / 12x7 | 4S: 9x6 / 10x7 |
| 3548 1100KV | 1100 | 80 | 2-4S | 5.0 | 3.5 | 172 | 3S: 11x5.5 / 11x6 | 4S: 8x6 / 9x6 |
| 4250 800KV | 1250 | 80 | 2-5S | 5.0 | 4.0 | 205 | 3S: 13x6 / 14x7 | 5S: 12x8 / 13x7 |
| 4260 600KV | 1500 | 80 | 3-5S | 5.0 | 4.0 | 275 | 4S: 12x6 / 13x6 | 5S: 11x6 / 12x6 |
| 5045 720KV | 860 | 80 | 3-5S | 6.0 | 4.0 | 195 | 4S: 13x6 / 14x6 | 5S: 12x6 / 13x6 |
| 5055 570KV | 1550 | 80 | 4-6S | 6.0 | 4.0 | 275 | 4S: 14x7 / 15x6 | 6S: 13x6 / 14x5 |
| 5055 760KV | 1660 | 100 | 3-5S | 6.0 | 4.0 | 275 | 4S: 13x6 / 14x6 | 5S: 12x6 / 13x6 |
| 5065 335KV | 1660 | 100 | 4-7S | 6.0 | 4.0 | 375 | 6S: 18x8 / 19x7 | 7S: 17x7 / 18x6 |
| 5065 435KV | 1750 | 100 | 4-6S | 6.0 | 4.0 | 375 | 4S: 18x7 / 19x6 | 6S: 17x6 / 18x5 |
| 6354 200KV | 2210 | 100 | 4-10S | 8.0 | 4.0 | 480 | 8S: 19x12 / 22x12 | 10S: 18x12 / 20x10 |
Radient Brushless Motor 2822 1600KV (2-3S) Key Features:
- 14 Pole 12 slot hi-torque rotor.
- CNC-machined 6061-T6 billet heatsink can.
- High purity, maximum efficiency copper windings.
- High RPM ABEC5 oversized bearings.
- Precision balanced rotor offers smooth, reliable performance.
- Super-thin (0.2mm) stator laminations.
- Precision engineered for maximum energy conversion.
What's in the Box:
- 1x Radient high-torque brushless motor.
- 1x Shaft prop drive.
- 1x Can prop drive.
- 1x X-type mounting bracket.
- 4x Short countersunk screws for attaching the bracket to the motor.
- 4x Long cap head screws for can prop drive installation.
Radient Brushless Motor 2822 1600KV (2-3S) Tech Specs:
- Weight: 74g / 2.61oz
- Shipping Weight: 0.07kg / 0.16lbs
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Black
Key Info:
- Brand: Radient
- Part No: RDNM28221600
- Barcode: 5051121277944
