Popular with customers who buy products like the Radient Brushless Motor 2826 2200KV (2-3S)
Description
The Radient Brushless Motor 2826 2200KV (2-3S), part number RDNM28262200, is a high-torque brushless outrunner motor designed for use in model aircraft.

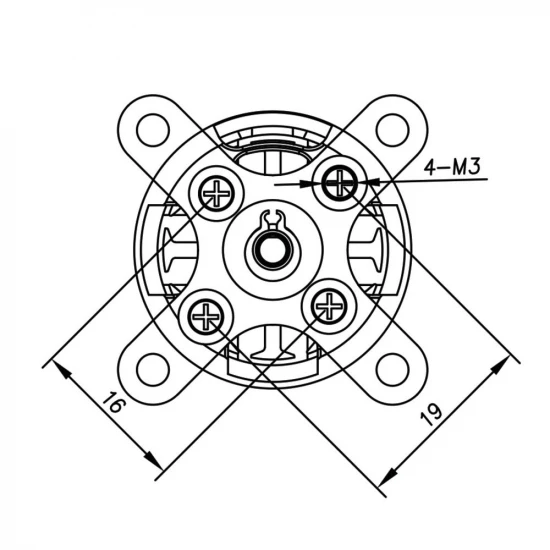

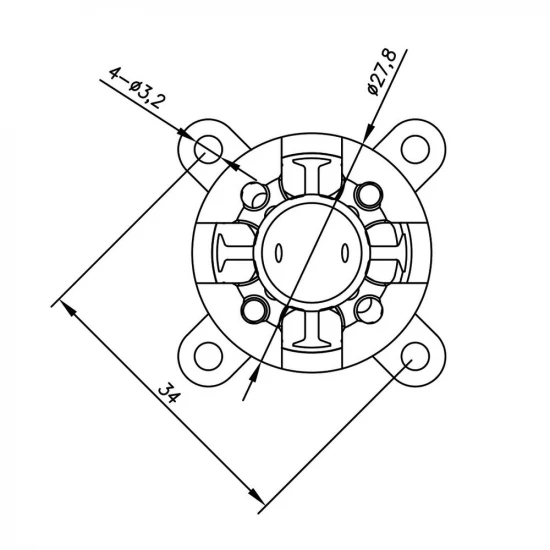

Inside, the motor has a precision-balanced 14-pole, 12-slot rotor, high purity copper windings and super-thin 0.2 mm stator laminations. The front and rear covers are 6061-T6 aluminium alloy, with the can CNC-machined from billet to act as a heatsink, and the shaft is stainless steel. Oversized ABEC5 bearings support the rotor, which Radient says gives smooth running and a long service life. A mounting option at either end means the motor can be fitted in more than one way, and both a shaft prop drive and a can prop drive are supplied.
This is the 2200KV version of the 2826 size, listed for 2-3S LiPo packs with a 30 A speed controller. The figures below are the manufacturer's recommendations, so check them against your airframe and battery before fitting. The motor is finished in black and is recommended for ages 14 and over.
Specifications
- Power: 270 W
- Recommended ESC: 30 A
- LiPo cells: 2-3S
- Shaft diameter: 3.0 mm
- Bullet connector: 3.5 mm
- Recommended props on 2S: 6x4 or 7x3
- Recommended props on 3S: 5x4 or 6x3
What's Included
- Radient brushless motor
- Shaft prop drive
- Can prop drive
- X-type mounting bracket
- 4 short countersunk screws for fixing the bracket to the motor
- 4 long cap head screws for installing the can prop drive
Secured by Stripe
Radient Brushless Motor 2826 2200KV (2-3S) Manuals & Guides
Manuals & Guides
Specifications
Designed specifically for use in model aircraft, all Radient high-torque brushless motors feature a 14 pole precision-balanced rotor, 6061-T6 aluminium alloy front and rear covers, high purity copper windings and a heavy-duty stainless steel shaft. It's a combination that, in tandem with high-quality oversize bearings, offers beautifully smooth running, longevity and an ability to turn large propellers. With a mounting option at either end, Radient brushless outrunners are engineered to offer the flexibility and power you need over a long and trouble-free life.
table { font-family: Arial, sans-serif; border-collapse: collapse; width: 100%; font-size: 14px; } td, th { border: 1px solid #dddddd; text-align: left; padding: 8px; } tr:nth-child(even) { background-color: #f9f9f9; } th { background-color: #4CAF50; color: white; position: sticky; top: 0; } .series-row { background-color: #e2e2e2 !important; font-weight: bold; } Brushless Motor Specifications| 2822 1600KV | 180 | 20 | 2-3S | 3.0 | 3.5 | 30 | 2S: 8x4 / 9x6 | 3S: 7x4 / 8x4 |
| 2822 2300KV | 180 | 20 | 2-3S | 3.0 | 3.5 | 30 | 2S: 6x3 / 7x3.5 | 3S: 5x4 / 6x3 |
| 2826 1000KV | 220 | 20 | 2-3S | 3.0 | 3.5 | 45 | 2S: 10x6 / 11x6 | 3S: 9x6 / 10x5 |
| 2826 1300KV | 240 | 30 | 2-3S | 3.0 | 3.5 | 45 | 2S: 9x6 / 10x5 | 3S: 8x4 / 9x5 |
| 2826 1900KV | 250 | 30 | 2-3S | 3.0 | 3.5 | 45 | 2S: 8x4 / 9x5 | 3S: 7x4 / 8x4 |
| 2826 2200KV | 270 | 30 | 2-3S | 3.0 | 3.5 | 45 | 2S: 6x4 / 7x3 | 3S: 5x4 / 6x3 |
| 2830 1000KV | 260 | 30 | 2-3S | 3.0 | 3.5 | 57 | 2S: 10x6 / 11x5.5 | 3S: 9x6 / 10x5 |
| 2830 1300KV | 300 | 30 | 2-3S | 3.0 | 3.5 | 57 | 2S: 9x6 / 10x6 | 3S: 8x6 / 9x6 |
| 2836 880KV | 340 | 30 | 2-4S | 4.0 | 3.5 | 67 | 3S: 10x6 / 11x5.5 | 4S: 9x6 / 10x6 |
| 2836 1100KV | 380 | 30 | 2-4S | 4.0 | 3.5 | 67 | 3S: 9x6 / 10x6 | 4S: 8x6 / 9x6 |
| 2836 1200KV | 390 | 30 | 2-4S | 4.0 | 3.5 | 67 | 3S: 9x6 / 10x6 | 4S: 8x6 / 9x6 |
| 3530 1100KV | 310 | 50 | 2-4S | 4.0 | 3.5 | 109 | 3S: 10x6 / 11x5 | 4S: 9x6 / 10x6 |
| 3536 1050KV | 500 | 60 | 2-4S | 4.0 | 3.5 | 109 | 3S: 10x6 / 11x5 | 4S: 9x6 / 10x6 |
| 3536 1300KV | 680 | 60 | 2-4S | 4.0 | 3.5 | 109 | 3S: 9x6 / 10x6 | 4S: 8x6 / 9x5 |
| 3536 1500KV (E2K) | 750 | 80 | 2-4S | 4.0 | 3.5 | 109 | 3S: 8x6 / 9x5 | 4S: 8x4 / 8x5 |
| 3542 1000KV | 750 | 60 | 2-4S | 5.0 | 3.5 | 132 | 3S: 11x5 / 12x6 | 4S: 8x7 / 9x8 |
| 3542 1250KV | 850 | 80 | 2-4S | 5.0 | 3.5 | 132 | 3S: 9x6 / 10x5 | 4S: 8x4 / 9x5 |
| 3548 790KV | 840 | 80 | 2-4S | 5.0 | 3.5 | 172 | 3S: 11x7 / 13x6 | 4S: 9x7 / 10x8 |
| 3548 900KV | 1000 | 80 | 2-4S | 5.0 | 3.5 | 172 | 3S: 10x7 / 12x7 | 4S: 9x6 / 10x7 |
| 3548 1100KV | 1100 | 80 | 2-4S | 5.0 | 3.5 | 172 | 3S: 11x5.5 / 11x6 | 4S: 8x6 / 9x6 |
| 4250 800KV | 1250 | 80 | 2-5S | 5.0 | 4.0 | 205 | 3S: 13x6 / 14x7 | 5S: 12x8 / 13x7 |
| 4260 600KV | 1500 | 80 | 3-5S | 5.0 | 4.0 | 275 | 4S: 12x6 / 13x6 | 5S: 11x6 / 12x6 |
| 5045 720KV | 860 | 80 | 3-5S | 6.0 | 4.0 | 195 | 4S: 13x6 / 14x6 | 5S: 12x6 / 13x6 |
| 5055 570KV | 1550 | 80 | 4-6S | 6.0 | 4.0 | 275 | 4S: 14x7 / 15x6 | 6S: 13x6 / 14x5 |
| 5055 760KV | 1660 | 100 | 3-5S | 6.0 | 4.0 | 275 | 4S: 13x6 / 14x6 | 5S: 12x6 / 13x6 |
| 5065 335KV | 1660 | 100 | 4-7S | 6.0 | 4.0 | 375 | 6S: 18x8 / 19x7 | 7S: 17x7 / 18x6 |
| 5065 435KV | 1750 | 100 | 4-6S | 6.0 | 4.0 | 375 | 4S: 18x7 / 19x6 | 6S: 17x6 / 18x5 |
| 6354 200KV | 2210 | 100 | 4-10S | 8.0 | 4.0 | 480 | 8S: 19x12 / 22x12 | 10S: 18x12 / 20x10 |
Radient Brushless Motor 2826 2200KV (2-3S) Key Features:
- 14 Pole 12 slot hi-torque rotor.
- CNC-machined 6061-T6 billet heatsink can.
- High purity, maximum efficiency copper windings.
- High RPM ABEC5 oversized bearings.
- Precision balanced rotor offers smooth, reliable performance.
- Super-thin (0.2mm) stator laminations.
- Precision engineered for maximum energy conversion.
What's in the Box:
- 1x Radient high-torque brushless motor.
- 1x Shaft prop drive.
- 1x Can prop drive.
- 1x X-type mounting bracket.
- 4x Short countersunk screws for attaching the bracket to the motor.
- 4x Long cap head screws for can prop drive installation.
Radient Brushless Motor 2826 2200KV (2-3S) Tech Specs:
- Weight: 86g / 3.03oz
- Shipping Weight: 0.09kg / 0.19lbs
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Black
Key Info:
- Brand: Radient
- Part No: RDNM28262200
- Barcode: 5051121277999
