Description

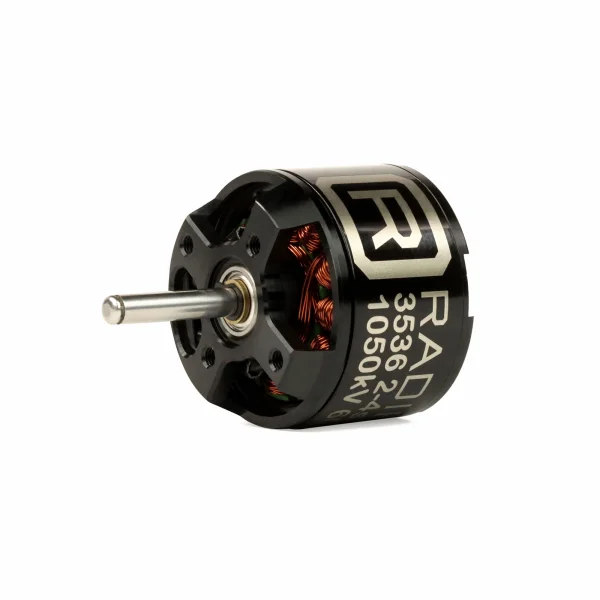

The Radient Brushless Motor 3536 1050KV (2-4S), part number RDNM35361050, is a high-torque brushless outrunner motor designed for use in model aircraft. It is intended for 2S to 4S LiPo power and is rated at 500 W.
The motor is built around a 14 pole, 12 slot rotor that is precision balanced for smooth running. Inside, the stator uses super-thin 0.2 mm laminations with high purity copper windings, while the can is a CNC-machined 6061-T6 aluminium heatsink. Oversized ABEC5 bearings and a stainless steel shaft support the rotor, and Radient says this combination suits large propellers and gives a long, trouble-free life. A mounting option is available at either end of the motor, which gives some flexibility when planning an installation.
Radient lists a 60 A speed controller as the recommended size. Its suggested propellers are 10x6 or 11x5 on 3S, and 9x6 or 10x6 on 4S. The motor is black, uses bullet connectors and carries an age recommendation of 14+.
Specifications
- Power: 500 W
- Recommended ESC: 60 A
- LiPo cells: 2-4S
- Shaft diameter: 4.0 mm
- Bullet connector: 3.5 mm
- Stator laminations: 0.2 mm
What's Included
- Radient high-torque brushless motor
- Shaft prop drive
- Can prop drive

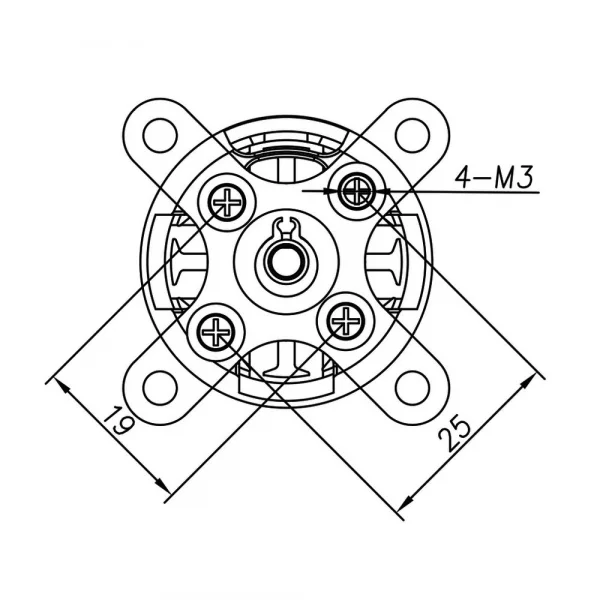

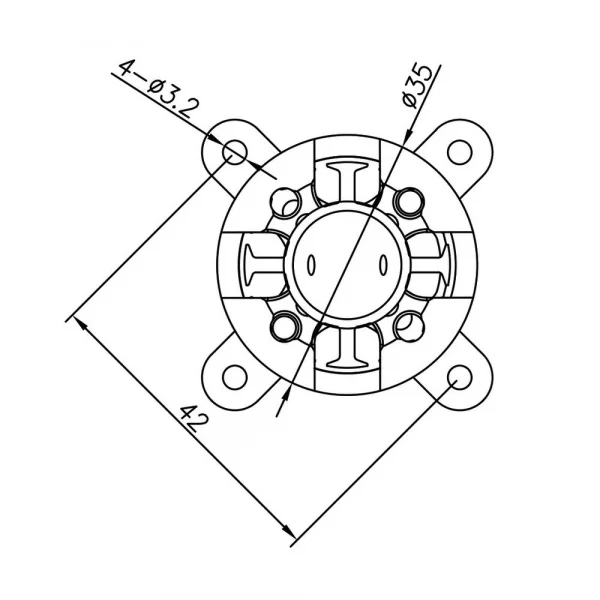

- X-type mounting bracket
- 4 short countersunk screws for fitting the bracket to the motor
- 4 long cap head screws for can prop drive installation
Secured by Stripe
Radient Brushless Motor 3536 1050KV (2-4S) Manuals & Guides
Manuals & Guides
Specifications
Designed specifically for use in model aircraft, all Radient high-torque brushless motors feature a 14 pole precision-balanced rotor, 6061-T6 aluminium alloy front and rear covers, high purity copper windings and a heavy-duty stainless steel shaft. It's a combination that, in tandem with high-quality oversize bearings, offers beautifully smooth running, longevity and an ability to turn large propellers. With a mounting option at either end, Radient brushless outrunners are engineered to offer the flexibility and power you need over a long and trouble-free life.
table { font-family: Arial, sans-serif; border-collapse: collapse; width: 100%; font-size: 14px; } td, th { border: 1px solid #dddddd; text-align: left; padding: 8px; } tr:nth-child(even) { background-color: #f9f9f9; } th { background-color: #4CAF50; color: white; position: sticky; top: 0; } .series-row { background-color: #e2e2e2 !important; font-weight: bold; } Brushless Motor Specifications| 2822 1600KV | 180 | 20 | 2-3S | 3.0 | 3.5 | 30 | 2S: 8x4 / 9x6 | 3S: 7x4 / 8x4 |
| 2822 2300KV | 180 | 20 | 2-3S | 3.0 | 3.5 | 30 | 2S: 6x3 / 7x3.5 | 3S: 5x4 / 6x3 |
| 2826 1000KV | 220 | 20 | 2-3S | 3.0 | 3.5 | 45 | 2S: 10x6 / 11x6 | 3S: 9x6 / 10x5 |
| 2826 1300KV | 240 | 30 | 2-3S | 3.0 | 3.5 | 45 | 2S: 9x6 / 10x5 | 3S: 8x4 / 9x5 |
| 2826 1900KV | 250 | 30 | 2-3S | 3.0 | 3.5 | 45 | 2S: 8x4 / 9x5 | 3S: 7x4 / 8x4 |
| 2826 2200KV | 270 | 30 | 2-3S | 3.0 | 3.5 | 45 | 2S: 6x4 / 7x3 | 3S: 5x4 / 6x3 |
| 2830 1000KV | 260 | 30 | 2-3S | 3.0 | 3.5 | 57 | 2S: 10x6 / 11x5.5 | 3S: 9x6 / 10x5 |
| 2830 1300KV | 300 | 30 | 2-3S | 3.0 | 3.5 | 57 | 2S: 9x6 / 10x6 | 3S: 8x6 / 9x6 |
| 2836 880KV | 340 | 30 | 2-4S | 4.0 | 3.5 | 67 | 3S: 10x6 / 11x5.5 | 4S: 9x6 / 10x6 |
| 2836 1100KV | 380 | 30 | 2-4S | 4.0 | 3.5 | 67 | 3S: 9x6 / 10x6 | 4S: 8x6 / 9x6 |
| 2836 1200KV | 390 | 30 | 2-4S | 4.0 | 3.5 | 67 | 3S: 9x6 / 10x6 | 4S: 8x6 / 9x6 |
| 3530 1100KV | 310 | 50 | 2-4S | 4.0 | 3.5 | 109 | 3S: 10x6 / 11x5 | 4S: 9x6 / 10x6 |
| 3536 1050KV | 500 | 60 | 2-4S | 4.0 | 3.5 | 109 | 3S: 10x6 / 11x5 | 4S: 9x6 / 10x6 |
| 3536 1300KV | 680 | 60 | 2-4S | 4.0 | 3.5 | 109 | 3S: 9x6 / 10x6 | 4S: 8x6 / 9x5 |
| 3536 1500KV (E2K) | 750 | 80 | 2-4S | 4.0 | 3.5 | 109 | 3S: 8x6 / 9x5 | 4S: 8x4 / 8x5 |
| 3542 1000KV | 750 | 60 | 2-4S | 5.0 | 3.5 | 132 | 3S: 11x5 / 12x6 | 4S: 8x7 / 9x8 |
| 3542 1250KV | 850 | 80 | 2-4S | 5.0 | 3.5 | 132 | 3S: 9x6 / 10x5 | 4S: 8x4 / 9x5 |
| 3548 790KV | 840 | 80 | 2-4S | 5.0 | 3.5 | 172 | 3S: 11x7 / 13x6 | 4S: 9x7 / 10x8 |
| 3548 900KV | 1000 | 80 | 2-4S | 5.0 | 3.5 | 172 | 3S: 10x7 / 12x7 | 4S: 9x6 / 10x7 |
| 3548 1100KV | 1100 | 80 | 2-4S | 5.0 | 3.5 | 172 | 3S: 11x5.5 / 11x6 | 4S: 8x6 / 9x6 |
| 4250 800KV | 1250 | 80 | 2-5S | 5.0 | 4.0 | 205 | 3S: 13x6 / 14x7 | 5S: 12x8 / 13x7 |
| 4260 600KV | 1500 | 80 | 3-5S | 5.0 | 4.0 | 275 | 4S: 12x6 / 13x6 | 5S: 11x6 / 12x6 |
| 5045 720KV | 860 | 80 | 3-5S | 6.0 | 4.0 | 195 | 4S: 13x6 / 14x6 | 5S: 12x6 / 13x6 |
| 5055 570KV | 1550 | 80 | 4-6S | 6.0 | 4.0 | 275 | 4S: 14x7 / 15x6 | 6S: 13x6 / 14x5 |
| 5055 760KV | 1660 | 100 | 3-5S | 6.0 | 4.0 | 275 | 4S: 13x6 / 14x6 | 5S: 12x6 / 13x6 |
| 5065 335KV | 1660 | 100 | 4-7S | 6.0 | 4.0 | 375 | 6S: 18x8 / 19x7 | 7S: 17x7 / 18x6 |
| 5065 435KV | 1750 | 100 | 4-6S | 6.0 | 4.0 | 375 | 4S: 18x7 / 19x6 | 6S: 17x6 / 18x5 |
| 6354 200KV | 2210 | 100 | 4-10S | 8.0 | 4.0 | 480 | 8S: 19x12 / 22x12 | 10S: 18x12 / 20x10 |
Radient Brushless Motor 3536 1050KV (2-4S) Key Features:
- 14 Pole 12 slot hi-torque rotor.
- CNC-machined 6061-T6 billet heatsink can.
- High purity, maximum efficiency copper windings.
- High RPM ABEC5 oversized bearings.
- Precision balanced rotor offers smooth, reliable performance.
- Super-thin (0.2mm) stator laminations.
- Precision engineered for maximum energy conversion.
What's in the Box:
- 1x Radient high-torque brushless motor.
- 1x Shaft prop drive.
- 1x Can prop drive.
- 1x X-type mounting bracket.
- 4x Short countersunk screws for attaching the bracket to the motor.
- 4x Long cap head screws for can prop drive installation.
Radient Brushless Motor 3536 1050KV (2-4S) Tech Specs:
- Weight: 165g / 5.82oz
- Shipping Weight: 0.17kg / 0.36lbs
- Connector: Bullet
- Age Recommendation: 14+
- Colour: Black
Key Info:
- Brand: Radient
- Part No: RDNM35361050
- Barcode: 5051121278064
